SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com 1. Application. The driver D-31M is designed for power supply of Mid-IR LEDs manufactured by IBSG. 2. Features. • The driver D-31M provides two modes of operation: Quasi Continuous Wave mode (the mode of maximum average optical power from the LED) and pulse mode (the mode of maximum peak optical power from the LED).

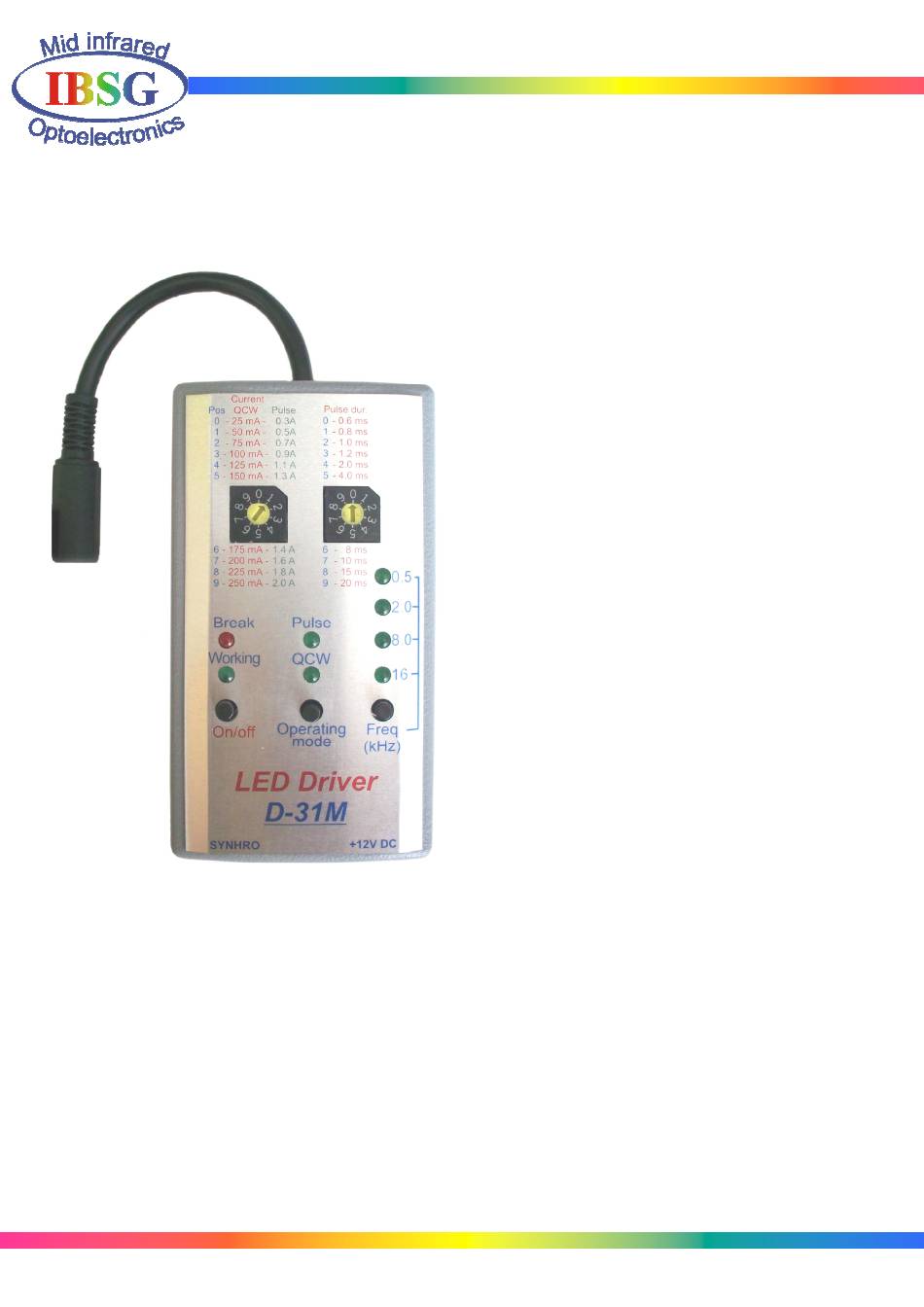

SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com 4. Appearance of the driver and its interface. Fig.1.Appearance of the driver and its interface. - 5 - SUNSTAR自动化 http://www.sensor-ic.com/ TEL: 0755-83376489 FAX:0755-83376182 E-MAIL:szss20@163.com...
Page 6
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com 1. The jack for the LED connection. 2. Lookup table of switch position and pulse duration. (The table for switch position correlation with pulse duration) 3. The multiposition switch for adjusting the pulse duration. 4. The indicators of selected frequency. 5.
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com 5. Mode description. Driver provides two modes of operation: Quasi Continuous Wave (quasi steady-state) mode and Pulse mode. 5.1. Quasi continuous wave mode – the oscillating mode of symmetrical unipolar meander (fig.2.). Such mode provides maximum average optical power from the LED.
Page 8
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com Note! Please, don’t use the combination of frequency and pulse duration that gives a duty cycle more than 10 percents (table 1). Note! We recommend to use the pulse current amount to 2 A only at pulse duration less than 1 µs Otherwise used LED can be broken.
LED case must be electrically isolated from the ground. 2. If necessary with the help of cable for synchronization connect the signal detector with the driver D-31M (jack “SYNCRO” (7)). Fig.5. The polarity of jackplug of cable for synchronization. 3. Insert the jackplug of cable of AC/DC adapter into connector "+12V DC" (6).
Page 10
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com а Fig.7. a – the button of mode selection, b – QCW mode, с – pulse mode. 5. Set the switch “Current” (12) to the position “0”, corresponding the minimum value of LED current. 6. Using the button “Freq” (5) select one of four values of frequency. In the case of working in the pulse mode select the requisite value of pulse duration by adjusting the switch “Pulse dur.”...
Page 11
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com а с Fig.9. a – the LED current is off, b – the Led current is on, с – the LED current is on, but the LED circuit is broken . 8. Please, ascertain that the running LED current complies with the LED specification.
SUNSTAR传感与控制 http://www.sensor-ic.com/ TEL:0755-83376549 FAX:0755-83376182 E-MAIL:szss20@163.com 7. Technical characteristics. Input voltage +12 V, stabilized Voltage tolerance -5..+5 % Power consumption Less then 4 W Adjustment temperature range -10 °С..+25 °С Board dimensions 90×50×25 mm Weight 90 g QCW mode Pulsed mode Pulse duration 31 –...
The DC / DC circuit is a pulse voltage converter from + 12 V in + 5 V, -5 V for power supply of all the elements of the D-31M. The input voltage of DC / DC converter supplies from “+12 VDC” jack.
