Au3Tech SC1000 User Manual

MCC3721H User's Quick Setup V1.02
WUHAN AU3TECH TRADING CO., LTD
Email: info@au3tech.com
Web: www.au3tech.com
1. Product Overview
SC1000 is a new generation CNC system software which is specially developed towards fiber
laser cutting field. It has enough external devices and powerful function.

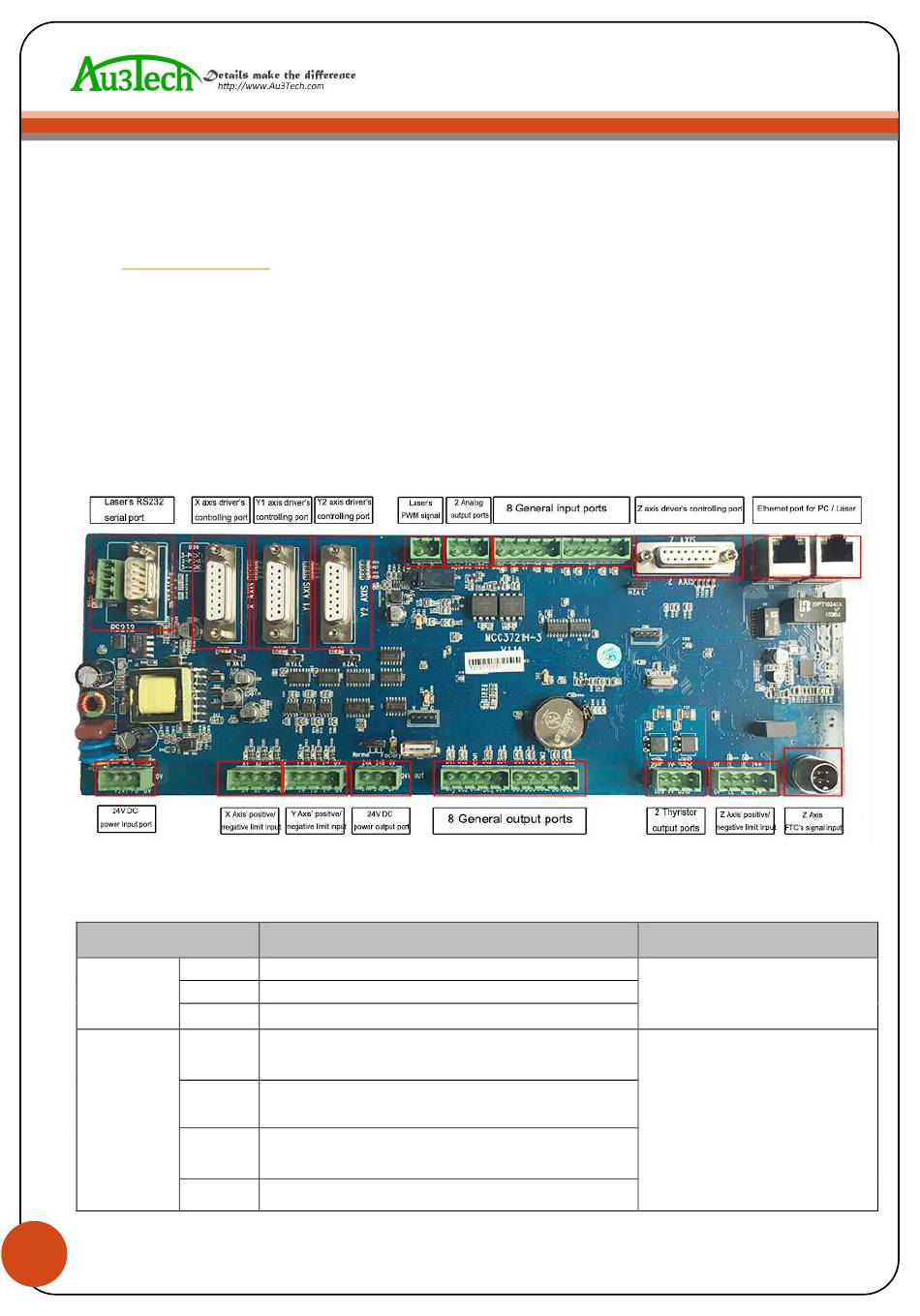

2. Wiring diagram of Motion control card MCC3721H.
The explanations of each port:
ports
Power +24V
input PG
0V
X/Y Axis'
X+
limit
input
X0
X-
0V
1
function
DC24V input + end
Protective ground
DC input - end，power GND
X Axis' positive limit input，special
signal，low-level propagation is effective.
X Axis' origin signal，special signal，low-
level propagation is effective.
X Axis' negative limit input，special
signal，low-level propagation is effective.
GND, X Axis' limit signal COM port
WUHAN AU3TECH TRADING CO., LTD
remark
Recommend to use DC
24V/10A power supply
X Axis' limit input
