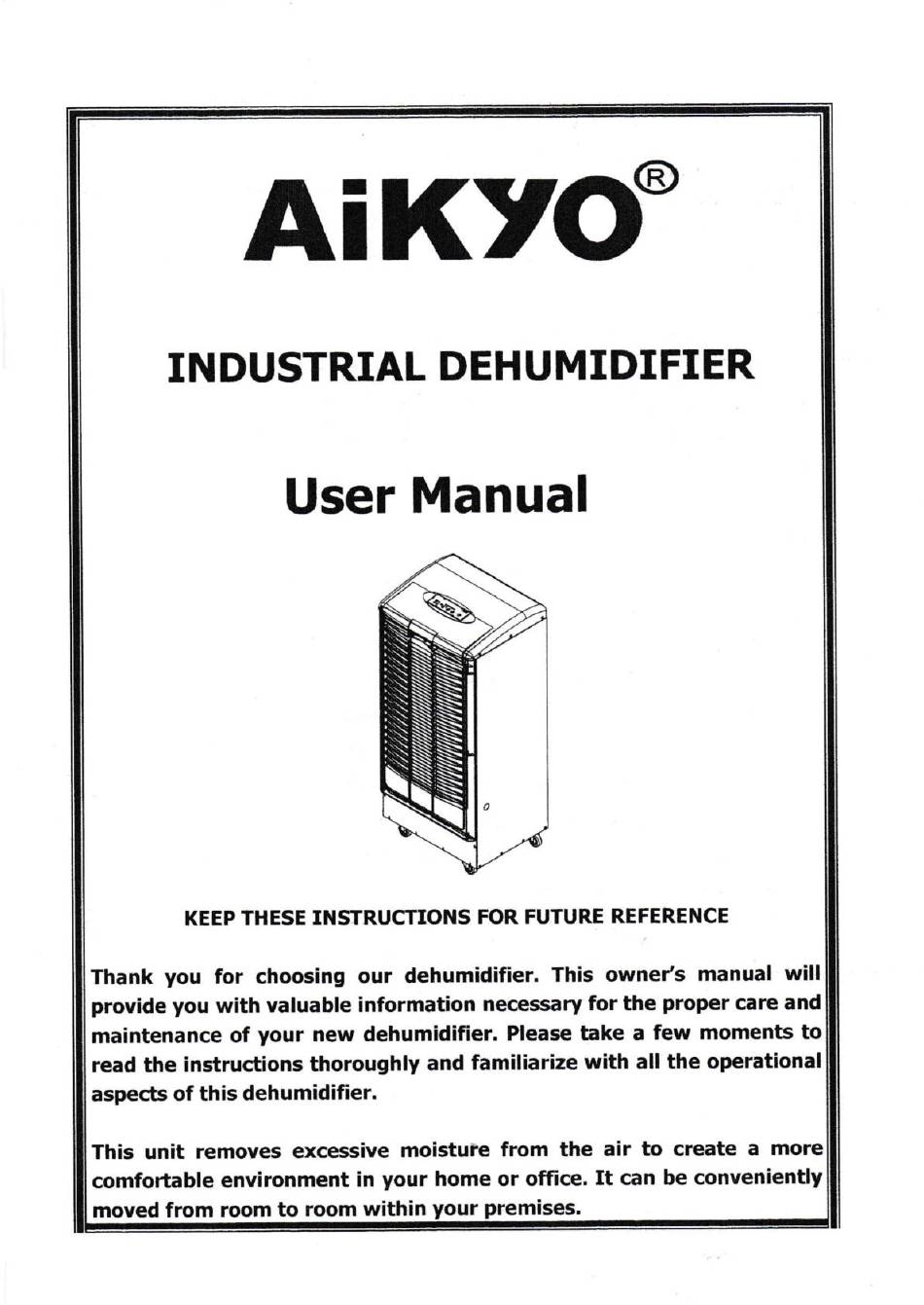

Aikyo AD-1500B User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AD-1500B and is the answer not in the manual?

Questions and answers

Summary of Contents for Aikyo AD-1500B

  • Page 3: Introduction To Product

    I. Important Notices for Safety Before application, please read all the instructions. - Before application, please confirm that the power supply is 220V/50Hz /1PH. Do not stop operation of the dehumidifier by pulling out the power cord. - Be careful with movement of dehumidifier and avoid rolling on and damaging the wire.
  • Page 4 IV. Operation instuction Button Function Button Description Turn on and turn off machine Press this button for once, and it enters the mode of setting humidity Press this button for successively twice, it enters the mode of preset start-up Press this button for three times, it enters the mode of preset stop Long press this button for four times, it exit the setting mode.
  • Page 5 normally. d. Water drain pipe to drain continuously, so the unit can work continuously. V. Start-up a. Press the "On/Off’ button for once, the LCD display is light. After all the displays are normal, the LCD displays current environment humidity and temperature; Setting of “humidity: press “...

  • Page 6: Safe Operation And Maintenance

    VII. Safe Operation and Maintenance Do not connect relay, extension cord or adaptor with this machine. Otherwise, fire, electric shock and heating can be caused. Do not place it near to equipments give heat such as furnace and heater. Otherwise, the resin may be melted and causes fire. Do not use this dehumidifier in places with direct sunlight or exposed to wind and rain.
  • Page 7 Otherwise fire or electric shock accident may be caused. VIII. Electrical wiring diagram IX. Unit Dimension...

  • Page 8: Operation Notices

    X. Operation Notices 1. When moving the machine. do not incline the machine for over 45° to avoid damaging the compressor. 2. Temperature for operation of this machine is 5-38oC 3. When it is operating, the compressor gives off heat when it works, and ambient temperature may raise by 1-3oC .
  • Page 9 XII. Common troubleshooting Failure Cause analysis Method Dehumidifier 1. Power cut 1. Recover the power cannot work 2. Power switch 2. Energize the power energized Power cord 3. Connect the power cord connected 4. Replace the fuse 4. Fuse is melted Dehumidification 1.
  • Page 10 XIII. Table of Parameters Model AD-1500B Power supply 220V/50Hz/1PH Dehumidify capacity 138 L/Day (30oC, 80%) Rated input power 1450 W Air Circulation 1300 m Compressor Aikyo Refrigerant/Charge R410A / 930g Suction pressure 2.5 MPa Discharge pressure 4.0 MPa Weight 52 kg...

  • Page 11: Warranty

    XIV. Warranty Thank you for choosing our dehumidifier. It will bring you great convenience on both work and life. If there is any failure, please contact our repair department or after-sale service center. We will offer you good consultancy and repair service. Warranty for the product purchased is one year since the day of purchase, for the compressor is three years.
