Summary of Contents for ROOFULL HDSW0032M1
- Page 1 User Manual 5 Port HDR HDMI Audio Extractor Model No. HDSW0032M1...

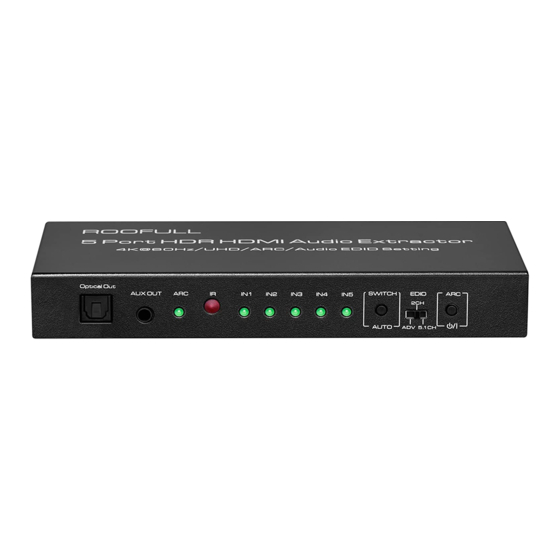

- Page 2 FEATURES OF THE INTERFACE: Picture 1.0 front panel view On/Off (Short press) & Power standby(Long press) Audio EDID mode switch Input Switch Short press) & (Long press) Automatic switch indicator Input channel-5 indicator Input channel-4 indicator Input channel-3 indicator Input channel-2 indicator Input channel-1 IR receiving window...
- Page 3 Picture 1.2 IR panel view and function introduction Remote Panel keys Functional description keys Power standby on/off button Press the Panel key more than 3 seconds to enter the standby mode Input source channel selection CH1~5 SWITCH Auto switch function enabled or disabled.
-
Page 4: Connection And Operation
Connection and operation: HDSW0032M1 Power Adaptor HDMI Cable HDMI Cable HDMI Cable HDMI Cable HDMI Cable HDMI Cable TV/Display DVD/BD/STB X5 Matters needing attention: 1. Before using ARC, make sure your TV HDMI port supports ARC and the arc have been turned on. - Page 5 Recommended All ports priority output the stereo audio in this mode. AUX output Priority output 5.1 channel bit stream in this mode. In this Recommended 5.1CH mode, AUX port may not have sound output because the Optical output format is not supported. 4.
-
Page 6: Specifications
SPECIFICATIONS: Model No. HDSW0032M1 Model name 5 Port HDR HDMI Audio Extractor Input channel HDMIx5, DCx1 Output channel HDMIx1, Opticalx1, AUXx1 480P/720P/1080P/2160P@60/50/30/25/24(Support1080P@120) Video format Supports HDR and Dolby Vision Deep color 8/10/12Bit@1080P, 8Bit@2160P Audio format Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM etc.
