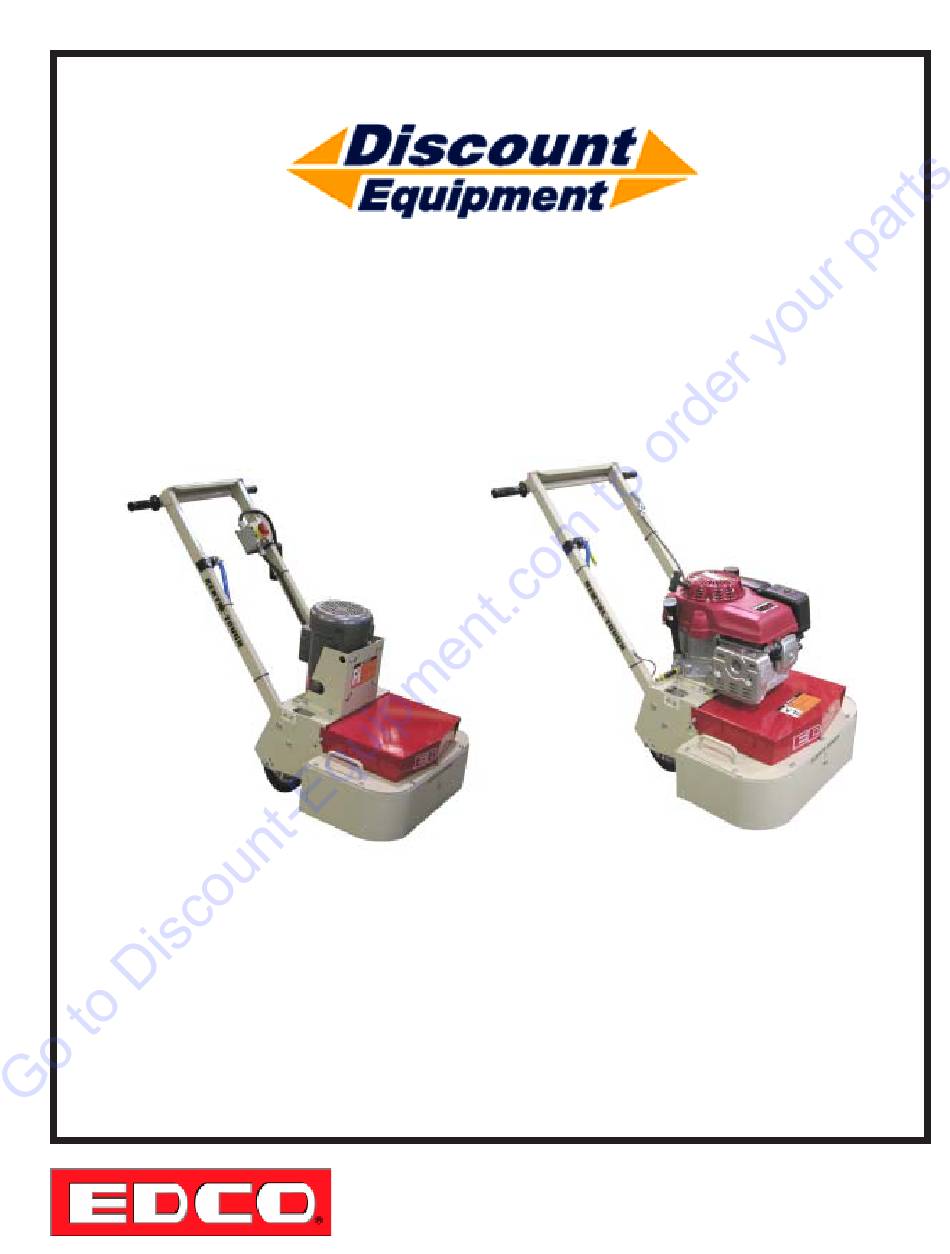

E-2ECGC-PL-0104

REVISED STARTING SERIAL # 23735

PARTS LIST MANUAL

MODEL 2-EC and 2-GC

Two-Disc Concrete Floor Grinder

Printed in USA

Page 1

Need help?

Do you have a question about the 2-EC and is the answer not in the manual?

Questions and answers

Summary of Contents for Discount Equipment 2-EC

Page 1 E-2ECGC-PL-0104 REVISED STARTING SERIAL # 23735 PARTS LIST MANUAL MODEL 2-EC and 2-GC Two-Disc Concrete Floor Grinder Printed in USA ©2004 Page 1...
Page 2 Discount-Equipment.com is your online resource for quality parts & equipment. Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Click on this link: http://www.discount-equipment.com/category/5443-parts/ choose one of the options to help get the right parts and equipment you are looking for.
Page 3 E-2ECGC-PL-0104 READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY BEFORE ATTEMPTING ! ! ! ! ! TO OPERATE THIS EQUIPMENT. Death or serious injury could occur if this machine is used improperly. SAFETY GASOLINE ! ! ! ! ! Powered Equipment MESSAGES •...
Page 4: Back Cover
E-2ECGC-PL-0104 PARTS LIST MANUAL EDCO MODELS 2-EC and 2-GC Section Page Number Safety Messages & General Instructions....... .
Page 5 E-2ECGC-PL-0104 ILLUSTRATION 1 : MAIN GROUPING SKIRT & VACUUM PORT PANEL, ITEMS 31 AND 42 ARE REVISED. 39 38 SELECT HERE FOR NEW STYLE WITH RUBBER SEALS AND REMOTE VACUUM PORT Printed in USA ©2004 Page 4...
Page 6 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING ITEM# PART# DESCRIPTION QTY. 74010 HANDLE BAR 61108 GRIP, HAND 1" MODEL SX 10029 SCREW, CAP 3/8-24 X 1-3/4 10025 WASHER, FLAT 3/8 10004 NUT, LOCK 3/8-24 77077 HOOD, GRINDER 10860 BOLT, TAP 1/4-20 X 1-1/4 10013 NUT 1/4-20...
Page 7 E-2ECGC-PL-0104 ILLUSTRATION 2 : MULTI-ACCESSORY DISC GROUPING #8888 DISC ASSEMBLY COMPLETE, RIGHT HAND (1 REQ’D.) #9999 DISC ASSEMBLY COMPLETE, LEFT HAND (1 REQ’D.) ITEM # PART# DESCRIPTION QTY. DISC, MULTI-ACCESSORY 77088 R.H. FOR #8888 ASSY. 77099 L.H. FOR #9999 ASSY. 77020 RING, HUB CARRIER, 6-HOLE 10112...
Page 8 E-2ECGC-PL-0104 ILLUSTRATION 3 : OPTIONAL PAD DRIVER DISC GROUPING MULTI ACCESSORY DISC ASSEMBLY (SEE ILLUSTRATION 2 FOR BREAKDOWN) ITEM # PART# DESCRIPTION QTY. 76040 PAD DRIVER DISC ASSEMBLY (INCLUDES ITEMS 2-5) 76042 HUB STUD, PAD DRIVER 76041 DISC ONLY 11", PAD DRIVER 10312 WASHER, FLAT 1/2 10304...
Page 9 E-2ECGC-PL-0104 ILLUSTRATION 4 : OPTIONAL SURFACER DISC GROUPING #2222 SURFACER DISC ASSEMBLY, RIGHT HAND (1 REQ’D) #3333 SURFACER DISC ASSEMBLY, LEFT HAND (1 REQ’D) ITEM# PART# DESCRIPTION ITEM# PART# DESCRIPTION QTY. DISC, SURFACER 77074 HOLDER, CUTTER SHAFT, SURFACER DISC 77122 R.H.
Page 10 E-2ECGC-PL-0104 ILLUSTRATION 5 : WATER VALVE GROUPING ITEM# PART# DESCRIPTION QTY. 56022A VALVE SUBASSY., w/ BRACKET (INCL. ITEMS 2-5) 56022 BRACKET, WATER VALVE 10711 VALVE, BALL 1/2 FPT 80021 CONN., SWIVEL FEMALE 3/4 HOSE x 1/2 MPT 10070 WASHER, HOSE 3/4 (INCLUDED W/ CONNECTOR) 10799 BARB ELBOW 90°...
Page 11 E-2ECGC-PL-0104 ILLUSTRATION 6 : ENGINE & BELT DRIVE GROUPING (5.5 HP) EFFECTIVE JUNE 2005 SERIAL NO. 24265 AND UP ALL GASOLINE ENGINES HAVE A MANUAL CHOKE CONTROL. SELECT HERE FOR PARTS LIST ADDENDUM FOR CHOKE KIT TO UPGRADE UNITS PRIOR TO SERIAL NO.
Page 12 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 6 : ENGINE & BELT DRIVE GROUPING (5.5 HP) ITEM# PART# DESCRIPTION QTY . 76020 ENGINE, HONDA 5.5 HP GXV160KN12 76023 MOUNT, ENGINE 10048 SCREW, CAP 5/16-24 X 3/4 10801 WASHER, LOCK 5/16 10342 SCREW, CAP 5/16-18 X 1-1/2 10025 WASHER, FLAT 3/8 10811...
Page 13 E-2ECGC-PL-0104 ILLUSTRATION 7 : ENGINE & BELT DRIVE GROUPING (11 HP) EFFECTIVE JUNE 2005 SERIAL NO. 24265 AND UP ALL GASOLINE ENGINES HAVE A MANUAL CHOKE CONTROL. SELECT HERE FOR PARTS LIST ADDENDUM FOR CHOKE KIT TO UPGRADE UNITS PRIOR TO SERIAL NO.
Page 14 Discount-Equipment.com is your online resource for quality parts & equipment. Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101 Need parts? Click on this link: http://www.discount-equipment.com/category/5443-parts/ choose one of the options to help get the right parts and equipment you are looking for.
Page 15 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 7 : ENGINE & BELT DRIVE GROUPING (11 HP) ITEM# PART# DESCRIPTION QTY. 76004 ENGINE, HONDA 11 HP GXV340K2-DX3 76023 MOUNT, ENGINE 10048 SCREW, CAP 5/16-24 X 3/4 10801 WASHER, LOCK 5/16 10606 SCREW, CAP 5/16-18 X 1-1/4 10213 WASHER, FLAT 5/16 10801...
Page 16 E-2ECGC-PL-0104 ILLUSTRATION 8 : PROPANE OPTION TO VACUUM NIPPLE BOTTOM OF CARBURETOR TO SPUD-IN ON CARBUETOR TO BEAM 50B REGULATOR Printed in USA ©2004 Page 14...
Page 17 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 8 : PROPANE OPTION ITEM# PART# DESCRIPTION QTY. 15012 ENGINE, HONDA 11. HP GXV340-DAP2 15126 STARTER KIT, ELECTRIC 120 VOLT AC 10031 SCREW, CAP 1/4-20 X 1 10602 WASHER, FLAT 1/4 10861 NUT, KEPS 1/4-20 77262 SCREW, CAP M6 X 1.0P X 18MM 10038...
Page 18 E-2ECGC-PL-0104 ILLUSTRATION 9 : MOTOR & BELT DRIVE GROUPING (1.5 & 2 HP) EFFECTIVE MARCH 2011 STARTING SERIAL # 110310069 SEE PARTS BULLETIN FOR MOTOR TYPE. CLICK HERE. Printed in USA ©2004 Page 16...
Page 19 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 9 : MOTOR & BELT DRIVE GROUPING (1.5&2 HP) ITEM# PART# DESCRIPTION QTY. MOTOR 16070 1.5HP-1 PHASE-60HZ-115/230V 1740RPM (REV. OCT. 2009) 16019 2.0HP-1 PHASE-50HZ-110/220V 1425RPM (EXPORT MODEL) 77037 MOUNT, MOTOR 10021 SCREW, CAP 3/8-24 X 1 10025 WASHER, FLAT 3/8 10811...
Page 21 E-2ECGC-PL-0104 PARTS LISTING - ILLUSTRATION 10 : MOTOR & BELT DRIVE GROUPING (3 HP) ITEM# PART# DESCRIPTION QTY. 16003 MOTOR, BALDOR 3HP-1PH 60HZ-230V 1725RPM 77037 MOUNT, MOTOR 10021 SCREW, CAP 3/8-24 X 1 10025 WASHER, FLAT 3/8 10811 WASHER, LOCK 3/8 10014 NUT 3/8-24 10802...
Page 22 AND REMOTE VACUUM PORT FOR DUAL DISC GRINDERS* PART# 77140 *NOTE: THIS KIT CAN BE USED TO UPGRADE ALL MODEL 2-EC OR 2-GC GRINDERS MANUFACTURED BETWEEN DEC. 1991 AND FEB. 2005. SINCE FEB. 2005 ALL PARTS ARE STANDARD ON THE GRINDERS. DEC. 2005 ITEM #16 WAS CHANGED FROM A 2”...
Page 23 E-MCK5H-PL-0605 MANUAL CHOKE KIT FOR HONDA GXV160 5.5 HP PART #15180 ITEM# PART# DESCRIPTION QTY. 10834 SCREW, CAP 1/4-20 X 1/2 91301 DECAL, CHOKE 5/8 X 5/8 15182 BRKT., CHOKE CONTROL 15186 WASHER, BELLEVILE .500 X.255 X.018 15181 LEVER, CHOKE CONTROL 10150 NUT, HEX NYLON LOCK 1/4-20 15184...
Page 24 E-MCK11H-PL-0605 MANUAL CHOKE KIT FOR HONDA GXV340 11 HP PART #15190 ITEM# PART# DESCRIPTION QTY. 15185 SCREW, MACHINE M6 X 16MM PHILLIP HD ------- BREAKAWAY VIEW OF ENGINE THROTTLE BRACKET (SHOWN FOR MOUNTING DETAIL) 10602 WASHER, FLAT 1/4 SAE 15187 WASHER, FIBER .75 X .25 X .093 15183 LEVER, CHOKE CONTROL...
Page 25 E-STRIPSERT-PL-0406 FLOOR GRINDER STRIP-SERT™ ACCESSORY TUNGSTEN CARBIDE SCRAPER REVISED APRIL 2006 STARTUP PACKS # A105 PACK FOR 1-DISC GRINDER INCLUDES: (3) 12400 ASSY. W/ PRO-TUNGSERT (3) 12402 EXTRA PRO-TUNGSERT (6) 12160 HARDWOOD WEDGE #A106 PACK FOR 2-DISC GRINDER INCLUDES: (6) 12400 ASSY. W/ PRO-TUNGSERT (1) 12407 PRO-TUNGSERT SIX-PACK (9) 12160 HARDWOOD WEDGE 1 1 1 1...
Page 26 SUPPLEMENT TO PARTS LIST MANUAL E-MTC-PB-0311 PARTS BULLETIN MOTOR TYPE ON 1.5 H.P. 1-PHASE ELECTRIC EQUIPMENT EFFECTIVE MARCH 2011, STARTING W/ S/N 110310069 On the following Equipment the Motor may be either Leeson Cat. No. 132189 or Baldor Spec. No. 36F57-385: 50100 2EC Concrete Floor Grinder 70500 CPM4 Scariﬁ...
