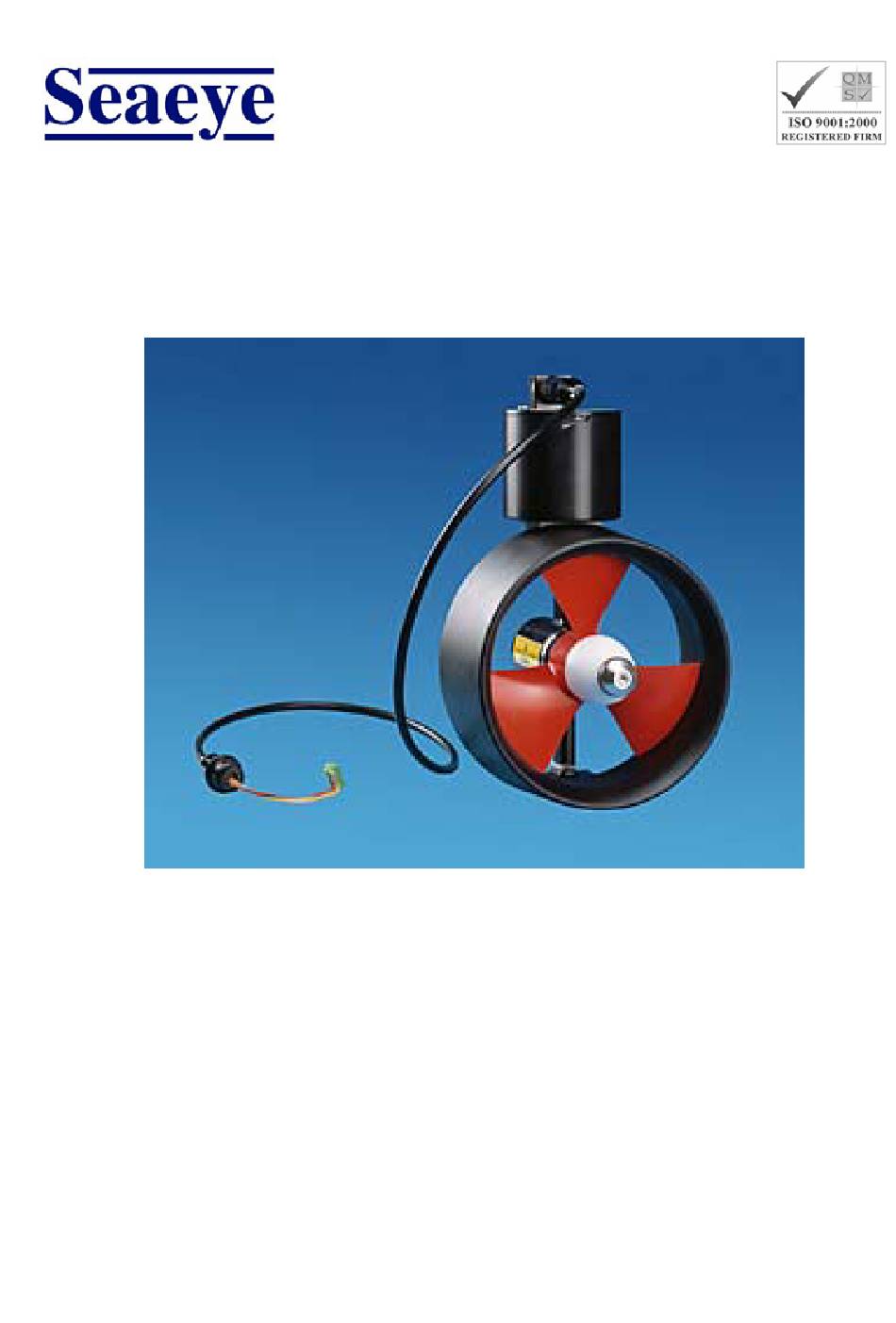

- Page 1 Thruster SI-MCT01 Instruction Manual Issue 7 © SEAEYE 2006 Unauthorised reproduction of this publication or any part thereof without prior permission is strictly prohibited...
- Page 2 THIS PAGE IS INTENTIONALLY BLANK...
- Page 3 Technical Manual must be adhered to. • The end user of (or authority responsible for) the installation of the SI-MCT01 becomes responsible for the complete installation's compliance with the...
-
Page 4: Warranty Statement
Subject to the exceptions and upon the conditions stated hereafter, SEAEYE agrees to correct, either by way of repair, or at SEAEYE’s sole discretion, by way of replacement, any defect of material or workmanship which develops as follows: •... - Page 5 SEAEYE as set forth previously), shall not be binding upon SEAEYE unless reduced to writing and approved by an officer of SEAEYE. SEAEYE’s liability arising from the sale or use of a product sold by SEAEYE shall be limited to SEAEYE’s cost of correcting defects, as provided herein, or the total cost of such product as shown on the purchase order pursuant to which it was purchased, whichever is less.
-
Page 6: General Information
SEAEYE. Repairs: If any fault develops, the following steps should be taken: • Notify SEAEYE and give full details of the difficulty. Include in this notification the model type and its serial number. On receipt of this information SEAEYE may elect to either issue service instructions or provide full shipping data for the return of the equipment. -
Page 7: Specifications
MCT01 into all manner of subsea applications from ROV and AUV propulsion to prime mover applications such as pumps. With simplicity and versatility in mind the SI-MCT01 can be controlled simultaneously with up to 128 similar nodes from a single serial port. - Page 8 Thruster SI-MCT01 Size = mm Ø220 Fig. 1. Dimensions Connection External Internal Pin 1 Brown Red/White +48/+24 V Pin 2 Yellow Telemetry A Pin 3 Orange Blue Telemetry B Pin 4 Yellow Black/Grey Pin 5 Green Green Earth Telemetry MUST be fused at:...
- Page 9 Thruster SI-MCT01 Fig. 2. Thruster Connection...
- Page 10 Thruster SI-MCT01 Seaeye Marine Thrusters - Electronics Explained The Thruster Control Loop To maintain constant speed under varying loads, Thrusters must operate within a closed loop control system. Open loop systems apply power to the motor in proportion to the operator demand.
-
Page 11: Node Configuration
Thruster SI-MCT01 SI-MCT01 Thruster Control Introduction This document details the telemetry specification for the SI-MCT01 Thruster. Node Configuration The network of nodes uses a Master/Slave configuration. The controller Input being the master and all other nodes are slaves. The master node initiates communication and the slave will then reply. -
Page 12: Number Of Characters
Thruster SI-MCT01 Field name Field Example Description width Character ID of thruster node. Lower case indicates surface to subsea, uppercase indicates subsea to surface. ADDRESS Address of node. Total of 35 different addresses for each type of node 0 to 9, then A to Z. - Page 13 Thruster SI-MCT01 The following table gives the various commands available for the MCT1 thruster. Data Function Reply Notes Command Value 0 to 100 Forward demand 0 to +100% 1 to 100 Reverse demand 0 to –100% Motor rpm (divide by 5...
-
Page 14: Communication Example
Thruster SI-MCT01 Control Notes The commands are in standard ASCII format, 1 Start, 8 Data, 1 Stop, 0 Parity, user selectable Baud Rate {57600 default) and the terminating character ‘\r’ is a single carriage return. To set either a new address or baud rate eeprom write must be enabled. The new address or baud rate will not take effect until the node is reset. - Page 15 Thruster SI-MCT01 Thrust Direction due to Demand The following diagram shows the direction of thruster travel depending on the demand given.
- Page 16 Thruster SI-MCT01 Maintenance - Thruster Propeller Replacement Frequency of Task The propeller should be checked before and after thruster useage. propeller should be replaced when there is obvious damage to propeller. Introduction The purpose of this check is to ensure that the thruster is working efficiently...
- Page 17 Thruster SI-MCT01 Proceed as follows: Visually examine the propeller to see if replacement is completely necessary. Fig. 5. Propeller Assembly Remove the socket head screw, spring washer and propeller retainer. Propeller Retainer Fig. 6. Retainer Parts The propeller assembly can now be removed; it may be difficult to remove...
- Page 18 Thruster SI-MCT01 Fig. 7. Propeller Assembly Removed The propeller assembly can now be dismantled, they are holes either side of the nose cone and one in the magnetic coupling, these can be used for the ‘C’ spanners to disassemble. Nose Cone...
- Page 19 Thruster SI-MCT01 When fitting the magnetic coupling to the nose cone, use Loctite 222 on the nose cone threads. Apply Loctite 222 Fig. 9. Propeller Fitment Use the ‘C’ spanners to tighten the assembly together. Apply a small amount of lubricating oil (Aqua Shield or similar) to the internal propeller bearing assembly.
- Page 22 © SEAEYE 2006 Document Number: SI-MCT01 – Issue 7 Unauthorised reproduction of this publication or any part thereof without prior permission is strictly prohibited...
