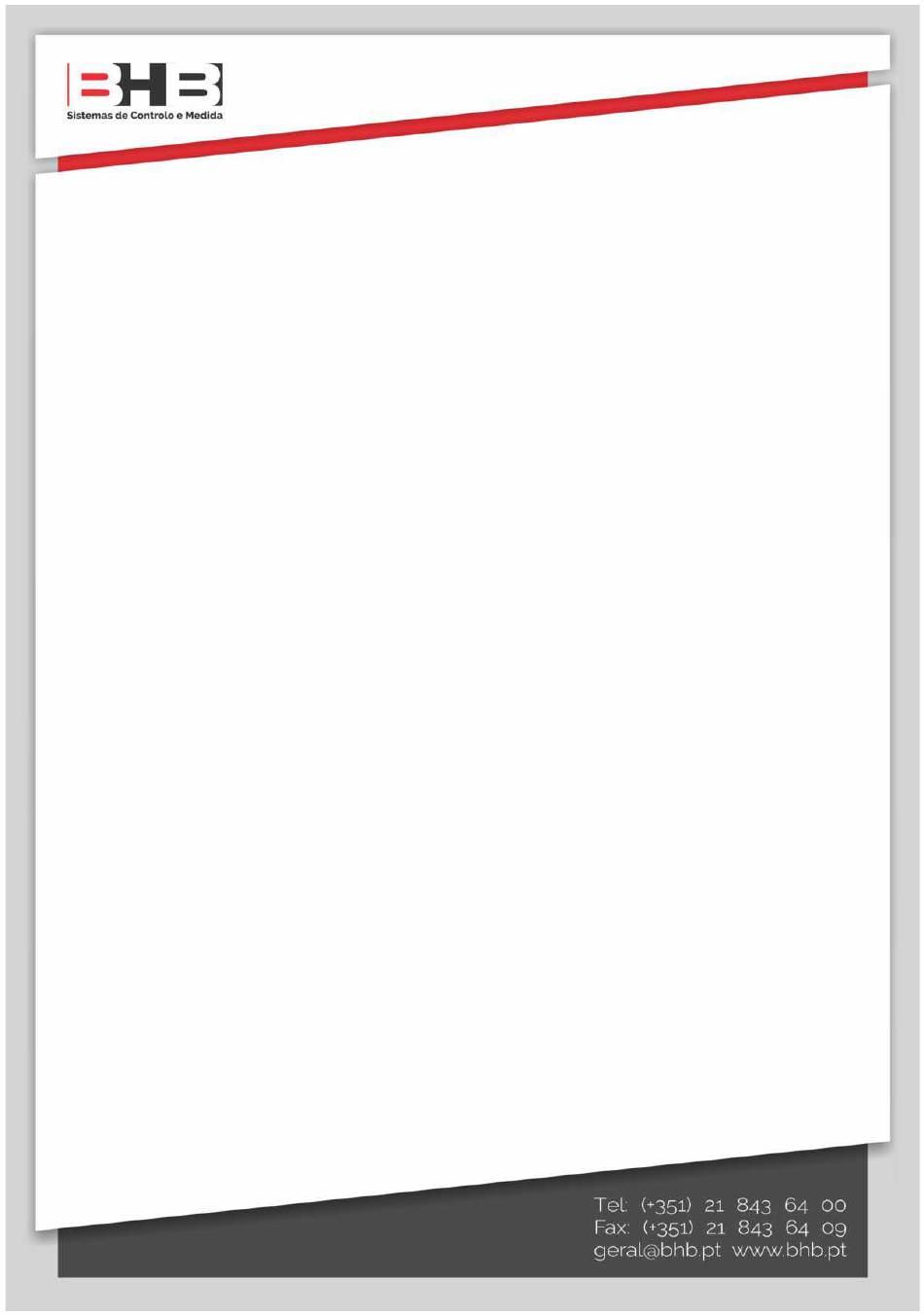

- Page 1 715 Portable MANUAL JUNHO 2013...
- Page 2 INSTRUCTION MANUAL 715 Portable Portable Sludge Blanket Detector...
-
Page 3: Table Of Contents
715 Portable – Instruction Manual Table of Contents 1 Introduction..........................4 2 Operation............................5 2.1 Operation Test........................5 2.2 Sludge Interface Detection....................5 2.3 Cleaning..........................5 2.4 Reeling Technique......................5 3 Configuration..........................6 3.1 Detection Point........................6 4 Technical Support........................7 4.1 Returning Equipment for Repair..................7 5 Technical Specification.......................8 5.1 General...........................8 5.2 Sensor..........................8 156770IM-Iss06 Issue Date 12/05/2010... -
Page 4: Introduction
715 Portable – Instruction Manual Introduction The 715 Portable Sludge Blanket Level Detector is designed for spot checking sludge interface levels in settling tanks. The 715 works by measuring the change in the level of suspended solids as the sensor is lowered into the tank. When the sensor reaches the sludge blanket, an audible signal changes from a fast bleeping to a slow bleeping. -
Page 5: Operation
715 Portable – Instruction Manual Operation The 715 is ready for operation once the power switch is moved to the ON position. Before using the 715 to determine the sludge interface position, it is worthwhile performing the operation test below. Operation Test The operation of the 715 can be quickly checked. -
Page 6: Configuration
715 Portable – Instruction Manual Configuration Detection Point The unit has an adjustable detection point, which is factory set to 50%. This has been found to be suitable for most applications and it is unusual for a user to need to adjust it. However if it is found necessary to make an adjustment, the following steps should be carried out. -
Page 7: Technical Support
715 Portable – Instruction Manual Technical Support Technical Support is available by phone, fax, or email, the details of which are shown below. Phone: +44 (0) 1726 879800 • Fax: +44 (0) 1726 879801 • Email: techsupport@partech.co.uk • Website: www.partech.co.uk •... -
Page 8: Technical Specification
715 Portable – Instruction Manual Technical Specification General Battery Type: ........9VDC (Alkaline Battery PP3) Battery Life........>200 Hours Operating Temperature Range..0 to 50 ° C Storage Temperature Range..-20 to +60 ° C Environmental Rating......IP65 Cable Type........4 core, polyurethane coated Standard Cable Length....10 metres Maximum Cable Length....15 metres Cable Marking.........Every Metre Weight..........1.2 Kg... - Page 9 P artec h (E lec tronic s ) Ltd C harles town, S t Aus tell, C ornwall P L25 3N N , UK...
