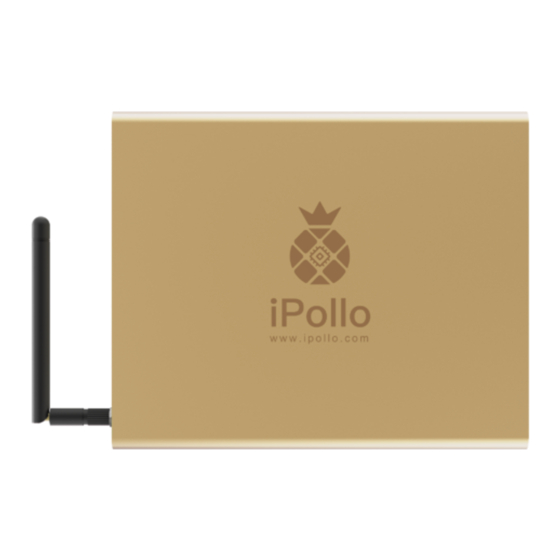

Summary of Contents for iPollo V1 mini Classic Series
- Page 1 V1 mini Classic Series Server Setup Manual...
- Page 2 V1 mini series server instruction manual V1 mini Classic Series have 4 models： （1）iPollo V1 mini Classic； （2）iPollo V1 mini Classic WiFi； （3）iPollo V1 mini Classic Plus； （4）iPollo V1 mini Classic Plus WiFi。 During use, only the network settings are different, and the versions are divided into WiFi version and wired connection version.
- Page 3 (3) Please check whether there is any abnormal sound on the server. If there is any abnormal sound, please contact our after-sales service. 2. After-sales contact information www.ipollo.com (1) Official Website: (2) Official Wechat Account：iPollo (3) Facebook：@iPolloGlobal (4) Twitter：@iPolloGlobal support@ipollo.com (5) E-mail：...
- Page 4 V1 mini series server instruction manual (3) Pay attention to dust and foreign matter, so as not to corrode the computing board or affect the heat dissipation of the server. (4) It is recommended to use Google browser or Firefox browser to browse the server background. (5) It is strictly forbidden to plug and unplug the power cable and signal cable under power.
- Page 5 V1 mini series server instruction manual Fault The fault warning light. In most cases, when this light flash, it indicates that a fault has occurred Normal Running indicator light. In most cases, when this light is on, it indicates that the machine is working normally Reset Server factory reset button...
- Page 6 V1 mini series server instruction manual Network interface Notes (1) In the process of running the server, please place it as shown in the picture below, that is, keep it flat to avoid any damage to the server. (2) The socket shall be installed near the server and shall be easily accessible. (3) The two 6PIN power ports must be connected at the same time before the supplying power.
- Page 7 Please insert the crystal head in place. After inserting it in place, you will usually hear a light “click” sound. (2-2) WiFi Connection The red box in the picture is the WiFi antenna ,WiFi signal can be connected, For details, please visit “ipollo.com/support”. - 7 -...
- Page 8 V1 mini series server instruction manual 2. Log in to the Server 2.1 Find the server IP After the server is powered on and connected to the Internet, it starts to start. After the server’s normal starts to light up, you can find the IP of the server. You can use the “show IP” software to find the server IP as follows: (1) Download software: http://www.nano.cn/download/ShowIP.exe...
- Page 9 V1 mini series server instruction manual 2.2 Enter the Server Backstage Management System (1) After finding the IP of the server, enter the obtained IP address in the browser (Google is recommended), press Enter to enter the server login interface, and enter the default administrator account and password: root (2) press “Login”...
- Page 10 V1 mini series server instruction manual 1 Fill in the Mining Pool Information Note: This manual takes the “antpool” as an example. ETC mining address: stratum+tcp:// 47.108.153.82:8008 （1）Select "Pool Configuration" and fill in the Mining Pool Information (1-1) The "Url" in "Mining Pool 1" is filled with the ETC AntPool mining link address: stratum+tcp:// 47.108.153.82:8008 (1-2) "Worker"...
- Page 11 “Pool 2” or "Pool 3” for normal operation when “Pool 1” goes offline. 3.2 Network Settings Regarding network connection, V1 mini Classic Series products are divided into two models: "wired connection" and "WiFi connection". You can set the server according to the corresponding model obtained by following the instructions below: 3.2.1 Wired connection...
- Page 12 V1 mini series server instruction manual After setting, click “SAVE&APPLY”, the system will save and automatically restart to take effect, and the server will start to run normally. End here, the configuration of the server has been completed, congratulations on your becoming a miner.
- Page 13 V1 mini series server instruction manual Note: The protocol information filled in "Network Configuration" in the figure (staic) is for reference only, please refer to the on-site network protocol information for details. WiFi connection 3.2.2 (1) After the V1 mini Classic WiFi server is powered on, it will send out the WiFi signal "iPollo_XXXXX";...
- Page 14 V1 mini series server instruction manual (4) Modify the SSID and corresponding password (please make sure there can be no errors, otherwise the server cannot connect to the correct network) (5) Click "Save and Apply" after editing - 14 -...
- Page 15 V1 mini series server instruction manual (6) After the application, the server needs to be powered off and restarted; (7) The laptop is connected to the wireless signal "Nano (the network of the environment where the computer belongs)" (8)Open the showIP tool, and press the "IP report" button of the server to obtain the new IP address of the server, which is the IP of the WiFi setting.
- Page 16 V1 mini series server instruction manual (9) Use Google Chrome, log in to the IP displayed by the above tool showIP, you can enter the server management background, and fill in the mining pool information to complete the server settings. 3.3 Login Password Modification If you need to change the server login password, the operation method is as follows: (1) The server is powered on and connected to the network;...
- Page 17 V1 mini series server instruction manual Note: The “Antpool” mining pool is used as an example above. If you use other mining pools, please modify it to the address of the mining pool you want to use and refer to the corresponding mining pool operation instructions.
-
Page 18: Important Notice
V1 mini series server instruction manual This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
