BVV BVV2CY Operation Manual

Refrigerant recovery pump

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

BVV Models BVV2CY & BVV4CY

Model BVV2CY

Only qualified personnel trained in the handling of flammable and non-flammable

refrigerants should operate this piece of equipment. Working with refrigerants under

pressure presents numerous safety risks and hazards.

ISA 12.12.01:2016 Ed.7

Nonincendive Electrical

Equipment For Use In Class I

and Ii, Division 2 and Class Iii,

Divisions 1 And 2 Hazardous

(Classified) Locations

Refrigerant Recovery Pump

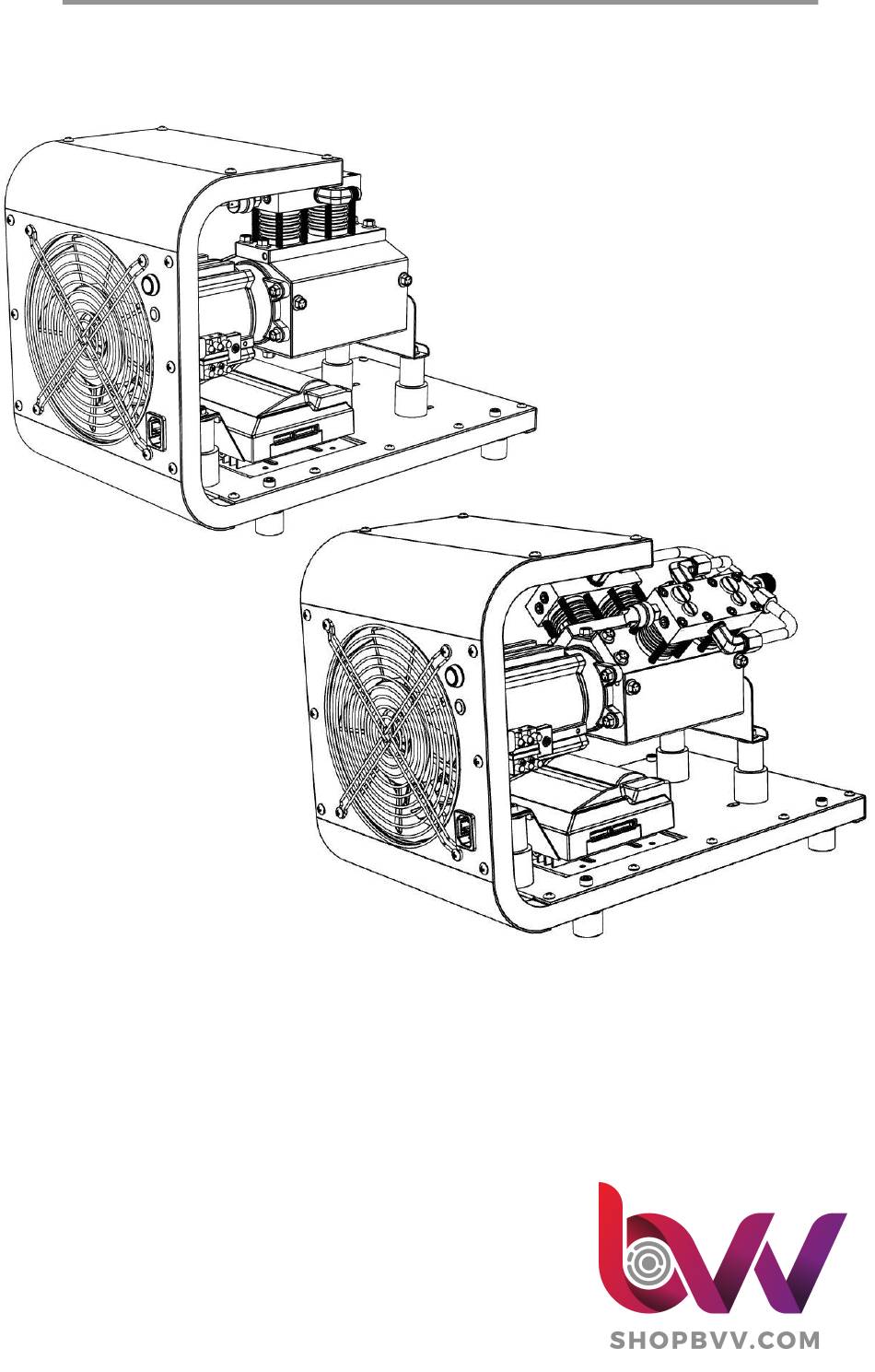

Operation Manual

Model BVV4CY

Table of Contents

Need help?

Do you have a question about the BVV2CY and is the answer not in the manual?

Questions and answers

Summary of Contents for BVV BVV2CY

Page 1 BVV Models BVV2CY & BVV4CY Refrigerant Recovery Pump Operation Manual Model BVV2CY Model BVV4CY Only qualified personnel trained in the handling of flammable and non-flammable refrigerants should operate this piece of equipment. Working with refrigerants under pressure presents numerous safety risks and hazards.
Page 2: Table Of Contents
Thank you for selecting the BVV model BVV2CY or BVV4CY. This unit has been designed to give the user fast, reliable and easy to use refrigerant recovery of Class A1, A2, A2L and A3 refrigerants used in the oil extraction markets. The unit's exclusive Oil-less Compressor utilizes a patent pending RKMAC GEN III piston design for longer life and easier seal placement.
Page 3: Safety Instructions
GENERAL SAFETY INSTRUCTIONS Please read, follow and understand the contents of this entire manual, with special attention given to Danger, Warning and Caution statements. FOR USE BY PROFESSIONALLY TRAINED AND CERTIFIED OPERATORS ONLY. MOST STATES, COUNTRIES, ETC., MAY REQUIRE USER TO BE LICENSED. PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY.
Page 4 GENERAL SAFETY INSTRUCTIONS FLAMMABLE REFRIGERANT SAFETY INSTRUCTIONS The following are additional safety recommendations when using this unit with flammable refrigerants. These instructions do not replace existing occupational hazardous procedures or other local, state and/or federal agency regulations. Technicians working with flammable refrigerants should have detailed knowledge and skills in handling flammable refrigerants, personal protective equipment, refrigerant leak prevention, handling of cylinders, leak detection &...
Page 5: Ref. Storage Cylinder Safety
REFRIGERANT STORAGE CYLINDER SAFETY Check with your federal and/or state regulations on the proper vessel to store refrigerant. In the USA DOT CFR 40 is required when filling and transporting refrigerant storage vessels. This unit is design to be used with 400 PSIG rated storage vessels. In the USA, this is denoted by a DOT rating of 4ABA400 or 4BW400.
Page 6: Specifications
SPECIFICATIONS Model BVV2CY BVV4CY 46-120 PSIG @ 105F Liquid Saturation AHRI740 Cat. II ex) R-124 ASHRAE Class A1 120-169 PSIG @ 105F Liquid Saturation AHRI740 Cat. III ASHRAE Class A1 ex) R134a 46-120 PSIG @ 105F Liquid Saturation AHRI740 Cat. II...
Page 7: Unit Layout

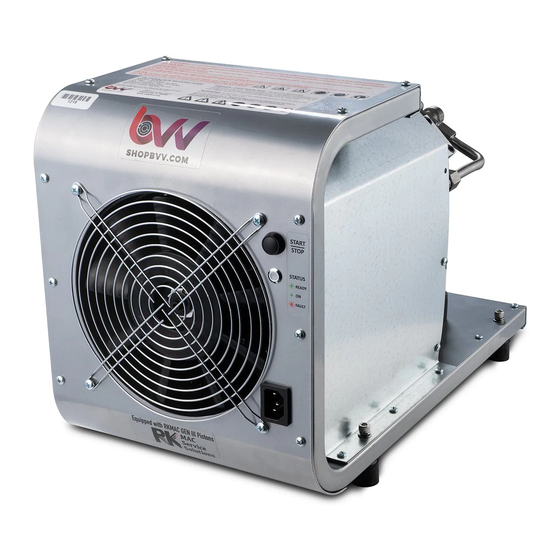

UNIT LAYOUT BVV2CY START/STOP button 2-CYL Comp. Module High Pressure Switch 3/8 JIC Discharge IEC Socket Port 3/8 JIC Inlet Port PCB Module START/STOP button BVV4CY High Pressure Switch 4-CYL Comp. Module 1/2 NPT Discharge IEC Socket Port 1/2 NPT...
Page 8: Unit Operation
OPERATION VAPOR RECOVERY The following are step by step instructions on how to operate the recovery unit in Direct Liquid or Vapor Recovery. 1. Place a Refrigerant Storage Tank on a scale to determine the current weight of the tank. DANGER: Make sure the recovery tank has enough capacity for the recovery process.
Page 9: Troubleshooting
TROUBLESHOOTING CHARTS PROBLEM POSSIBLE CAUSE SOLUTION Unit not properly plugged in or no Check power cord to ensure properly power at power source plugged into power source and IEC inlet Unit will not turn ON Defective Power Switch or PCB Replace defective electrical component Plugged Filter Check INLET port filter, Clean or replace...
Page 10: Electrical & Plumbing Diagrams
ELECTRICAL & PLUMBING SCHEMATICS PARTS LIST 1251 Frontenac Road, Ste 150 Naperville, IL 60563 - 10 -...

This manual is also suitable for:

Bvv4cy
