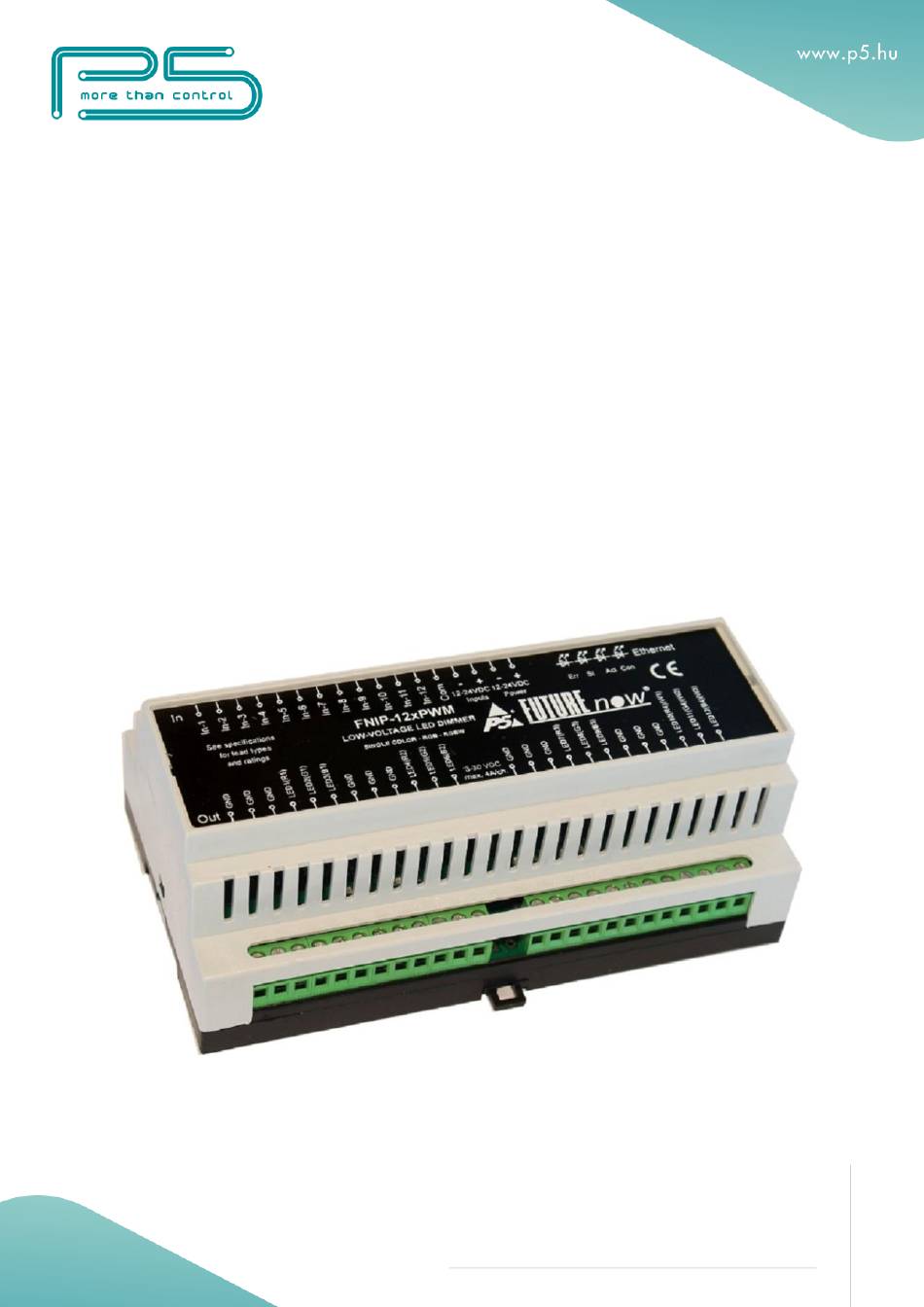

- Page 1 FutureNow FNIP-12xPWM Installation and Operation Manual rev 14.10.2020 12 Channel RGB(W) LED Dimmer /Surface and DIN Rail mountable/ Figure 1. The FNIP-12xPWM LED dimmer module P a g e...
- Page 2 OVERVIEW The FNIP-12xPWM is used for switching and dimming low voltage LED strips using the constant voltage PWM method. The outputs can be controlled via the local inputs and through the network using TCP/IP commands or the built-in web interface.
- Page 3 P a g e...
- Page 4 Main features Ideal for dimming single colour or RGB LED strips 12 outputs for switching and dimming 12 single colour, 4 RGB or 3 RGBW LEDs or low voltage halogens 12 galvanically isolated multi-purpose inputs for direct control or connecting digital sensors ...
-
Page 5: Table Of Contents
Table of Content INSTALLATION..............................6 Terminal connections ............................6 Wiring ................................. 7 Status LED Indicators ............................9 CONFIGURATION .............................. 11 Configuration via the web interface ........................11 Connecting to the web server of the module ....................11 Network settings ............................... 12 Users and user rights ............................ -
Page 6: Installation
INSTALLATION Terminal connections Each module has a wiring diagram on the front which can help the installer when connecting the modules at installation sites. 39 40 No. Description No. Description No. Description 14. - 27. Input 1 15. GND 28. Input 2 16. -
Page 7: Wiring
Wiring An example wiring diagram where two RGB and a single colour LED strips are controlled is shown in figure 3. In this example all the LED strips and the module are powered by separate power supplies. You can use the same power supply if you use same voltage LED strips and if it can supply enough power for all the LEDs and the module. - Page 8 Inputs: A pair of low or high voltage cables. The inputs use low voltage signals. Power requirements The module must be powered through terminals 42 and 43. by 10V - 36V DC In case the local inputs are used the inputs must also be powered by 10V - 36V DC across terminals 40-41.
-
Page 9: Status Led Indicators
Each input has a dedicated status LED that illuminates solid green when the corresponding input is activated. MCU live LED When on, indicates that the FNIP-12xPWM unit is running. Input power LED When on, indicates that the input power is present. - Page 10 Communication LEDs Con LED - green The Con LED is on when the module is connected to the Ethernet network. Act LED - yellow It indicates that communication via Ethernet is in progress. St LED - red It is illuminated while the boot loader is active and it is blinking during a firmware upload procedure.
-
Page 11: Configuration
You can also access the web interface of the module via an internet browser using the hostname of the module (FNIP-12xPWM by default) or its IP address. Once you are connected, you will be asked to identify yourself, as seen in Figure Figure 5. -
Page 12: Network Settings
You will be logged in as an administrator with access to all settings and functions. Once logged in, you will automatically be directed to the Control page. You can use the tabs on the top of the screen to navigate between the different control and configuration pages. - Page 13 Figure 6. Network configuration page 13 | P a g e...
-
Page 14: Users And User Rights
Users and user rights Three different users can be defined each with three different user rights: admin, actor and observer. Admins have access to all functions, including control of the outputs, monitoring the status of the inputs and outputs and changing all the settings. Actors are allowed to control the outputs and monitor the status of the inputs and the outputs, but are not allowed to change any settings. -
Page 15: Channel Settings
Channel settings On the Channel page the outputs and inputs can be renamed. Operation and input modes can also be chosen here. The input mode determines the logical connection between the input and the output of the same channel. For details on possible Error! Reference source not found. -
Page 16: Dim Settings
Output 1,2,3 – individual outputs or R1,G1,B1 Output 4,5,6 – individual outputs or R2,G2,B2 Output 7,8,9 – individual outputs or R3,G3,B3 Output 10,11,12 – individual outputs or R4,G4,B4 or W1,W2,W3 where W1,W2,W3 are the white channels of RGB LEDs on outputs 1,2,3 4,5,6, 7,8,9 respectively if RGBW LED strips are used. - Page 17 Minimum level: Some load types cannot be dimmed down all the way to zero. They cut off at some point and show some strange behavior (flickering or pulsing) below that dim level. Light bulbs also need a minimum dim level to produce visible light. Setting the minimum level slightly above these cut-off points makes these loads dimmable all the way down more smoothly.
-
Page 18: Scenes
Scenes Scenes are predefined states of the outputs on the module. FNIP scenes can be used in standalone applications without any third-party controller. FNIP modules (module groups) support 9 scenes. If a module receives a Scene Activation Command (SAC), the designated outputs will go to the defined state. -
Page 19: Firmware Upgrade
On the Firmware page click browse and find the new firmware on your PC. The latest firmware versions are always downloadable from P5’s website. Then click Upload. The St LED turns on and stays on or blinks during firmware update. After uploading the new firmware –... -
Page 20: Operation
OPERATION Operation via local inputs The inputs can be activated by shorting or opening (depending on the settings of the Channel Settings) an input terminal and the input common terminal. Throughout this section it is assumed that momentary switches are connected to the local inputs. -
Page 21: Input Modes
Input modes The inputs are factory defaulted to toggle mode and can be changed via the web interface or by TCP/IP commands. The input modes work as follows. 1. Independent inputs Inputs can be detached from their corresponding outputs, in which case they will have no direct effect on them. -
Page 22: Scene No
6. Scene on open mode If an input gets opened the Scene Activation Command assigned to the input on the channel configuration page will be executed. 7. Scene on close mode If an input gets closed the Scene Activation Command assigned to the input on the channel configuration page will be executed. -
Page 23: Operation Via The Built-In Web Server
Operation via the built-in web server Control page Single colour mode The outputs can be controlled on this page. Clicking the Channel icon will toggle, moving the slider will dim the outputs. A grey status icon means that the output is off. - Page 24 RGB and RGBW modes In this figure the first three channels are in RGB mode, while channels 7, 8, 9, 12 are in RGBW mode. You can adjust the colours by dragging the R,G,B sliders, or by using the colour picker.
- Page 25 The colour picker appears as this: You can choose the desired colour by clicking on the circle. Use the slider to set the luminance. 25 | P a g e...
- Page 26 Input status page The status of the local inputs is displayed on the Input status page. A grey icon means that the corresponding input is inactive (input circuit open). An active input (input circuit closed) is indicated by a green icon. 26 | P a g e...
-
Page 27: Operation Via The Local Network (Tcp)
Control4 Crestron Savant Extron Neets Software modules/plug-ins for the above controllers are available or P5 will provide full assistance in creating them. Android and iOS applications are also available. 27 | P a g e... -
Page 28: Contact Details
EN 55016-2-3:2010, EN 55022:2010/AC:2011, EN 61000-4-3:2006/A1:2008/A2:2010 EN 61000-4-6:2009, EN 61000-4-4:2005/A1:2010, EN 61000-4-2:2009 CONTACT DETAILS REFERENCES FNIP Discovery Tool FNIP Search Utility: (Registration needed on www.P5.hu) FNIP TCP Communication Protocol Description (Please send an email to support@p5.hu CONTACT DETAILS support@p5.hu http://p5.hu/index.php/support/contact-technical-support...
