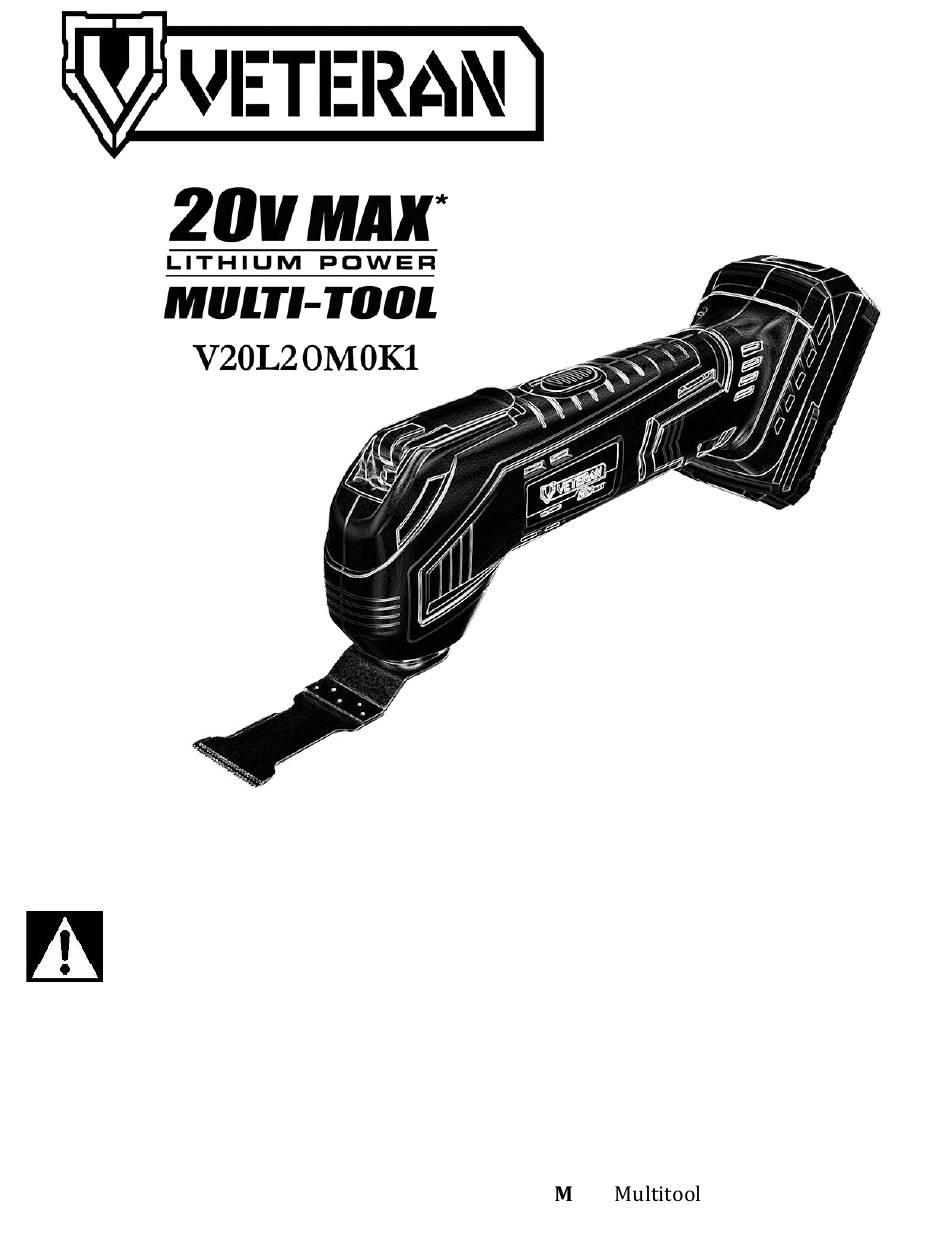

Please read the complete user manual before use.
WARNING Read all safety warnings and instructions. Failure to follow all warnings
and instructions may result in electric shock, fire and/or serious injury.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DANGER: Do not allow any liquid to come into contact with the charger. If the battery pack is
cracked or damaged in any other way, do not insert it in the charging base. There is a danger of
electric shock or electrocution.
The term "power tool" in this manual refers to the V20L2O 0K1
, Battery and Charger.
Advertisement
Table of Contents
Summary of Contents for VETERAN V20L20M0K1
- Page 1 Please read the complete user manual before use. WARNING Read all safety warnings and instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. DANGER: Do not allow any liquid to come into contact with the charger. If the battery pack is cracked or damaged in any other way, do not insert it in the charging base.
- Page 2 GENERAL POWER TOOL SAFETY, USE AND CARE Work area safety Visibility is key -- keep work area clean and well lit. Cluttered and dark areas invite accidents. Proper protective gear (safety goggles/glasses, etc.) is required when using this tool. Do not operate in the presence of flammable liquids, gasses, or dust. The operation of power tools creates sparks which may ignite the dust or fumes, creating a potentially explosive atmosphere.
- Page 3 General Power tool use and care Do not force the power tool. Use the correct power for your application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 4 SPECIAL SAFETY INSTRUCTIONS for Lithium Ion Battery Packs o Always charge the battery when the temperature is between 18-24°C (32°F to 113°F). Do not charge the battery pack when the temperature is below 0°C (32°F), or above 40°C (113°F) This is important. Failure to observe this safety rule could cause serious damage to the battery pack.
-
Page 5: Product Specification
PRODUCT SPECIFICATION Voltage: 20V DC MAX Speed n 11,000-21,000min Vibration: 4.851m/s , K=1.5m/s A weighted sound pressure level: LpA: 79.2dB(A) ; KpA=3dB(A) A weighted sound power level: LwA: 90.2dB(A) ; KwA=3dB(A) The machine is intended for sanding, sawing, scraping and cutting on wood, plasterboard, soft plastics and metals. WARNING. - Page 6 Ensure that you have removed foreign objects such as nails and screws from the workpiece before commencing sanding. Don’t use it for wet sanding, for dry sanding only. Do not scrape wet or dampened materials (e.g. wallpaper) or on moist surfaces. Penetration of water into the machine increases the risk of an electric shock.
-
Page 7: Additional Safety Instructions For Batteries And Chargers
ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Use only batteries and chargers applicable for this machine. BATTERIES • Never attempt to open for any reason. • Do not store in locations where the temperature may exceed 105 °F. • Charge only at ambient temperatures between 40 °F and 105 °F. •... - Page 8 SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
-
Page 9: Operation
OPERATION BATTERY CHARGER The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job. - Page 10 FUNCTIONS ATTACHING THE APPLICATION TOOL CAUTION: For all work or when changing application tools, disconnect the battery pack from power tool and always wear protective gloves. The sharp edges of the application tools will cause personal injury. Application tools can be very hot while working.
-
Page 11: Variable Speed Control
period, and then switch on the tool. The burr will form a non-slip bond with the outer edge of the sand paper felt. This will avoid premature wear. If one point has become worn, pull off the sandpaper, turn it 120°... -
Page 12: Cleaning And Maintenance
• Flush cutting blades are intended to make precise cuts to allow for installation of flooring or wall material. When flush cutting, it is important not to force the tool during the plunge cut. If you experience a strong vibration in your hand during the plunge cut, this indicates that you are applying too much pressure. - Page 13 Quick-release lever Sanding paper On/off switch Scraper Release button(battery pack) Plunge cut blade Battery pack Sanding base...
