Aquacoustics amigo-crew Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Home of the
amigo
amigo-crew
a Rescue Device for
In-water Crew
amigo-crew

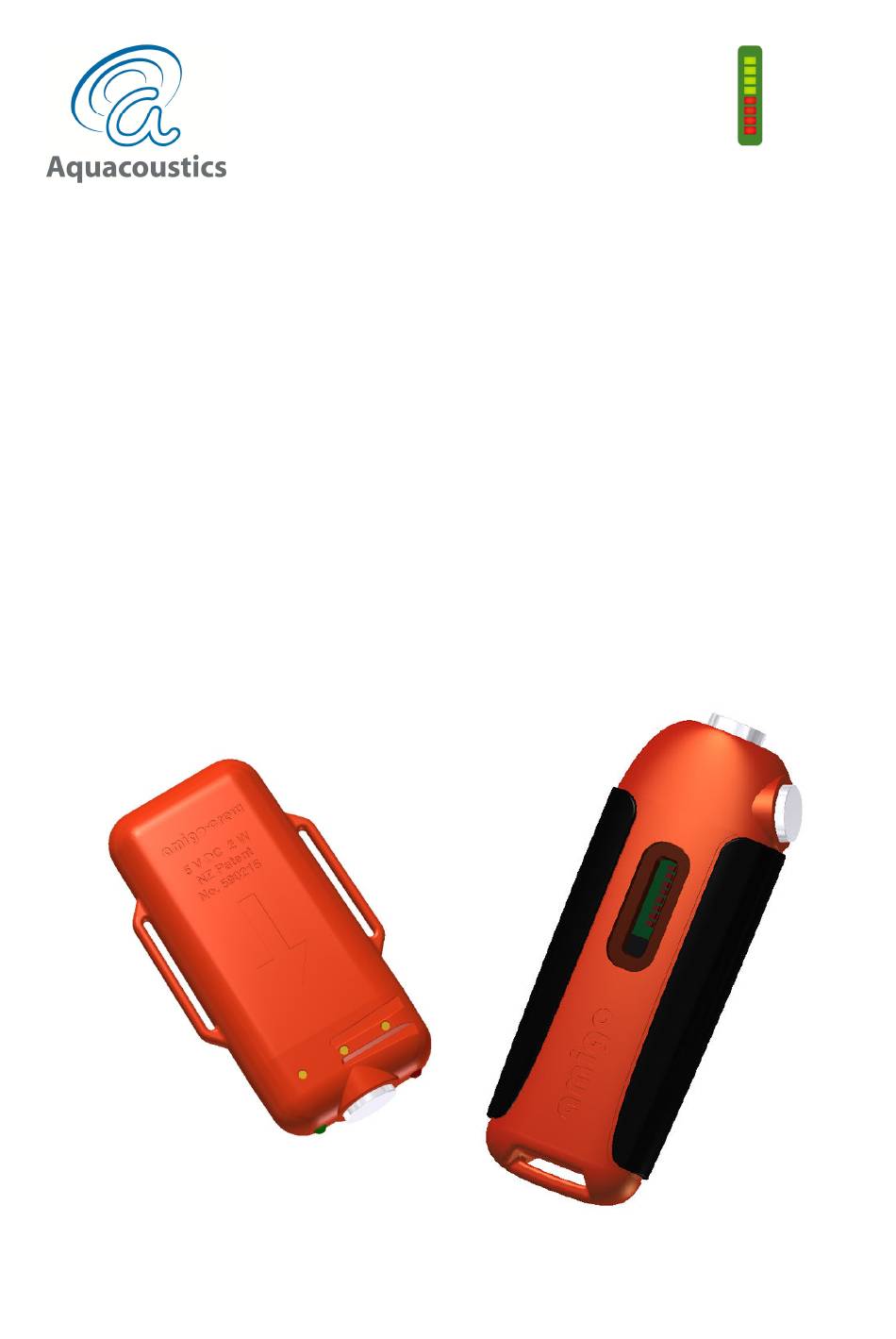

Figure 1. The
transmitter and receiver
)
(shown approximately actual size

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the amigo-crew and is the answer not in the manual?

Questions and answers

Summary of Contents for Aquacoustics amigo-crew

  • Page 1 Home of the amigo amigo-crew a Rescue Device for In-water Crew amigo-crew Figure 1. The transmitter and receiver (shown approximately actual size...

  • Page 2: Table Of Contents

    ........Boat Crew ............... Rescue Divers ..............Multiple Crew In-water ..........Maintenance ............... About Your ............. 12 amigo-crew Tables Inventory .................. Lamp Test, Battery Condition and Receive Display ....Receiver Display Modes ............. 6 Transmitter Display Modes ..........Technical Data Summary ............. 11 Figures ..............

  • Page 3: Warnings

    Effective operation in an emergency situation requires qualified and experienced rescue divers operating to a coordinated search plan and trained in the use of the amigo-crew. should be tested in the anticipated search environment prior amigo-crew to use.

  • Page 4: Inventory

    Page 2 of Inventory Your amigo-crew package is provided with the inventory listed in Table 2. Table 1. Inventory Quantity Description amigo-crew transmitter amigo-crew receiver USB Charger Universal AC Charger Quick Reference Card Instruction Manual (this manual) Warranty Card *Quantities subject to order...

  • Page 5: Care

    X Rays (typically found in airport security). Operation Work through the following instructions (in air) to become familiar with the operation of the amigo-crew. Receiver Refer to Figure 2 to identify the key features of your amigo-crew receiver.

  • Page 6: Receiver Key Features

    7.1.1 Power On Press and release the Mode Button once to turn your amigo-crew receiver on. All eight Light Emitting Diodes (LEDs) will light for a one second display test followed by a one second battery condition display. The receiver is now in receive mode (refer to Table 2).

  • Page 7: Lamp Test, Battery Condition And Receive Display

    Page 5 of Table 2. Receiver Display Modes LED Display Mode Lamp test (for 1 second on power-on) followed by battery condition display. Battery condition is good. Battery condition marginal. Recharge at the earliest opportunity. Battery is depleted. Range and functionality may be adversely affected.

  • Page 8: Receiver Display Modes

    Power Off Turn your receiver off by depressing the Mode Button amigo-crew three times at approximately one second intervals (just like typing the same letter three times when text messaging on a cell phone). The LEDs will go through a Cylon display sequence indicating that your receiver is shutting down.

  • Page 9: Transmitter

    Green LED Your transmitter requires no user intervention in normal use. It amigo-crew will automatically activate when immersed in salt or fresh water for more than approximately 15 seconds. This time delay is associated with splash suppression. The transmitter will automatically turn off when out of water.

  • Page 10: Battery Charging

    Section 11. Battery Charging Do not attempt to charge your while it is wet. Do not use the AC amigo-crew or USB charger in wet environments. Only use the equipment provided for recharging. Your amigo-crew is provided with a universal AC and/or a USB charger.

  • Page 11: Emergency Response Application

    Page 9 of If the battery in your amigo-crew transmitter or receiver should become fully discharged the internal charge management automatically provides a recovery cycle. The charging display may not operate during deep discharge recovery. Normal charging should resume within approximately 30 minutes.

  • Page 12: Rescue Divers

    Where in-water crew are not visible at the surface rescue divers should turn on their amigo-crew receivers, orientate themselves to the incident site, complete a 180 scan proceed in the direction of the strongest received signal, or in the direction of the incident site.

  • Page 13: Maintenance

    Do not use abrasives or solvents on the electrodes. Confirm that amigo-crew transmitter or receiver is fully charged using the procedure in Section 8. Contact Aquacoustics Limited directly for service support at http://www.aquacoustics.biz Table 6. Technical Data Summary Characteristic Measurement Effective Range: From 1 m to more than 30 m (3’...

  • Page 14: About Your Amigo-Crew

    If you require any aspect of your modified to suit your specific amigo-crew application please contact Aquacoustics Limited. We would like to know if you have found your useful. How we amigo-crew can improve the for your application? Please contact amigo-crew http://www.aquacoustics.biz...
