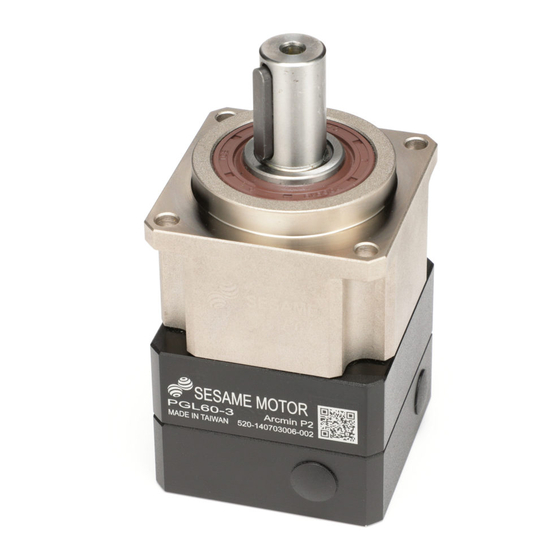

Sesame Motor PGL Series Operation Manual

Planetary Gearbox Operation Manual
Thank you for selecting SESAME products.
Please read this manual before operation.
Safety Standards: The safety standard marks are indicated on the nameplates of approved products.
1. NOTE
1.1 Preparation before installation
Please read this operation manual before
using this Gearbox. Any problems caused by
inappropriate operation contrary with the
manual, or damage caused by natural disas-
ters, or restructure the Gearmotor without our
permission, Sesame will not hold any respon-
sibility nor will the Gearbox be cover by war-
ranty.
Warranty start within one year after purchase
the Gearbox. Within warranty period, if Gear-
box damage is not cause by operation error
nor by natural disaster, then please send
back the Gearbox, we should replace the
damage spare part at free of charge.
Installation, Disassemble, Maintenance on
the gearbox, needed to be performing by
Train Profession.
According to the application and operation
environment, the gearbox temperature might
be raising after period of running. Please do
not touch the gearbox directly during opera-
tion, or right off from operation.
Do not touch any rotating components when
the gearbox is running. Ensure that the plugs
of the gearbox were inserted after installa-
tion. Avoid any small object fall into the gear-
box.
Handle the gearbox gently during installation,
as the component is precision. Therefore, do
not knock the gearbox by any tool, In order to
avoid the influence of running accuracy.
Do not disassemble or transformation of
Gearbox, or they may be injured or cause
damage to equipment.
The Gearbox is a sealed design, oil belongs
to semi-solid advanced synthetic oil, and
therefore it is no need for change oil.
ISO 9001
ISO 14001
1.2 Installation environment limitation
Gearbox must install under following term,
do not accord with those term, as the gear-
box might be damage, and which will not
be cover by the warranty.
Gearbox is design or manufacturing, for use in
the other of mechanical equipment assembly.
Avoid Gearbox used in flammable gas or corro-
sion gas environment.
Operate temperature is between -10 to + 90 .
Humidity: no more than 85%, in order to avoid
condensation.
Operate altitude may not be higher than 1000m
above sea-level
Avoid direct sunlight, dust accumulation.
Avoid continuity vibration or hit.
Used in good ventilated place.
2. Gearbox Introduction
As shown below, the input side is for installing
the servo motor and the output is join the
application equipment.
Input
Output
To ensure the product performance, both the input
and output ends must be protected carefully to
avoid any damage, and cause improper operation.
Page 1 / 4

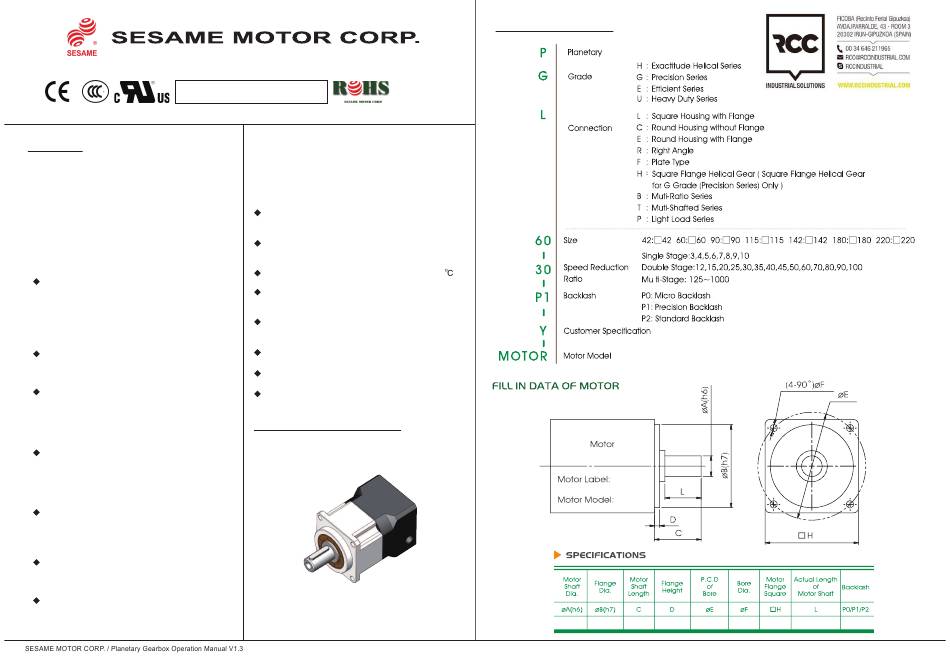

3. Coding System
l
