KINGSIGNAL MT1 Quick Install Manual

Gigabit wireless routers

Hide thumbs

Table Of Contents

Registered trademark of KINGSINAL. All trademarks mentioned in this manual are

owned by their respective owners.

The product specifications and information mentioned in this manual are for reference only and

are subject to change without prior notice. Unless otherwise agreed, this manual is only used as

a guide, and the statements made do not constitute any form of warranty.

Address: 23-27 / F, block B, building 10, No. 1819, Shahe West Road, Nanshan District, Shenzhen,

China

Company website: http://www.kingsignal.cn

Technical support hotline: 0755-8631 9150

Table of Contents

Need help?

Do you have a question about the MT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for KINGSIGNAL MT1

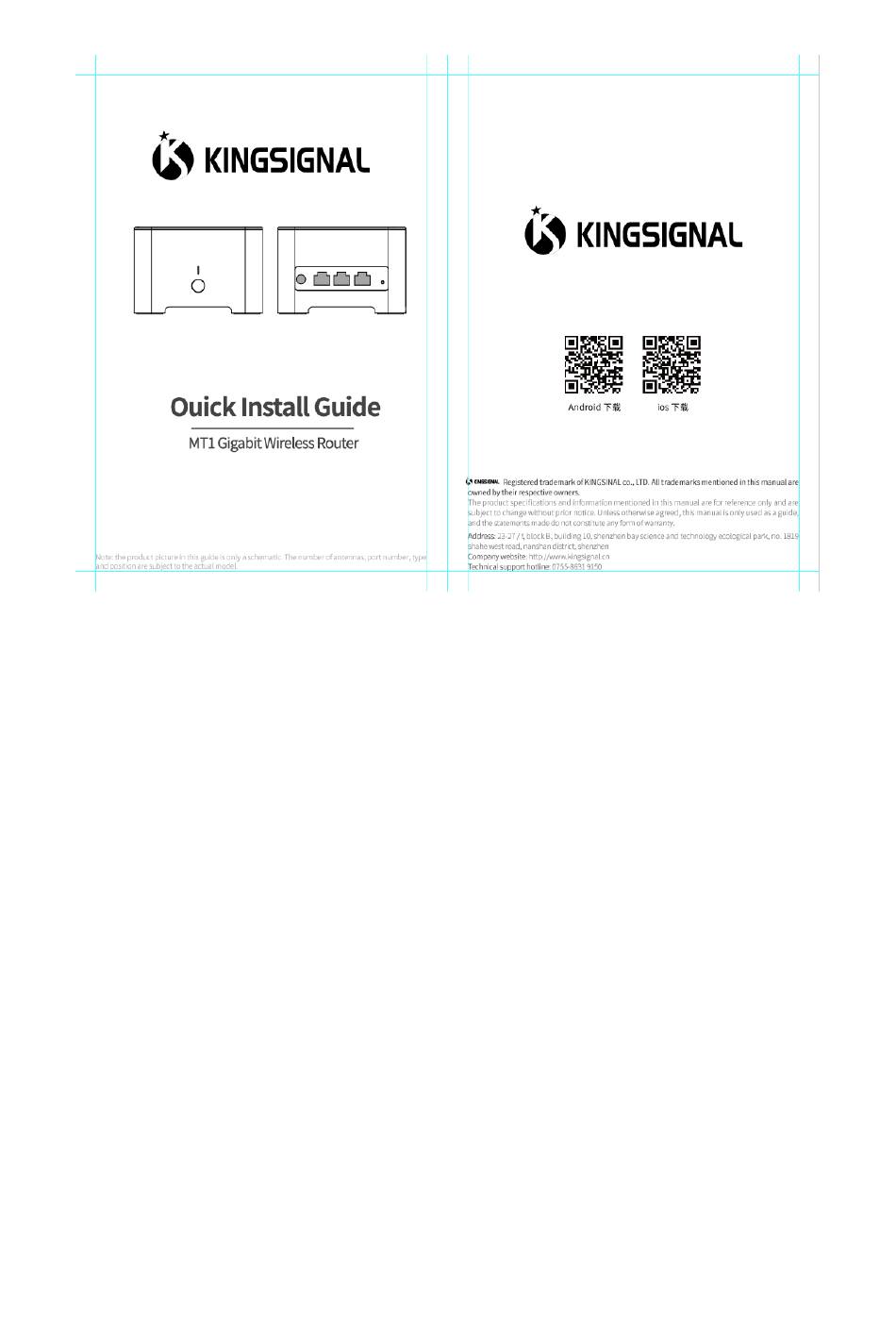

Page 1 Unless otherwise agreed, this manual is only used as a guide, and the statements made do not constitute any form of warranty. Address: 23-27 / F, block B, building 10, No. 1819, Shahe West Road, Nanshan District, Shenzhen, China Company website: http://www.kingsignal.cn Technical support hotline: 0755-8631 9150...

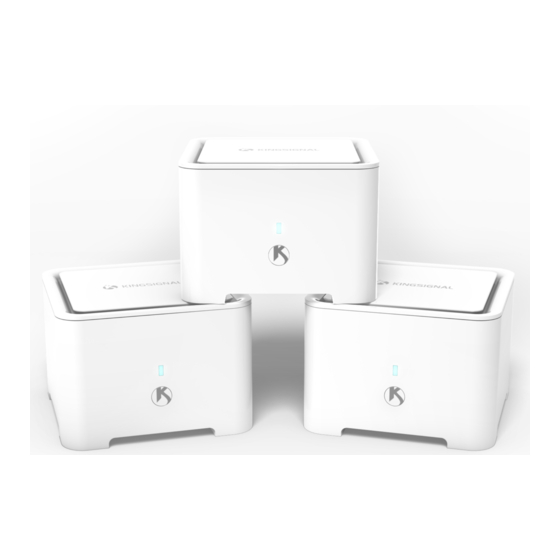

Page 2 Product appearance（1.2） 1. System LED Green Light On — The connection between the main route and the node is normal and can be connected to the Internet. Blue Light Flashing — Mesh device is searching. Red Light On — Normal connection, weak signal from slave node. Red Light Flashing —...
Page 3 Schematic of hardware connection（3.4） POWER：Used to connect matching power adapters. WAN：Used for connecting broadband interfaces such as broadband Modem or cell. LAN：Used for connecting computer, set-top box and other wired equipment.
Page 4 Set router for the first time after boot（5.6） Set management instructions through APP 1. Connect router to factory default wireless name with mobile phone. 2. After the connection is successful, turn on the mobile phone "Elven Guest" APP and automatically jump to the management interface; Create administrator password, click save. 3.
Page 5 Frequently Asked Questions（9） Why the login page does not appear after entering the URL Http://192.168.6.1. ·Make sure the computer is set to get IP automatically. ·Make sure the browser tries to enter Http://192.168.6.1. ·Try using another browser ·Restart the router and try again. What if there's no Internet? ·Please check that the computer is connected to Modm using a network line.
Page 6 ·Please make sure you fill in the wireless password correctly. Product warranty card（10） Dear user, Hello! Welcome to KINGSIGNAL products. To protect your rights and interests, please read the following carefully after purchasing the machine: The following are not covered by free maintenance. The company can provide paid services.
Page 7 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
