Summary of Contents for Conspit CGP

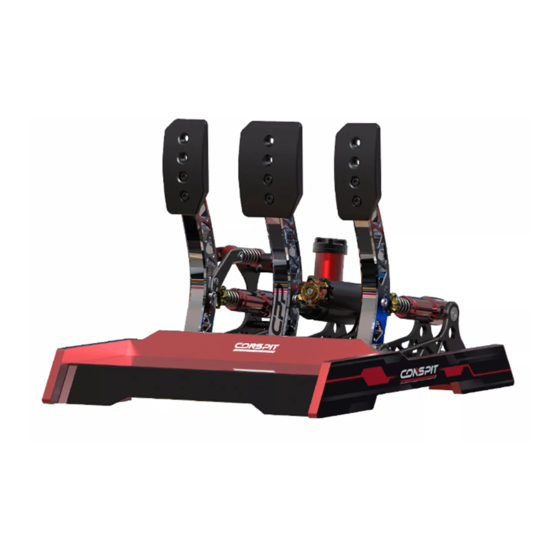

  • Page 1 CGP & CPP Quick Guide Ensu (Shanghai) Electronic Technology Co., Ltd...
  • Page 2 Contents Mounting Plate Throttle, Brake and CONSPIT Stickers Clutch Pedals USB Cable lubricating oil Washer Optional PU Rubber Allen bolt Spanners (m8×20mm,m8×16mm)
  • Page 3 Mounting Demonstration Heelrest forward/backward M8*12mm Allen Bolt M8*20mm Allen bolt Loosen two Allen bolts on the Heelrest,adjust its position forward/backward.
  • Page 4 Connection demonstration Motor Set Only USB to PC To Conspit Base Load cell pedals/handbrake Throttle cl u t c h Hydraulic pedals/handbrake...
  • Page 5 Rubber replacement demonstration for CGP series Cylinder(a) Washer(b) Adjusting ring(d) Push rod(f) PU rubbers(c) Cylinder closure knob(e) rubber and washers combination (g) 1. Loosen the adjusting ring (d) counterclockwise; 2. Unscrew the cylinder closure knob (e), take out the rubbers (c) and wasahers (b);...
  • Page 6 Rubber replacement demonstration for CPP series * Due to the ductility of the piston material inside the hydraulic cylinder,CPP brake need to be used for a period of time to eliminate the sense of resistance caused by friction. Cylinder(a) Washer(b) Adjusting ring(d) PU rubbers(c) Cylinder closure knob(e)
  • Page 7 Brake Stiffness level Suggestion CONSPIT bright yellow bright yellow light yellow light yellow Brake stiffness chart bright yellow bright yellow light yellow light yellow *stiffness level is rated as 1-9, 1-9 corresponds to the softest to the firmest Driver suggestion: stiffness level 1-2, close to sports car.
  • Page 8 CONSPIT link Calibration Clutch motor operation range (optional with clutch motor) Firmware upgrade Hydraulic/load cell Press pedal to the maximum switching button then click “Max” button Fully release the pedal then click “Min” button...
  • Page 9 CGP/CPP mounting templates...
  • Page 10 CONSPIT.COM Get driver software at our website #GET YOURSELF IMMERSED...
