Summary of Contents for Safespaces Safespace Voyager Compact

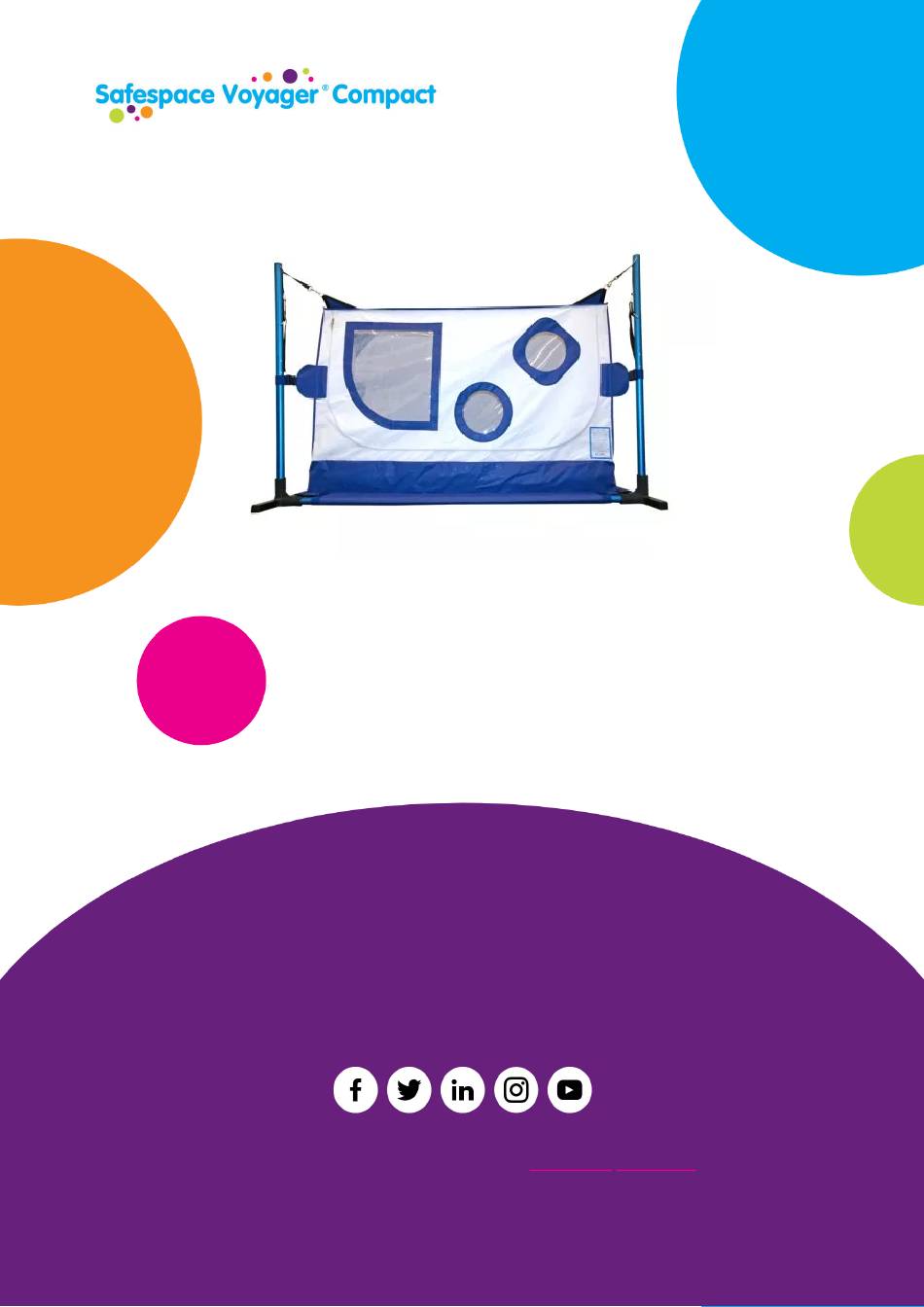

- Page 1 Voyager® Compact User Information Guide 01706 816274 | info@safespaces.co.uk | www.safespaces.co.uk Safespaces, 361 Burnley Road, Todmorden, OL14 7DH Company Registration No. 5733564 | VAT No. 797 1269 81...
- Page 2 Welcome to your Safespace Voyager® Compact This guide contains: About Safespaces® Voyager® Compact Assembly Instructions Use & Care Guide It is essential that you read all the information carefully before you assemble and use the Voyager® Compact. Once assembled ensure that you leave it to stand for an hour before the user is allowed into the Voyager®...
- Page 3 About Safespaces® Safespaces create custom-designed, safe, living spaces and beds designed for adults and children with complex needs, including autism, epilepsy and behaviours that challenge. Our products are ideal for use at home, hospitals, schools, care and respite settings. For more information about our products visit our website! Voyager®...
- Page 4 Assembly Instructions The Voyager® Compact comes in two carry cases. One bag contains the Voyager® Compact poles including: 6x Female round horizontal poles (4x bottom vertical poles and 2x horizontal poles) 4x Male round horizontal poles 4x Top verticals with straps 4x Corner pieces - 2 with brackets that pair up as shown (Please note that the 4 corner pieces colours may vary from picture shown)
-
Page 5: Step 1 - Assembling The Base
Step 1 - Assembling the base Unroll the Voyager® Compact fabric roughly where you want to put the Voyager® Compact in the room, checking that the door is facing out into the room. Give yourself plenty of space to work round it. Pull out the side pole pockets along the sides of the fabric and undo the velcro aps at each end. - Page 6 Slide the connected poles into the side pockets along each side of the fabric at the base, leaving equal amounts of pole sticking out at each end. Take the corner pieces and position them together in pairs at each end of the Voyager® Compact fabric.
- Page 7 Slot all the corner pieces onto the ends of the long horizontal poles till they ‘clunk’ into position. Lift the corner pieces up in the middle and slot the shorter piece under and into the bracket of the other. Push down gently til at and repeat at the other end. Fasten up the Velcro aps around the joined-up end bars. ...
- Page 8 Step 2 - Assembling the upright poles Take the 4x bottom vertical poles and push them into the vertical corner slots. Slot the 4x poles with straps into the upright poles with the straps facing inwards, towards the centre of the Voyager® Compact. Make sure the silver camlock buckles are at the top of the poles. ...
- Page 9 Making sure there are no twists on the strap, clip together the trigger hook and the D ring on the corner of the Voyager® Compact fabric so they are securely hooked together. Repeat on all 4 corner. Pull down on the straps about halfway - to pull the Voyager Compact but not fully at this stage.
- Page 10 Step 3 - Fitting the mattress Undo the oor zip and place the de ated mattress into the pocket. Un-clip the hose from around the pump and screw it into the pump (hole marked ‘out’). Put the nozzle onto the other end of the hose, put the nozzle into the mattress and pump up.
- Page 11 Pull down fully on the 4 pole straps so that the camlock buckles meet the bottom ‘D’ ring on the poles. This will pull the Voyager Compact® Fabric up to the top and pull the poles in so that the whole structure is now within the boundaries of the base frame.
-
Page 12: Step 5 - Final Safety Checks
Step 5 - Final safety checks Make sure the Voyager Compact is at least 30cm away from any walls or hard surfaces. Test this by pushing the walls from the inside and making sure you cannot touch any walls, furniture or any hard objects. Step 6 - Using the Voyager®... - Page 13 Pack it all away neatly into the two carry bags. Make sure the Voyager Compact is clean and fully dried before dismantling and storing it Over the years Safespaces have made changes in our designs. Please contact us if you have any dif culties. ...
- Page 14 Use & Care Guide Welcome to your Voyager Compact! We hope that you will gain many years use of our product. This guide tells you how to look after your Voyager Compact and make sure that it is used in the way it is intended. Please read it carefully and keep it for future reference.
-
Page 15: Safe Distance
Safe Distance A minimum 30cm clear area around the Voyager Compact must be maintained at all times. Your Voyager Compact has been designed to have a gap around each wall, so that the walls ex outwards to absorb any impact and prevent contact with external hard surfaces. Please do not place or store any items in the area around the Voyager Compact e.g. -
Page 16: Cleaning And Maintenance
We recommend that you add the Voyager Compact to your insurance policy. Customer Service At Safespaces, we pride ourselves on our customer service. If you need any further information, would like us to talk you through this guide, have any problems with your Voyager Compact, or want guidance on how to use it effectively, please feel free to contact us by phone, email or social media. - Page 17 Guide. If damage occurs, please get in touch and we will discuss how we can help. In the event that the product is repaired by Safespaces outside of the 12-month guarantee period, a 3-month guarantee shall be issued effective from the date of delivery or re-installation of the product.
- Page 18 For more information about our products visit our website!
