Summary of Contents for Fitnet KL-740
- Page 1 Handheld Printer Model: KL-740 User Manual...
-
Page 2: Table Of Contents
Table of Contents Introduction..........................1 Important Safety Tips......................2 Machine Diagram/Parts List....................3 Installation Handheld Printer.....................4 Using the Handheld Printer....................5 Troubleshooting........................13 Maintenance.........................14 Customer Service.........................15... -
Page 3: Introduction

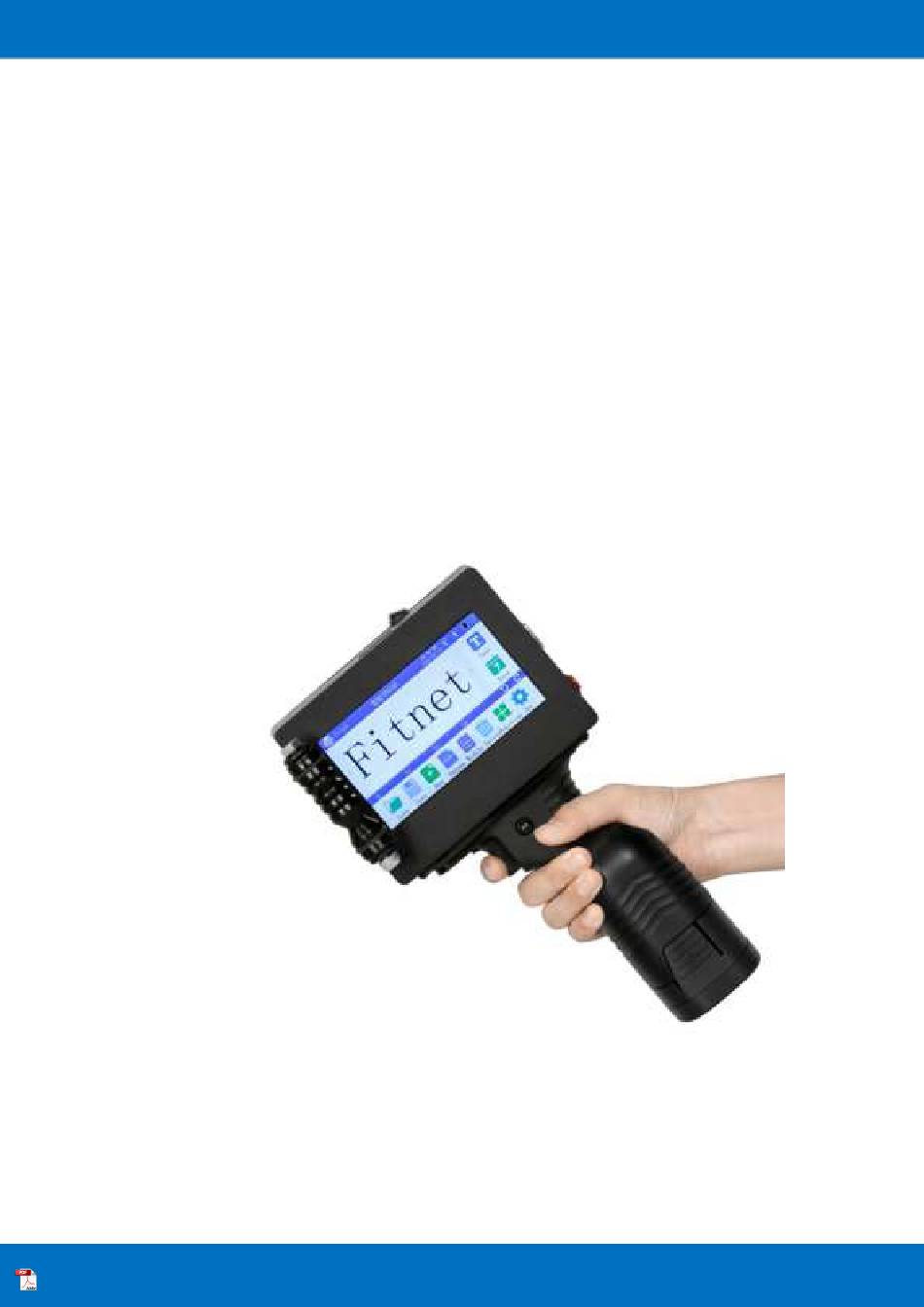

Handheld Printer Model: KL-740 User Manual Introduction Congratulations on Your Purchase of the Handheld Printer Our upgraded version of the inkjet printer adopts a 4.3-inch color touch screen and it has high resolution. The printed labels are smooth instead of blurred characters. You can edit text and images on this large sensitive screen with a plastic stylus, and even upload files by U dish. -
Page 4: Important Safety Tips
Important Safety Tips Please read and understand the following safety tips prior to using your product Warning: Indicate a potential hazard to the health and safety of customers. 1. Fire Danger Ink and cleaning fluid are volatile and flammable, so they must be stored and handled in accordance with local regulations. -
Page 5: Machine Diagram/Parts List
Machine Diagram/Parts List... -
Page 6: Installation Handheld Printer
Installation Handheld Printer Three installation steps are as follows: Open the cartridge cover; 45°insert the inkjet cartridge; Hand pull the exchangeable battery. -
Page 7: Using The Handheld Printer
Using the Handheld Printer Note: Synchronizing wheel must be rotated to print... - Page 8 Interface Introduction Print: Click to print after editing the content (the same as handle print button) Preview Area: You can move the position of the print content with your finger or touch pen. You can also modify the print content through the edit button. Ruler: The length of the printing content be measured.
- Page 9 Rotation Function: Rotate the edited content by 360°. Function 2. Commonly Used Icons: R symbol, keep dry, diameter mark, handle with care, disable hand hook, this side up, stack limit. 3.Picture: Import the prepared picture to the U disk for reading. 4.Graphic Code: Edit content to produce barcode and QR code.
- Page 10 Font Settings 2. Character Height: Set the font height at the range of 16-200. 3. Word Width: Set the font width between 0-999. When the word width is 0, it means that its width is equal to the word height.
- Page 11 1. Barcode: Various types. 2. QR code. 3. Size: Set the height of the barcode/QR code. 4. Horizontal Stretch. Set the width of the barcode/QR code. 5. Display Area: Show barcode/QR code. Counting Variable 1. System: Select the technical code to display the system.
- Page 12 Table 1. Draw the number of rows, columns, and line width of the table. 2. Row Height: Set a row height at 10-150. 3. Column Width: 10-999. 4. Merger: Number of combined rows or columns. 5. Preview left and right. 6.
- Page 13 System Setting 1. Time Setting: Set the system time. 2. Touch Screen Calibration: when the touch screen is not sensitive, you can calibrate it. Try to turn off the unit, press the screen and turn it on again, the system will auto-enter the calibration interface.
- Page 14 Features of the Printer The handheld printer works very stably by a solvent quick-drying ink cartridge. The printer's 4.3" color screen has good resolution with a decent UI. It is easy to set up your print job right from the machine. Printing Content: text, QR code, barcode, picture, time, date, logo, table, excel, ...
-
Page 15: Troubleshooting
Specification: Dimensions Net Weight Screen Size Capacity Resolution 5”L*4.3”W*9.6”H 1.67lb 4.3” 42ml 600DPI Printing Distance Printing Height Print Speed Storage Direction 2-5mm Adjust 2-12.7mm up to 80m/min 50MB or U disk 360° Troubleshooting Before calling service team for support, please check the following troubleshooting tips: Stoppage Solution Calibration: Turn off the machine first, and then clip... -
Page 16: Maintenance
Maintenance... -
Page 17: Customer Service
Customer Service Dear Customer, Thank you for your purchase and support. Due to the jet lag, we can't see the store's email after getting off work in time. If you have any problem, please contact our Email of the customer service team liaohui@naisinice.com to reduce your waiting time and tell us your order number.
