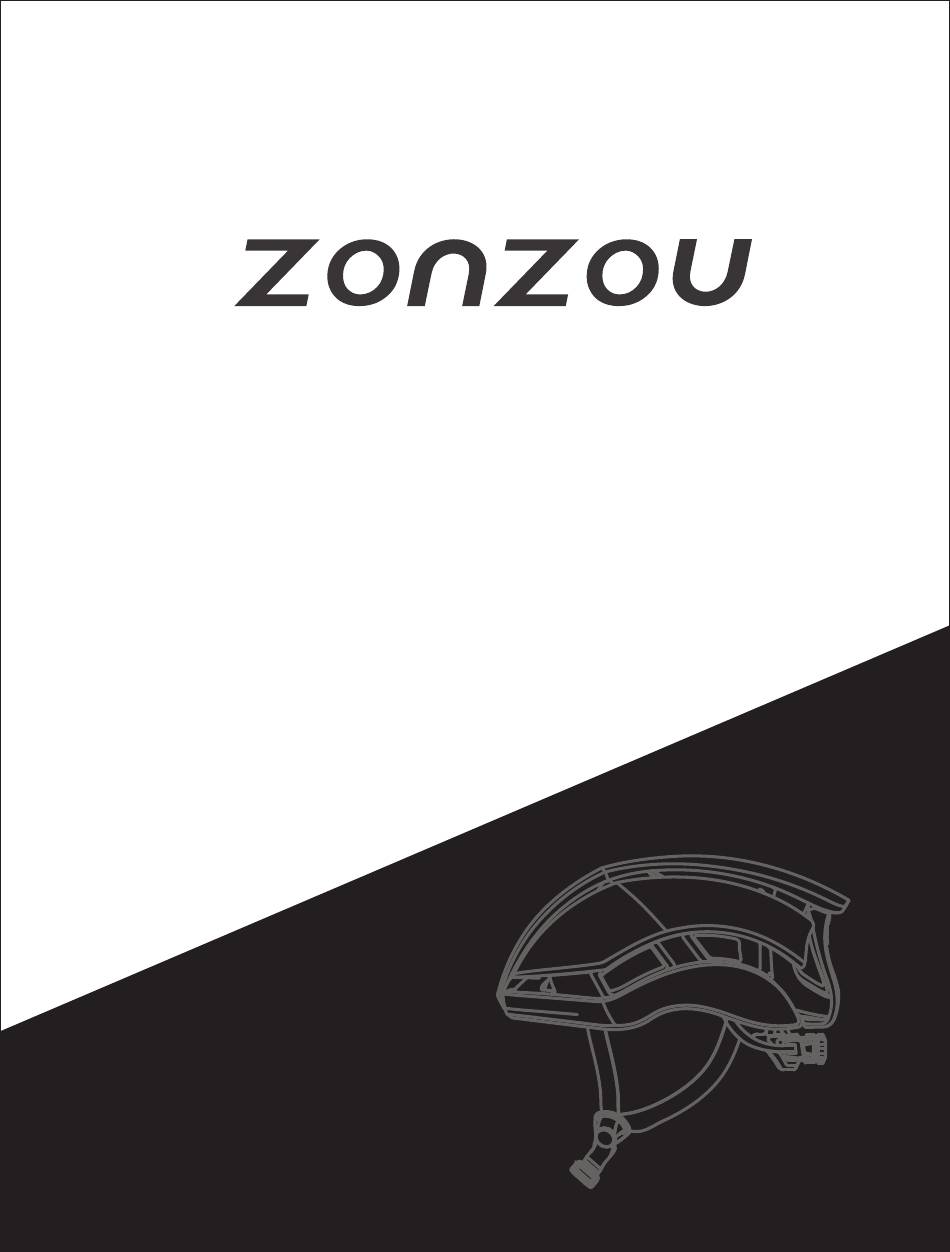

- Page 1 Smart Riding Helmet User Guide www.zonzousmart.com www.zonzousmart.com MODEL:S68A/S68B...
- Page 2 Warning! Please read the user guide carefully before using the helmet...
-
Page 3: Scope Of Use
Overview Scope of Use This helmet is suitable for cycling, skating, skateboarding, electric bicycles, balance bikes and other non-motorized sports. It is not suitable for motorcycles or motor vehicles. Precautions If any discrepancies between actual products and pictures in this manual, please refer to the actual product. - Page 4 Methods of Wearing Correct Wearing Methods Wrong Wrong Right In order to better protect users, please wear the Warning！ helmet correctly. Please do not use any helmet after impact. Please replace it or stop using it. How to use the buckle Connect 2 buckles and lock it as the picture shows.
- Page 5 Methods of Wearing Warning！ Please make sure to buckle up before riding. The strap of the helmet should be adjusted properly, not too tight nor too loose. Adjusting the strap too loosely or wearing it incorrectly can easily cause the helmet to slip off the head.
- Page 6 Methods of Wearing Size Adjustment System How to adjust the adjuster Method of adjuster If it is too tight, please If it is too loose, please Stabilize the front with one adjust it counterclockwise. adjust it clockwise. hand and adjust the adjuster moderately with the other.
- Page 7 Methods of Wearing Adjust the angle through the three adjustment positions, and re-select the position of the snap button or slide Adjuster button you want. At last buckle the adjuster with the snap button or slide button seat. Snap or slide fastener ※Attach the adjuster (removable) to the snap seat...
- Page 8 Helmet lining How to use and replace the lining Youyun'an smart helmets only have one set of lining combinations. If you need other combinations, feel free to choose the one suits you best. Please purchase it separately (Please make sure the lining combination is correct for your helmet model) Helmet Strap Helmet Strap...
-
Page 9: Indicator Function
Indicator function Self-check Mode Magnetic control button Charging Port battery indicator ※Press and hold the main switch button for 3 seconds to turn it on with a beep. ※The charging indicators in red will light up from left to right. ※Then the light of the charging indicator will display according to the current actual power. - Page 10 Indicator function It takes one second after the beep to do reverse turning. ※ It takes one second after the beep to do reverse turning. ※ Main switch button: Press and hold for 3 seconds with a beep and turn on the helmet (press and hold for 3 seconds to turn off when it is on) ※...
- Page 11 (left and right yellow lights flash at the same time). Press again to return to the constant light mode, repeat in this way. (S68A only) ※ After the self-check mode is completed, the white light constantly flashes. At this time, press the button to select the white light to flash slowly (slow flash mode), and...
- Page 12 Indicator function Right Turn Mode ※ Swing your head to the right and return back to the central. It enters the right turning model after one beep. ※ Warning lights: Yellow light at the right flashes and red light at the left is on constantly. ※After entering the right turning model about 8 seconds, it will return to the initial state after 2 beeps.
-
Page 13: Charging Mode
Charging Mode display when the battery is lower than 20% during charging. The first red indicator light on the left is on steadily. The second red light and lights to the far right will be on a dynamic real-time display when charging over 20% but lower than 40% during charging, and so on. -
Page 14: Buzzer Tone
Buzzer Tone to slide and press from the right end to the left end of the rubber plug slightly, so that the USB rubber plug can better fit the shell, which can achieve better dust and waterproof effects! (As shown below) ¤... -
Page 15: Product Parameter
Product features: somatosensory control, intelligent turning Product model: S68A/S68B Product head girth: 550~590mm (M/L) Product size: 286 x 214.5 x 141mm Product weight: 370g(S68A); 350g(S68B) Rated power (W): Max:1W Rated working voltage (V): 3.5~4.25V Battery specification: 3.7V, 650mA Charging parameters: 5V+/-0.25V, 500mA... -
Page 16: Limited Warranty Period
Warranty Please use neutral soap and water to clean the helmet if you use solvents. If solvents, paint release agents, etc. the helmet will be damaged easily, and even cannot be used for protection in an accident Storage instructions Helmets are easily damaged in an environment above 60 degrees Celsius. - Page 17 Warranty This limited warranty is subject to the following important restrictions: ※ This warranty only applies to products purchased directly from Youyun'an or Youyun'an authorized distributors. This limited warranty only applies to the original purchaser of the product, and does not include users who have obtained the product through resale, lease or transfer.
- Page 18 Use warning Any warranty included in the laws of any country, including guarantees of marketability and suitability for specific purposes, are all restricted by the limited warranty duration. Some countries do not allow limited warranty, therefore aforementioned limitations might not be applicable for you.In addition to the limitations, the aforementioned limited warranty will supersede all other warranties, guarantees, agreements and similar obligations of the manufacturer or...
- Page 19 Use warning but there is no guarantee that accidents or collisions will not occur. The helmet is not designed for use in motor vehicles. It is only suitable for sports scenes where the helmet is certified and suitable. When using it, check whether the helmet is damaged or whether it is worn correctly.
- Page 20 Company Information Shenzhen Youyunan Intelligent Technology Co., Ltd. www.zonzousmart.com Website Add : ROOM 706,51 PINGXIN NORTH ROAD,SHANGMUGU COMMUNITY,PINGHU STREET, LONGGANG DISTRICT ,SHENZHEN,CHINA Need more help? Send an email to ht@zonzousmart.com and we are happy to help you!
