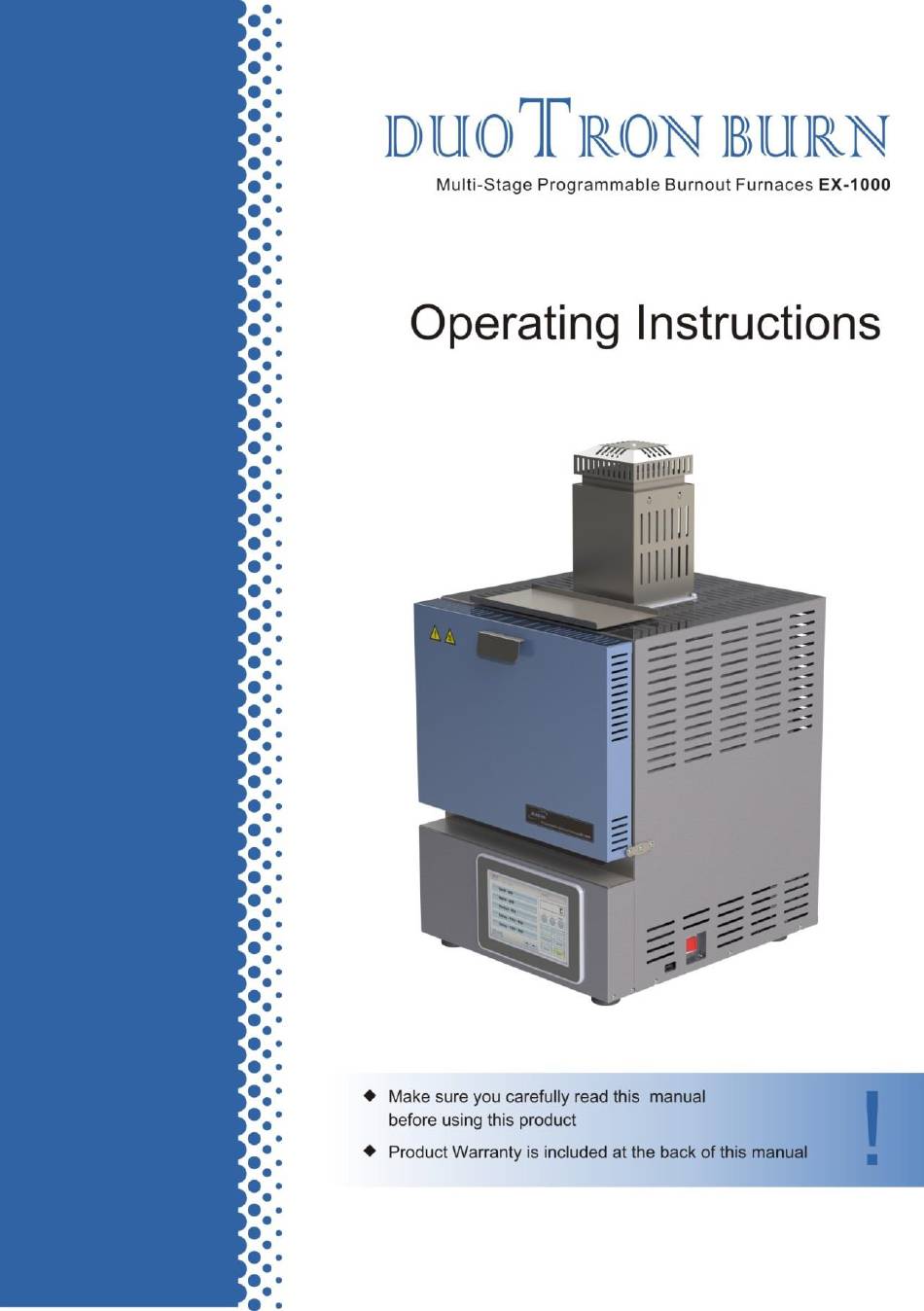

DuoTron Burn EX-1000 Operating Instructions Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the EX-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for DuoTron Burn EX-1000

Page 2 - 1 -...
Page 3: Table Of Contents
Index 1. Introduction ............3 2. Product Information ..........7 3. Technical Data............. 8 4. Install ............... 10 5. Appearance and Name ........11 6. Front Panel Information ........12 7. Changing Name ..........15 8. Temperature Setting ........... 16 9.
Page 4: Introduction
1. Introduction Thank you for purchasing ORIGIN DuoTron-Burn Furnace. DuoTron-Burn Furnace is subject to stringent quality control procedures and patiently follow standard procedure. As a results of our quality system, DuoTron-Burn Furnace has better performance. Also, DuoTron-Burn has sturdily and gracefully designed and programmed as user friendly.
Page 5 Warning 1. Do not disassemble, repair or modify any part of the machine without prior approval from an authorized technician. It could be out of warrantee and could cause damage, electric shock or fire. 2. Ensure the oven is properly grounded to prohibit error or electrical hazard. 3.
Page 6 Caution 1. Keep away from Furnace during operation. While running, furnace generates high temperature. 2. Please handle the oven carefully to avoid damage. The furnace contain fragile parts. 3. Do not use in places with a lot of vibration. 4. Please read the manual and understand the instructions before using the oven.
Page 7 Caution 16. Changing insulation : Contact particulate from insulator with the eyes or skin may cause irritation. Long term and inhaling a large quantity of the particulate from insulator may cause respiratory disorders. Try protect skin, eyes and respiratory organs with wearing safety glasses and mask.
Page 8: Product Information
2. Product Information (1) Characteristics ►Easy to operate and full set of features ►7” TFT LCD High quality display ►Touch screen ►15 custom temperature settings ►Maximum ramp up rate 25℃/min ►Capable of program 5 different stages in each schedule. ►Easy to use by set schedule ►Compact size.
Page 9: Technical Data
3. Technical Data Temperature Sensor Sensor Type Thermocouple K-type Sensor Range 0~1,200℃ Main Controller Voltage DC 5V Display 7” TFT LCD (Touch screen capability) Control(RS-232) 1 Ch. : Communicate with I/O Controller 1 Ch. : USB port for updates I/O Controller Voltage DC 12V Output...
Page 10: Install
4. Install (1) List of parts After open a box, ensure there are every list of parts. Also, check any visual damage. If you find any damages and defects, contact seller. < List of parts > - Furnace housing ............ 1pc - Instruction .............
Page 11: Appearance And Name
5. Appearance and Name List of parts 1 Furnace Housing 2 CATALYST FILTER 3 Insulation - inner 4 Insulation – Door 5 Door Cover 6 Touch Screen Monitor 7 USB port for program upgrades 8 Nickle Chrome Heating Coil - 10 -...
Page 12: Front Panel Information
6. Front Panel Information (1) Display <Information in picture is only for examples> 1) Time and Mode display ① Displays current time and date. ② Changing time or date : Double clicking time or date. ③ Displays the current mode. Ex) Gold-600, Metal-900...
Page 13 (2) Button Explanation Button Description Set the temperature for selected mode. < Reference-Section 8. Temperature setting, p-16 > Setting additional functions - Goes to main menu - Settings reset Starts the current program. If no mode is selected the oven will not start Stops the current program during operation - 12 -...
Page 14 Button Description Displays if the power is going to the heating elements Move between pages. (Total 15 schedules can be saved) Change name of the schedule.(After clicking this button, click the schedule wanted to be changing name) <Reference-Section 7. Changing Name, p- 15>...
Page 15: Changing Name
7. Changing Name ① To change the name of the program, press the tool button( )then, press the mode button( ② Type the name of the new program then press the OK button. *Change font size : Click this button ( ) <This function apply to all letters>...
Page 16: Temperature Setting
8. Temperature Setting ① Press the mode you want to modify. (ex : Select Gold - 600 button) ② Press the Temp Set button ( ③ The display will change to below ○ Change the Temp, time and hold time to desired settings and then press the Enter button ( - 15 -...
Page 17 To move back to the main menu press the back button ( <Detail Information>  Delay(h:m) : Setting delay starting of sintering time  TEMP(℃) :Setting set point temperature <Max : 1,100℃>  TEMP(℃/min) : Temperature ramp rate <Max : 25℃/min > ...
Page 18: Setup
9. Setup ① Press the setup button to enter setup menu ( ② Press the setup to enter the screen below ( - 17 -...
Page 19 Button Description Button Description Change the alert sound for Start, End and Stop functions. Temperature Fine Tuning. Use caution when changing value as it may affect units.<Before use, contact manufacturer or seller> (ex) 1. For lowering 10℃ = Set Temp. 2.
Page 20 Software Upgrade 1. Create Run_V folder in USB drive, then copying a file want to upgrade. 2. Insert USB drive to USB port where right hand side of DuoTron Oven. 3. Click ( ) button will start upgrade and program will restart. 4.
Page 21: Troubleshooting
10. Troubleshooting (1) Messages during programming ▣ “Choose your mode.” When a mode is not selected when trying to start the program this message will pop up. Solution → Press the desired mode. ☞ ▣ “Do you want to stop?” When you press the "Stop"...
Page 22 ▣ “Communication Error” If there is no communication between the display controller and I/O controller for more than 10 seconds this message will pop up. Solution → Restart the oven. If the problem persists please contact ☞ for further troubleshooting. manufacturer ▣...
Page 23 ▣ “Insert USB Memory Stick!” Have not insert USB drive or oven does not recognize USB drive. ☞ Solution →Insert USB drive to oven. If already connect USB drive to oven, wait for 5-10 sec. then click USB button on display. If Oven does not recognize, change USB drive.
Page 24 ▣ “High temperature error!” Temperature is not reading correctly because of trouble on thermocouple. ☞ Solution →Restart oven. If there is same problem, contact a manufacturer. (Thermocouple repair /exchange) ▣ “Limit Switch error!” Schedule start without lift is not completely close. ☞...
Page 25 ▣ “Trans power error!” Power does not give to Muffle. ☞Solution →Restart oven. If there is same problem, contact a manufacturer. (Control PCB repair/exchange) ▣ “Check Parameter!” Has a trouble in Control PCB. Oven is not working normally. ☞Solution →Restart oven. If there is same problem, contact a manufacturer. (Control PCB repair/exchange) - 24 -...
Page 26: Warranty
11. Warranty Within warranty After warranty Condition period period Within 10 days of purchase, require major Exchange or repair by defect even though used in refund normal condition After 1 month of purchase, require major repair by defect even though used in Exchange normal condition Manufacturer could not repair for a month...
Page 27 MEMO - 26 -...
Page 28 MEMO - 27 -...
Page 29 MEMO - 28 -...
Page 30 MEMO - 29 -...
Page 31 4. Caution at use Warranty Info ■ Avoid places of sudden and/or drastic temperature changes 1. Warranty Length ■ Do not use flammable material for cleaning Warranty is good for 1 year after purchase for ■ Do not install near high voltage usage or voltage malfunctions due to manufacturer defects fluctuations 2.
Page 32 www.add-in.co.kr 경기도 양주시광적면부흥로 847번지 YTC(양주테크노시티 지식산업센터) 321호 Tel : 070-4236-0072 Fax : 031-848-2072 - 31 -...
