Summary of Contents for mpw MI-3120

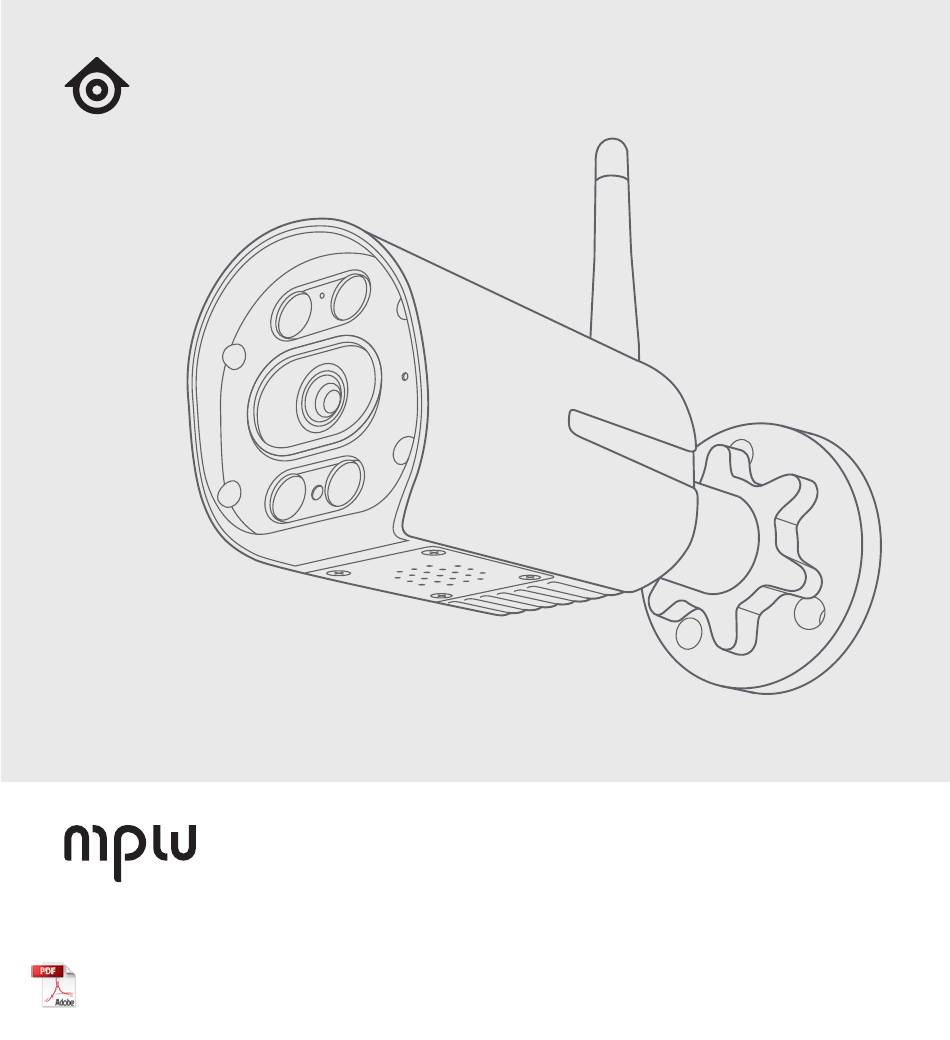

- Page 1 Outdoor Bullet Cam Quick Guide MI-3021...
- Page 2 Warning This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 RF Specification: Max RF Function Operation Frequency Limit Output Power 802.11b/g/n(20MHz): 2412~2472MHz; 13.75 dBm Wi-Fi 20 dBm 802.11n(40MHz):2422~246 2MHzt EU Declaration of Conformity Shenzhen Baishihao Electronic Technology Co., Ltd. (Room 202, No. 6, 5th Alley, Xiangjiaotang New Village, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen District,Shenzhen,China,518057) hereby declares that this Outdoor Bullet Cam is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
- Page 4 Catalogue 1. What’s In The Box 2. Camera Structure 3. Insert Micro SD Card 4. Read Before Installing 5. Set Up With SafeMiraie App 6. Installation 7. Status Light 8. Protect Plan...
-
Page 5: What's In The Box
What’s In The Box Drilling Template Power Adapter Your property guardian at day and night Outdoor Bullet Cam Weatherproof Tube Quick Guide Mounting Screws Anchors Outdoor Bullet Cam... -
Page 6: Camera Structure
Camera Structure Infrared LEDs Antenna Microphone Lens Light Sensor Speaker Micro SD Card Slot Wi-Fi Configuration Button Ethernet Cable Port Status Light Power Port... -
Page 7: Insert Micro Sd Card
Insert Micro SD Card This camera comes with a built-in card slot which supports up to 128GB Micro SD card. Once you insert the storage card, the camera will automatically start to record and store videos on the storage card. You can view those videos in the ‘Replay’... -
Page 8: Read Before Installing
Read Before Installing 1. Keep the Outdoor Bullet Cam and all accessories out of reach of children and pets. 2. Power supply voltage that is required to operate Outdoor Bullet Cam should be DC12V (≥1000mA). 3. The product can only be used in proper temperature and humidity: Operating temperature: -10°C - 50°C (14°F-122°F) Operating humidity: 0-95%. - Page 9 Set Up with SafeMiraie App Download the SafeMiraie App from App Store or Google Play. Follow the in-app instruction to complete the entire set up process.
-
Page 10: Installation
Installation Check following things before you starting to drill holes on your wall: 1. This camera has been successfully added to your Safemiraie App and is able to stream video. 2. Have planned the cable route. Measured the length of the power cable and ethernet cable (if you plan to use ethernet connection) you will need. - Page 11 Step 2: Before you start to drill, make sure you know the locations of wall-in pipes and electrical wires. (If you are not comfortable with drilling holes, please consult with a licensed electrician) ①Use the provided drilling template to mark the position of holes on your wall.
- Page 12 ③Tighten the provided screws to secure the camera.
- Page 13 Step 3 (Wired Connection): Read this step if you are using wired connection, otherwise skip this step. A weatherproof tube is needed for Ethernet Cable to avoid leaking water into Ethernet Cable Port. Make sure the cable works. Insert the cable into the weatherproof tube, and then connect it to the Ethernet cable port of your Camera.
- Page 14 Step 4: Screw the plastic flange-nut counterclockwise over the base of the camera, point the camera to your designate direction, then screw the plastic the plastic flange-nut. 90° 360° 360°...
-
Page 15: Status Light
Status Light This camera uses status light to communicate. Status Light Description Solid Green Online Wi-Fi Configuration Mode Rapidly Flashing green Offline None... - Page 16 Protect Plan Protect Plan provides optional advanced features for home security, and supports multiple devices. Continuous Video Recording: Records what's happening for 24/7 and saves everything in the background, you can replay to catch anything you missed. Event Video Recording: Automatically records a video clip when a motion is detected, and push it to your phone instantly.
- Page 17 Feel free to contact us for additional help support@mpwsafe.com Room 202, No. 6, 5th Alley, Xiangjiaotang New Village, Xiangjiaotang Community, Bantian Street, Longgang District, Shenzhen, China, 518057 Shenzhen Baishihao Electronic Technology Co., Ltd. support@mpwsafe.com www.mpwsafe.com...
