AK301C
CO DS3
CONTENTS
Overview ....................................................................... 1
Safety and Warnings ..................................................... 2
Introduction ................................................................... 4
Installation ..................................................................... 5
Mounting the Shelf ................................................... 5
Connections .............................................................. 6
Front Panel ............................................................... 8
Provisioning .................................................................. 9
Alarms ......................................................................... 24
Performance Monitoring ............................................. 26
Tools & Menu bar ....................................................... 32
Warranty and Customer Service.................................. 35
FIGURES
Figure 1 Typical Application Setup .............................. 4
Figure 2 Flange Mounting Positions ............................. 5
Figure 3 Wall Mounting ................................................ 5
Figure 4 AK100S Back Panel ....................................... 6
Figure 5 Power Block .................................................... 6
Figure 6 AK3000 Family Front Panel ........................... 8
TABLES
Table 2 RS-232 DB9 Pin Assignments ......................... 7
Table 3 Card Front Panel Indicators .............................. 8
Table 4 Fan Module ACO Pushbutton .......................... 8
Table 6 DS3 Provisioning Parameters ......................... 14
Table 7 DS1 Provisioning Parameters ......................... 15
Table 8 ATM Inband Parameters ................................ 16
Table 8 AUX Alarm Parameters ................................. 17
Table 9 SNMP Parameters .......................................... 18
Table 11 MSPAN Advanced Parameters .................... 20
Table 12 PAIR Provisioning Parameters ..................... 21
Table 13 Alarm Log .................................................... 24
Table 14 Alarm History .............................................. 25
Table 16 MSPAN PM Parameters .............................. 27

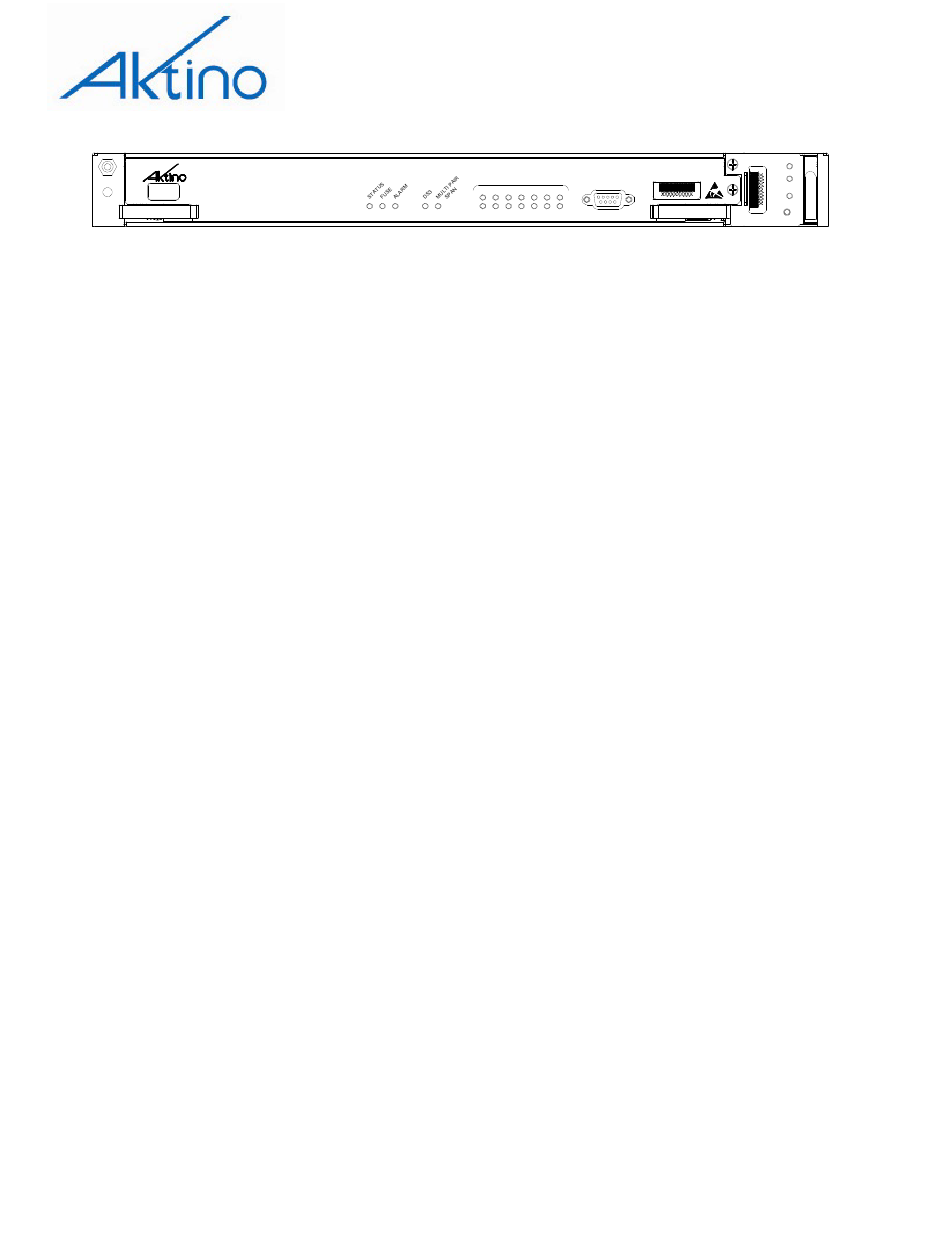

AK3000 DS3 Product Family
AK3000 DS3 System
Installation and Maintenance Practice
PAIR STATUS
1
2
3
4
5
STATUS
8
9
10
11
12


Overview


The Aktino 3000 product family enables point to point

transport of DS3 and fractional DS3 services over 2 to

14 bonded pairs of copper, optimized for CSA distances

(9kft 26AWG or 12kft 24AWG). The AK3000 DS3

family consists of DS3 Central Office and remote cards

that plug into a 1RU high housing for 19" and 23" racks

and for wall mounting. The remote card is either line

powered by the Central Office card or locally powered.

Aktino products utilize a technology MIMO on DMT

which uses coordinated signal processing over multiple

transceivers
improvements over standard DSL technology.
The AK3000 family consists of the Central Office (CO)
unit, the remote unit, and the 1RU shelf. Refer to the
Warranty and Customer Service section for more
information.
Inspection
After unpacking the unit, check for any damage. If
damage is discovered, report it to the transportation
company and to Aktino, Inc. Refer to the Warranty and
Customer Service section for more information.
1
CRAFT
6
7
13
14
to
achieve
significant
Document 180-0005-001 R10
BAT A
BAT B
FAN
ALM
ACO
AK100F
performance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aktino 3000 Series

  • Page 1: Table Of Contents

    TABLES damage is discovered, report it to the transportation Table 1 MSPAN Connector Pin Assignments....7  company and to Aktino, Inc. Refer to the Warranty and Table 2 RS-232 DB9 Pin Assignments ......7  Customer Service section for more information.
  • Page 2: Safety And Warnings

    Improper grounding may result in an electrical shock. The Aktino unit contains a battery for the Real Time Clock as a convenience to maintain date and time when Follow local grounding practice to ensure a good frame unit is unplugged.
  • Page 3 The 300V dc solid-state protector shall have a voltage rating of the wiring of the telecommunication maximum impulse breakdown voltage of 400 V at 100 network is adequate for the normal Aktino unit’s circuit V/µsec, 1000 V/µsec and 10000 V/µsec. voltage, together with superimposed transients.
  • Page 4: Introduction

    Introduction Aktino’s AK3000 family allows transport of DS3 or The Aktino units are carrier class providing all the Fractional DS3 over bonded copper pairs. A link required and familiar CO connections. Ease of consists of a CO unit and an RT unit. Two types of CO...
  • Page 5: Installation

    The AK100S chassis is used for both the CO and RT installations. Mounting the Shelf The Aktino AK3000 Family’s shelf (AK100S) can be The unit can also be mounted on a wall using either 19 mounted in either 19 inch or 23 inch racks. The 19 and or 23 inch flanges.
  • Page 6: Connections

    BITS ALARM IN CRIT -48V A CLK IN RTN A -48V B ALARM RTN B Protective cap Tie wrap points MANAGEMENT MODEM BITS ALARM IN CRIT -48V A CLK IN RTN A -48V B ALARM RTN B ETHERNET 1 ETHERNET 2 OPEN POWER MULTI PAIR SPAN...
  • Page 7: Table 1 Mspan Connector Pin Assignments

    The MSPAN connector (see Figure 4) is used to activation of ACO. The BITS Clock wirewrap pins are connect the Aktino 3000 to the outside plant pairs. reserved for future use. The table below specifies the 50 pin AMP connector pin assignments.
  • Page 8: Front Panel

    ½ second, deactivates audio (not Normal visual) relay for all active alarms. The Solid green Minor Alarm active ALARM LED on the Aktino card ALARM Solid yellow Critical or Major Alarm indicates ACO has been activated. Note Solid red...
  • Page 9: Provisioning

    CDROM package. Note: AktinoWeb web browser is an alternative method of maintenance access. Simply enter the IP address of the Aktino unit in the address bar of a web browser. Features not available in AktinoWeb vs. AktinoView are: ·...
  • Page 10 Provisioning with AktinoView V3 Note: Use AktinoView V3 to access the most up to date features available. AktinoView V3 System Requirements The minimum AktinoView system requirements are: • Pentium 4 processor-base computer • Recommended 256Mb, Minimum 128Mb • Microsoft Windows 2000, XP, or NT •...
  • Page 11 After logging on, the main status screen will appear: Main Status Screen The window components consist of the following Workspace/Summary area sections: The workspace/summary area shows the CO and RT units for a quick look at the state of the system. Note Menu bar that by positioning the mouse over items in the File, Action, and Help along with action icons.
  • Page 12 Inventory Screen Selecting the Inventory tab displays information on the system. Parameter Values Unit CO or RT unit Description Unit description Serial Serial number of unit CLEI Code Telcordia assigned CLEI code MAC Address Each unit has a MAC address Hardware Version Hardware version of the unit Software Version...
  • Page 13: Table 5 Provisioning Equipment Parameters

    String describing the System Contact (CO Only) String describing contact Location (CO only) String describing location IP Address IP address of the Aktino unit Subnet mask for the Aktino Subnet Mask unit Gateway address for the Aktino Gateway Address unit...
  • Page 14: Table 6 Ds3 Provisioning Parameters

    Provisioning DS3 Configuration Screen Selecting the DS3 tab under CO Unit allows DS3 provisioning of the system. Right click on the unit to bring up DS3 provisioning popup. See Table 6 for parameters and values. Note that some of the parameters changed on the CO are also reflected on the RT.
  • Page 15: Table 7 Ds1 Provisioning Parameters

    Provisioning DS1 Configuration Screen Selecting the DS1 tab under CO Unit allows DS3 tributary provisioning of the system. Right click on the Index to bring up DS1 configuration popup. Note that this screen is only active if DS3 Payload Type is set to Channelized DS3 (TDM).
  • Page 16: Table 8 Atm Inband Parameters

    DS3 Payload Type must be in an ATM mode allow setting this item. See Table 8 for parameters and values. Table 8 ATM Inband Parameters Parameter Values Virtual Path Identifier Virtual Circuit Identifier IP address of the Aktino unit IP Address (must be in a different subnet vs. the local management port) Subnet Subnet mask for the Aktino unit...
  • Page 17: Table 8 Aux Alarm Parameters

    Selecting the AUX Alarms tab under Provisioning allows external alarm provisioning of the system. These parameters determine how the AUX1 and AUX2 input pins on the Aktino units react. Note that the alarm input pins are Normally Open (NO). Right click on the Index to bring up the Aux Alarm configuration popup. See Table 9 for parameters and values.
  • Page 18: Table 9 Snmp Parameters

    Provisioning SNMP Screen Selecting the SNMP tab allows setting SNMP receiver parameters. Right click on the Index to bring up the Aux Alarm configuration popup. See Table 10 below for details. Table 10 SNMP Parameters Parameter Values SNMP Trap receiver IP IP Address Address Community...
  • Page 19 Provisioning MSPAN Screen Selecting the MSPAN tab under Provisioning allows MSPAN provisioning of the system. Right click on the Parameters line to bring up the either the General or Advanced Parameters. See Table 11 and Table 12 for parameters and values. AK3000 DS3 Product Family Document 180-0005-001 R10...
  • Page 20: Table 10 Mspan Provisioning Parameters

    Table 11 MSPAN Provisioning Parameters Parameter Values Circuit ID Circuit ID, max 48 characters MSPAN Mode Symmetric (R2.10 or higher) Asymmetric (Valid only when Payload Type is ATM or Scrambled ATM) 0 to 44224 Kbps MSPAN Rate (Valid if Payload Type is ATM or Scrambled ATM. MSPAN Rate for Clear Channel Rate Upstream Payload Type is set to 44736 Kbps.
  • Page 21: Table 12 Pair Provisioning Parameters

    Provisioning Pair Screen Selecting the PAIR tab under Provisioning allows PAIR provisioning of the system. Right click on the Pair to bring up the Pair configuration popup. See Table 13 for parameters and values. Table 13 PAIR Provisioning Parameters Parameter Values Circuit ID Circuit ID of each pair...
  • Page 22 Provisioning DS3 Loopback Screen Selecting the DS3 Loopback tab under Provisioning allows loopbacks of the system. Right click on the Unit to bring up the Loopback popup as shown below. When a loopback is set, right clicking on the Unit will provide release loopback.
  • Page 23 Provisioning Craft Access Screen Selecting the Craft Access tab under Provisioning allows management administration. Click on Create to bring up the Craft Access popup as shown below. AK3000 DS3 Product Family Document 180-0005-001 R10...
  • Page 24: Alarms

    Alarms Alarms CO and RT Alarm Log The Alarm Log is a list of alarms that have occurred on the CO (CO tab) and on the RT (RT tab). Select Refresh to update screen. Any of the column headings can be clicked to sort by that column. See Table 14 for descriptions of columns.
  • Page 25: Table 14 Alarm History

    Alarms CO and RT Alarm History The Alarm History is a summary of alarms that have occurred on the CO (CO tab) and on the RT (RT tab). Select Refresh to update screen. Any of the column headings can be clicked to sort by that column. See Table 15 for description of columns. Table 15 Alarm History Parameter Definition...
  • Page 26: Performance Monitoring

    Parameter Definition Ingress Cell Number of ATM cells flowing into Path Errored Seconds Count either CO or RT Aktino DS3 port ESCP Path Errored Seconds CP-bit Parity (ATM modes only) Egress Cell Number of ATM cells flowing out of SESP...
  • Page 27: Table 16 Mspan Pm Parameters

    PM CO and RT MSPAN Performance Monitoring The MultiPair Span Performance Monitoring (PM) information is displayed on the MSPAN tab. PM is available for either the CO (CO tab) or RT (RT tab) side. The display shows current values at the top of the window. Ninety six fifteen minute time period bins and seven 24 hour time period bins display the MultiPair Span’s performance monitoring.
  • Page 28 Table 16 MSPAN PM Parameters (continued) Parameter Abbreviation Units Definition CRC error Uncorrectable error on the MSPAN. There should be corresponding ES on pairs. Error Seconds Seconds One or more crcs in a second Severely Seconds 44 or more crc in a second or Error Seconds MSPAN loss of signal (LOS) or MSPAN loss of frame (LOF)
  • Page 29: Table 17 Summary Pm Monitoring Parameters

    PM CO and RT Pair Summary Performance Monitoring A summary of all pairs for either CO (CO tab) or RT (RT tab) side can be displayed by clicking Summary under PM Pair. Select Refresh to update screen. See Table 18 for definitions of the pair summary screen. Table 18 Summary PM Monitoring Parameters Parameter Definition...
  • Page 30: Table 18 Current 15 Minutes & 24 Hours Pair Pm

    PM CO and RT Pair Current 15 Minutes and 24 Hours Performance Monitoring The current fifteen minute time period and current 24 hour time period pair performance monitoring is display under PM CO (CO tab) or RT (RT tab) Current 15 Minutes and Current 24 Hours tabs. Select Refresh to update screen. See Table 19 for definitions of the current pair screen.
  • Page 31 PM CO and RT Pair History Performance Monitoring Ninety six fifteen minute time period bins and seven 24 hour time period bins display the history of the pair’s performance monitoring. Select Refresh to update screen. Select the Pair by the pull down menu indicated. See Table 19 above for definitions of the current pair screen.
  • Page 32: Tools & Menu Bar

    Tools & Menu bar The top of the AktinoView window contains a menu bar with drop down menus. In addition, the same functionality is available on the Tools tab. Right clicking on a slot number under the Tools tab brings up the indicated menu. Software Upgrade- CO Only upgrades the CO unit only Software Upgrade- RT only upgrades the RT unit only.
  • Page 33 File, then Connect to… allows connection to other Aktino systems. The Action Menu allows System Backup and Restore. This saves and restores the systems settings. Alarm log, alarm history, and Performance Monitoring (PM) can be exported using the Action pulldown as shown below. The output is in comma separated values Excel spreadsheet format.
  • Page 34 • Alarm, DS3 Status, System Status, Fuse Management interfaces • MSPAN and Outside Plant Pair Status • Craft EIA-232 DB9 • Modem EIA-232 DB9 Network Management • 10/100BaseT RJ45 • TL1 (LFACS/TIRKS/NMA OSMINE) • AktinoView GUI • Aktino EMS AK3000 DS3 Product Family Document 180-0005-001 R10...
  • Page 35: Warranty And Customer Service

    Warranty and Customer Service Aktino will replace or repair this product within the warranty period if it does not meet its published Aktino Repair specifications or fails while in service. Warranty Return for Repair/Upgrade: information can be found in your Aktino customer...
