Cyber Sciences CyTime SER-32e Quick Start Manual

Initial Con guration – Device Display
The CyTime SER-32e features a 4.3" color touchscreen
display that supports initial con guration of Ethernet
communication parameters. To con gure Ethernet or
con rm settings, select the Setup icon ( con rm settings, select the Setup icon (
To con gure Ethernet communications, select the "EDIT"
button and step through the con guration wizard.
Con guration – Web Interface
Con guring the CyTime SER-32e can be accomplished
using the device's secure web server.
To connect a PC to the SER-32e:
1) Connect your PC to the SER using a standard Ethernet
patch cable.
2) Set PC to use static IP address 169.254.0.10
(LAN 1 or LAN 2)
3) Apply power to the SER.
4) Open a standard web browser, such as Microsoft
Edge or Google Chrome .
TM TM
5) Type the SER's default IP address (169.254.0.10) into
your web browser.
6) Enter the default user name (admin) and password
(csi_serial number) and click "Login".
7) Click the Setup tab to con gure Communications,
Time, Inputs, Groups and device Administration.
). ).
SER-32e
Users Guide
For More Information on Sequence of Events
Recorders, Visit: www.cyber-sciences.com
Cyber Sciences, Inc. (CSI)
229 Castlewood Drive, Suite E
Murfreesboro, TN 37129 USA
Tel: +1 615-890-6709
Fax: +1 615-439-1651
The service marks, CyTime, and the Cyber Sciences stylized logo are trademarks
of Cyber Sciences. All other trademarks are the property of their respective
owners.
SER 32
SER-32e
Reference Guide

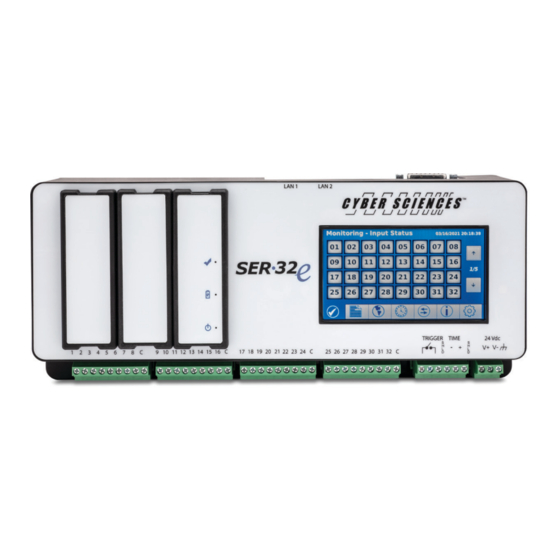

The CyTime SER-32e sequence of events recorder
provides precise time-stamped event reporting for
32 input channels to enable root-cause analysis and
advanced system diagnostics.
Key features include:
- Con gurable event recording
- Event log
- EPSS data log groups
- Operations counters
- Time synchronization (PTP, NTP, IRIG-B, DCF77)
- Time synch master (PTP, IRIG-B, DCF77, 1 per 10)
- Trigger output
- Ethernet communications
- ModbusTCP and RESTful support
- Secure web server
IB-SER32e-03
January -2022
Package Contents:
- SER-32e sequence of events recorder
- Plug-in connectors
- Quick Start Guide
CyTime SER-32e
TM
Quick Start Guide
