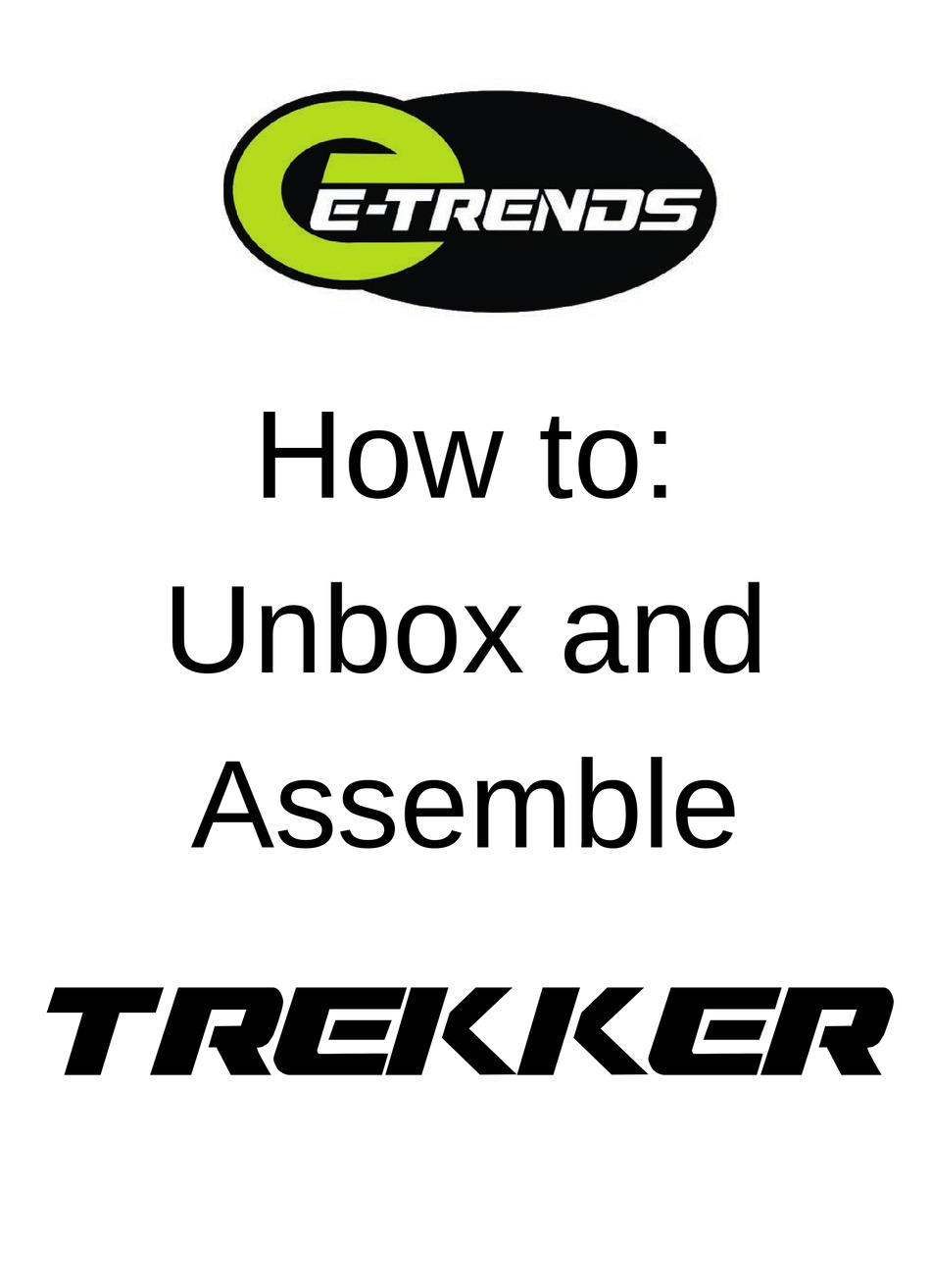

- Page 1 How to: Unbox and Assemble trekker...
- Page 2 Welcome to your new E-Trends Trekker Electric Bike. Let’s get started. Carefully unpack the components and remove all of the transit packaging. Read the manual and keep it for future reference.
- Page 3 You should have all the parts you see here. Remove the keys from the seat clamp.
- Page 4 Undo the stem clamp using the tool supplied Make sure handlebars are centred and pointing straight forward.
- Page 5 Tighten the stem clamp. Insert the wheel skewer and make sure the clamp is opposite the disc.
- Page 6 Insert the wheel making sure the disc is between the pads in the calliper. Secure the wheel with the quick release clamp.
- Page 7 Attach the pedals, noting that these are left and right-handed. These must be fitted on the correct side. Tighten them with the spanner provided. Insert saddle and adjust the height before securing with the quick release clamp.
- Page 8 Use the hand-pump supplied to inflate front and rear tyres. Attach the hose to the tyre valve as shown. Inflate until each tyre is very firm to press.
- Page 9 How to: Charge trekker...
- Page 10 Here’s how to charge your Trekker e-bike battery. With the battery turned off insert the socket into the battery and plug into the mains. Charge time is approximately 4-5 hours.
- Page 11 The battery can also be charged without being in the bike. To check charge - Blue means Fully charged, Green means Partially charged. Red indicates Low charge.
- Page 12 How to: Ride your e- bike trekker...
- Page 13 You are ready to ride your Trekker e-bike! Press the on/off button once on the control panel. Use the S+ and S- buttons to set the level of pedal assistance required.
- Page 14 Twist the grip to change gears, this bike has 7 gears. Pedal to start and the power assist will kick in. Power assistance is provided for speeds up to 15.5mph or 25kmh.
- Page 15 A long press of the CUR* button initiates the walking assistance mode of 3.75 miles per hour or 6 kilometres per hour. Press the button again and the motor will drive the bike as you walk alongside.
- Page 16 Enjoy your new ride For post sales support call us on 01702 208175 or email us at trends@jgdirect.net trekker...
Need help?
Do you have a question about the TREKKER and is the answer not in the manual?
Questions and answers

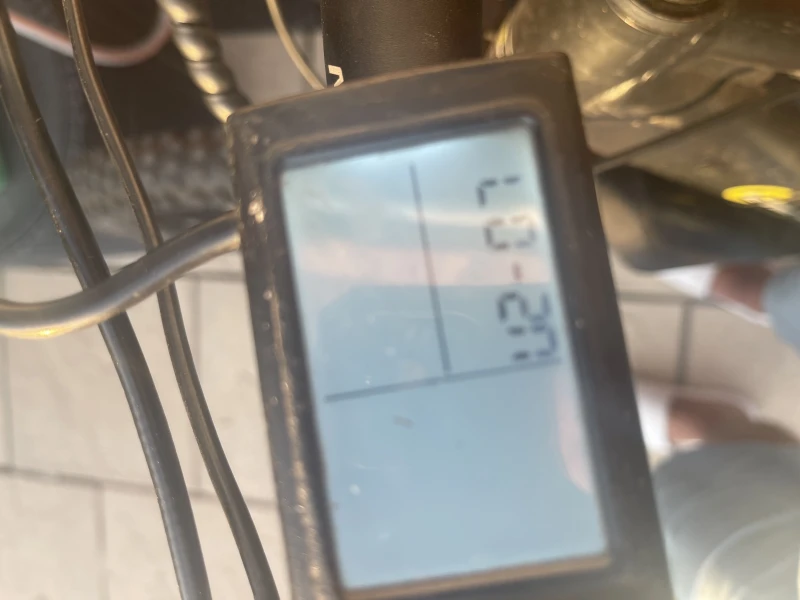

Is this an error code
