Page 1 Laser Range nder Telescope VGR2106...
Page 2: Safety Regulations
Safety regulations Please read the safety regulations and operation guide carefully before operating. Please read all of the operational guide and safety regulations in this manual before operation. Improper operations without complying with this manual guided could cause damage to the device, influence on measurement result or bodily injury to the user. The instrument is not allowed to disassemble or repair in any ways.
Page 3 INSTRUCTION This laser rangefinder is designed for golf. It offers you a quick lock and jolt when you find the flagpole; the golf trajectory compensation mode for actual hitting distance calculation，besides here are the features: Feature: Compact and light； • High accuracy, quick measure and low power consumption；...

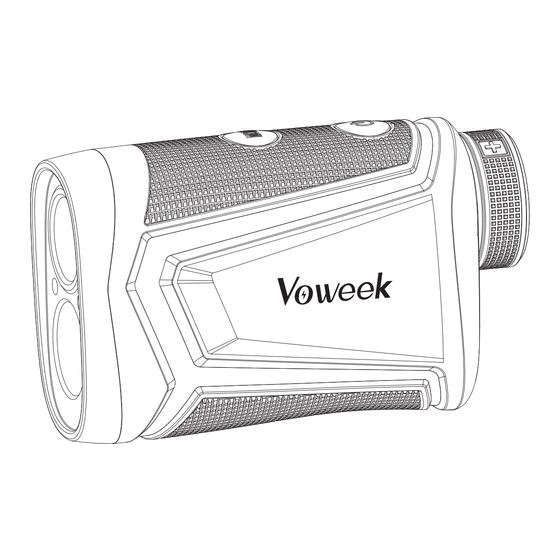

Page 4 LAYOUT Power/ Measure Observation Eyepiece Mode/Set Laser Slide Switch Emitting Focusing Rotary Knob Charging Laser USB Insert Receiving · 03 ·...
Page 5: Specifications
SPECIFICATIONS ITEM SPECIFICATIONS VGR2106 Model 4.25x2.67x1.52 inches Dimensions 5.40 ounes Net Weight 3.28-1094Yd ±(1.09Yd+Dx0.2%)* Measuring Range Unit m(Meter), Yd(Yard) <0.5s (< 131Yd 64ms; ≥ 131Yd 460ms) Measuring Speed Magnification 6X±5% 7.0°±5% Field of View Objective Caliber 0.75 inches Eyepiece Caliber 0.59 inches...
Page 6 Laser Class Class 1 Laser wave length 905nm Battery 3.7V / 750mAh Li-ion Battery Life Charge-discharge 500 times Battery Working Life Single measuring 20000 times after one time full charging Water Resistant IP54 Operating Temperature 14℉~122℉ Height Measurement Slope Measurement Charging Specifications DC5V 1A Type-C Interface Note: The maximum measuring range is based on light color target which is depends on...
Page 7: Operation
OPERATION Inner Display： · 06 ·...
Page 8 1> Power Situation 7> Aiming: target in the center Scanning target: blinking; 2> Flag pole lock mode Unlocked Catch the target: stop blinking 8> Straight Line Measurement mode Locked 3> Setting mode 9> m: Meter / Yd: Yard 4> Vibration mode 10>...
Page 9 START Short press Display when power on Auto Shift Aiming cross It will be turn off automatically after 20s when no operation is made. Waiting for measuring After measuring · 08 ·...
Page 10 FOCUSING Adjust the sight according to “+” and “–” on the knob Turn towards “+” when users cannot see clearly at a close distance, such as farsightedness; Turn towards “–” when users cannot see clearly at a long distance, such as nearsightedness.
Page 11 MODE Short press to select the mode. 1. Straight Line Distance Measurement: Measure the straight-line distance from device to target. 2. Golf Trajectory Compensation: Measure the compensating distance. Distance Measuring Golf Trajectory Compensation · 10 ·...
Page 12: Vibration Setup
UNIT AND VIBRATION SETUP Long press for 2s to set mode： Unit Setup Short press to select unit between M and Y. Short press to vibration setting. Vibration Setup Meter Vibration on Setup Completed Short press to switch on/off the vibration. Short press to save setting result.
Page 13: Slide Switch
SLIDE SWITCH In Golf Competition , It is not permitted for the use of Golf Trajectory Compensation function,Please switch to Flag Pole Lock mode instead: Switch OFF Switch ON Golf Trajectory Compensation Flag Pole Lock · 12 ·...
Page 14 STRAIGHT LINE DISTANCE MEASUREMENT Measure the straight-line distance Single Measurement: Short press once Continuous Measurement: Long press to scan the distance Once Straight-line distance 193Yd 27° 378Yd Result · 13 ·...
Page 15 GOLF MEASUREMENT Long press to enter golf trajectory compensation, actual distance and vertical distance shows on display. Measuring Uphill The measuring distance would be shown Measuring Downhill The measuring distance would be shown · 14 ·...
Page 16 FOR GOLF COMPETITION-FLAG POLE LOCK Under Golf Trajectory Compensation mode, slide the switch to enter flag pole lock. When measuring overlapping targets, long press to get the distance of the nearest target. For example: If it cannot distinguish the target is flag pole or forest, this function will lock the nearest target ---- flag pole.
Page 17: Important Notes
IMPORTANT NOTES The multifunctional range finder does not emitted a visible beam. It uses a non- destructive vision infrared pulse laser, and then from the selected target reflection, back to the optical receiver. By measuring each pulse from the target and back, the laser rangefinder then uses its advanced diagnostic circuit to instantly calculate the measured distance.
Page 18 Charge the device when the icon shows to avoid bigger accuracy under low power condition. DO NOT touch the lens by finger in order to protect the coating on lens. DO NOT disassemble the device which is calibrated by high precise instrument. Please send it to a professional maintenance department when the device gets problems.
Page 19: Packing List
PACKING LIST Meter Gift box Pouch Hand Strap USB Type-C Cable Cleaning Cloth User Manual · 18 ·...
Page 20: Warranty And Service
Warranty and Service ● This product is covered with Voweek product and labor warranty for 12 months from the date of its original purchase. If any problems occur, please contact Voweek support（Support @voweek. com） ● immediately to launch a warranty claim.
