USER MANUAL

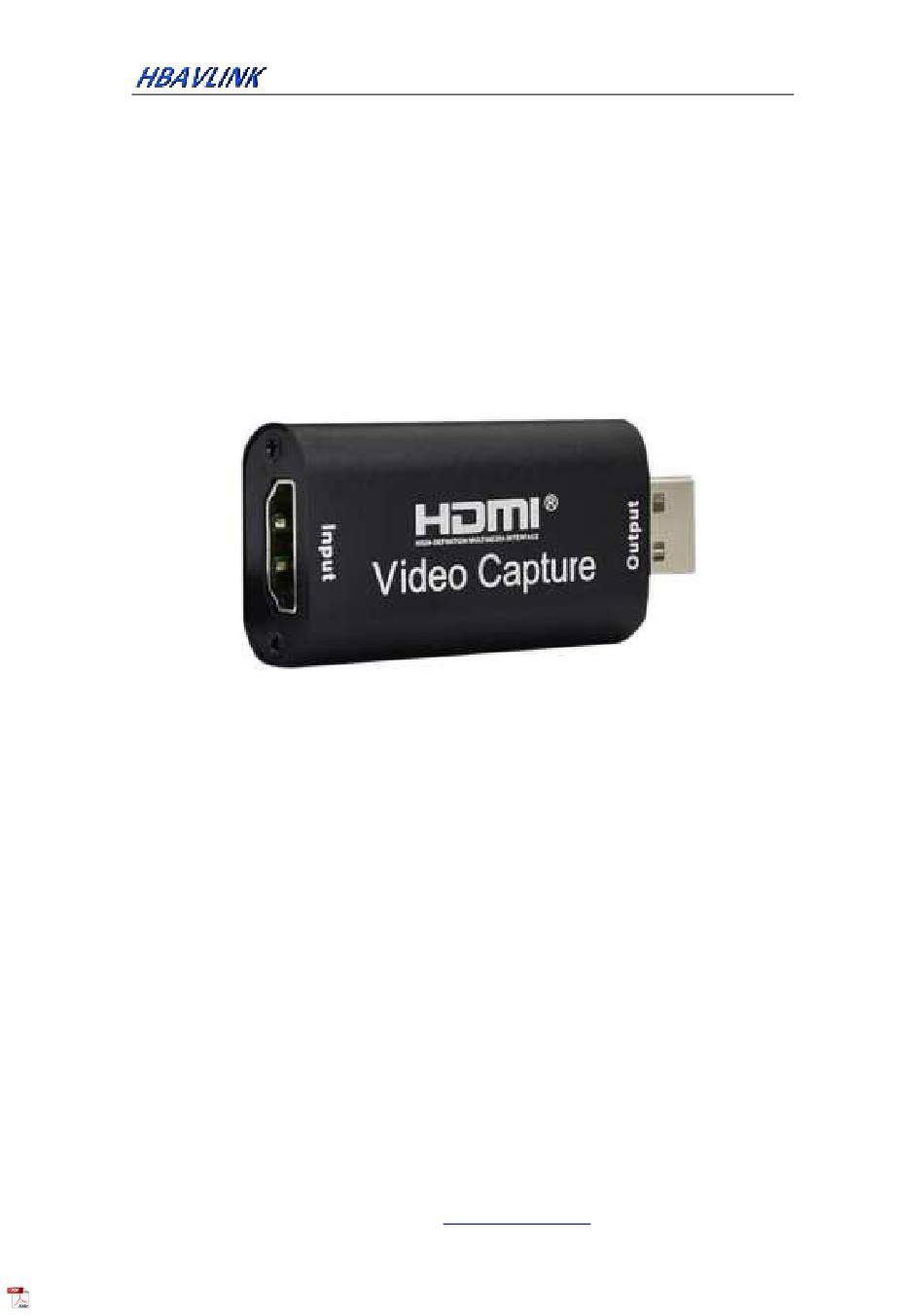

HDMI Video Capture Card
Enjoy the vivid world!
INTRODUCTION
The video capture card can capture both HDMI video and HDMI audio, sending audio and video
signals to computers and smart phones for preview and storage. Suitable for high-definition video
capture, teaching recording, medical image capture & recording, etc.
1
Support E-mail:
David@hbav-link.com
Search "HBAVLINK" in Facebook or Youtube to Join our group for more info. Thank you.
Advertisement
Table of Contents
Summary of Contents for HBAVLINK HB-C10
- Page 1 Suitable for high-definition video capture, teaching recording, medical image capture & recording, etc. Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
- Page 2 Input cable distance...........<=15m, AWG26 HDMI standard cable Max working current..........0. 4A/5VDC Operating Temperature range......(-10 to +55℃) Dimension (LxWxH) ...........64x28x13 (mm) Weight............... 21.4g Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
- Page 3 →Choose "Studio Mode" (double windows mode) →Choose "Start Recording". Operation Example as below (take OBS as an example): 1. Add a new scene, Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
- Page 4 2. Add new source for the scene, and choose "Video Capture Device" as the video source Select USB Video in Device section. Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
- Page 5 If need custom the output resolution, select Custom in Resolution/FPS Type section, Select a resolution and set other parameters. 3. Choose"Studio Mode" (double windows mode) . Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
- Page 6 Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above Memory: 4G RAM Package include: 1. Video capture card..........1PCS 2. User manual ............1PCS Support E-mail: David@hbav-link.com Search “HBAVLINK” in Facebook or Youtube to Join our group for more info. Thank you.
