Summary of Contents for Cycplus M2

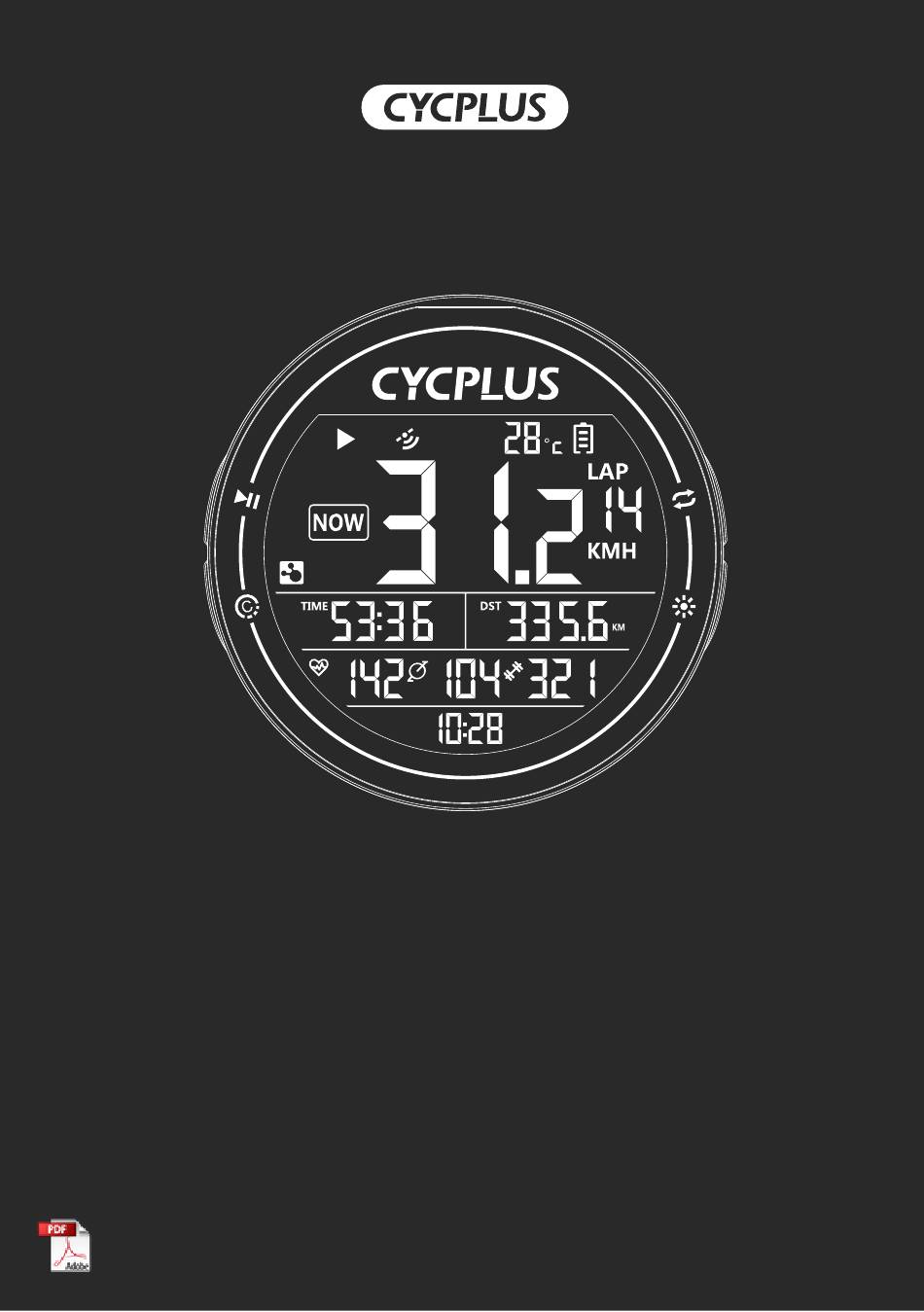

- Page 1 GPS BIKE COMPUTER M2 【01 - 12】 User manual 【13 - 24】 User manual 【25 - 37】 Benutzerhandbuch 【38 - 52】 取扱説明書 【53 - 65】 Manuale d’istruzione 【66 - 78】 Manuel de l'Utilisateur 【79 - 91】 Manual de usuario...
-
Page 2: Package List
1.Package List GPS bike computer Bike computer mount Rubber pad GPS BIKE COMPUTER M2 【01 - 12】 User manual 【13 - 24】 User manual 【25 - 37】 Benutzerhandbuch 【38 - 52】 取扱説明書 【53 - 65】 Manuale d’istruzione 【66 - 78】... -
Page 3: About Function
3.About Function 01. Support 10 types of data including speed, time, distance, altitude (based on barometer), ascent, gradient, ODO, heart rate, cadence, power. 02. Support count circles (need manual control) 03. Support record gps track (need to save manually) 04. Support sync to 3 apps including Xoss, Strava, Trainingpeaks 05. -
Page 4: About Icons
5.About Icons Temperature Recording Battery Current speed Circle Speed unit Connected with speed sensor Trip dist Trip time Current heart Current power rate O’clock Current cadence NO GPS Current Current Odograph Current gradient altitude ascent... - Page 5 Connected to phone Temperature unit Pause recording Max speed Max gradient Max altitude Max power Max heart rate Max cadence Average speed Average Average gradient altitude Average Average heart rate power Average cadence...
-
Page 6: About Buttons
6.About Buttons Press Long press Turn on / Start setting L1 button Turn off Start / Pause recording L2 button Count lap Save record R1 button Switch display content Enter/Quit settings R2 button Turn on/off backlight 7.About Settings There are 6 pages in settings, long press the right button to enter the setting, press right button to switch the pages. - Page 7 02.Wheel circumference setting（C3) Long press [R1 button ] to enter the setting, then press [R1 button ] once. *The screen displays C3 and the below 4 digits flash. Press [L1 button ] to enter setting. *The first digit flashes, indicating that the current digit can be set. Press [R1 button ] to modify the digit.
- Page 8 04.Speed unit setting（C5) Long pres [R1 button ] to enter the setting, then press [R1 button ] thrice. *The screen displays C5 and the KMH is flashing. Press [L1 button ] to start setting. *The first digit flashes, indicating that the current digit can be set. Press [R1 button ] to switch between KMH and MPH.
-
Page 9: About App
Scan QR code or download the APP from Google play or APP store, register by email. Then open the phone Bluetooth. Android User iOS User XOSS APP 02. Connecting M2 computer ① Open “XOSS" ② Choose CYCPLUS M2 ③ Click connect... - Page 10 ⑤ ④ connection succeeded choose the paired computer among the found devices 03. Connecting STRAVA/Training Peaks Find Strava / Training Peaks in your personal files and click connect. Log in Strava / Training Peaks with account and passwords (Google and Facebook account login is not supported) .
- Page 11 04. Updating data and checking the analysis ① Click Sync, the record will be synced to APP. If Strava is connected, the data will be automatically synced to Strava. ② Choose the activity on the exercise page, you will see the cycling data.
-
Page 12: About Notes
9.About Notes 01. Battery charging: When charging with the Type-c, The battery indicator on the screen will light up and blink, and stop blinking to indicate that the battery is fully charged. 02. GPS positioning: After press the [L1 button ] to turn on the computer, the GPS positioning will automatically start and be done about 35 seconds (will be longer for 1st time). -
Page 13: Warranty
Speed sensor, cadence sensor, Supported Peripherals heart rate monitor, powermeter. IPX6 (Rain is ok, but don’t soak long Waterproof time in water) 11.Factory Info Manufacturer: Chengdu Chendian Intelligent Technology Co., Ltd. Warranty: Free replacement or repair in 1 year After sale email: steven@cycplus.com... - Page 14 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
