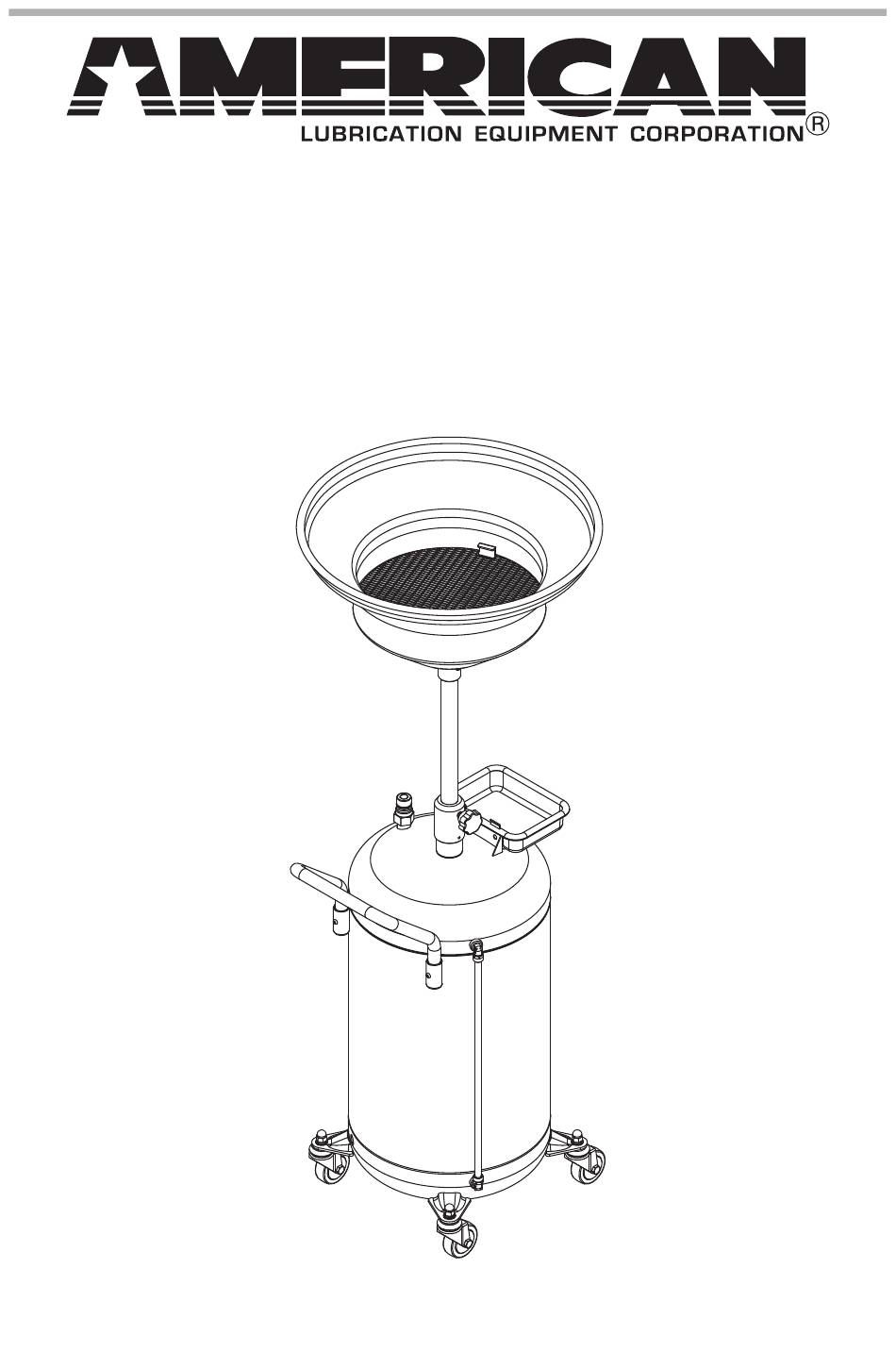

- Page 1 AMERICAN LUBRICATION EQUIPMENT CORPORATION 11212A MCCORMICK ROAD, HUNT VALLEY, MD 21031 WWW.AMERICANLUBE.COM CONTACT: 410-252-9300 TIM-315-COMP2 WASTE OIL DRAIN MANUAL Superior Technology at an Affordable Price ®...
- Page 2 WARNING Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 3 Exploded Parts Diagram and Parts List Description Part No. Description Part No. Filter TIM-317-38 Handle TIM-317-20 Funnel 1" BSP (M) TIM-317-37C Screw M6x1 TIM-317-17 TIM-317-36 Rotor 1"BSP (Male) Nut 1"BSP TIM-317-30 Set Screw M6x1 (Each) TIM-317-34 Spring TIM-317-29 O-ring 32.9mm IDx2.6mm DIA (Pair) TIM-317-35H Knob M12x1.75 TIM-317-26...
- Page 4 Exploded Parts Diagram Description Rotor (Male) O-ring Set Screw Rotor (Female) Tube Seat Knob Spring 3.02.02.399 REV 05/10/22...
