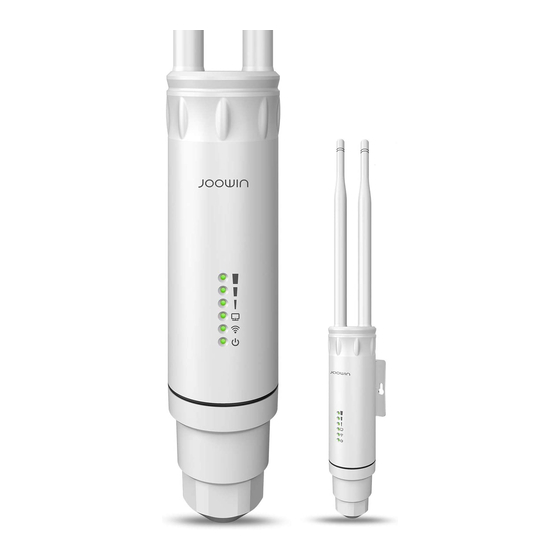

JOOWIN EW74 Installation & Troubleshooting Manual

JOOWIN EW74 Installation & Troubleshooting
1. AP mode & repeater mode set up method:
A. Below is the "AP mode" setup steps (a little difficult but has better signal), also a
video guidance is attached. In "ap mode", you need two network cables.
I. Install AP product and power it by original POE adapter.(do not connect POE
adapter LAN port with your router now to avoid IP conflict) Then select EW74 wifi
and connect it.
II. Open the browser and it will automatically transfer to the menu page or you can
enter "192.168.10.1" to enter menu.
set password：admin
III. Select "AP Mode" and begin to setup.
The IP address should be the same network segment with the upper network. E.g.
my router IP is: 192.168.1.1, so I should set "192.168.1.2" here (can't be
192.168.1.1 ，cann't IP conflict with other devices).
IV. Set the corresponding parameters and save settings. After setup is successful, wait
about 2 minutes.(AP configure the setup program) Then, re-connect wifi "EW74" and
connect the POE adapter LAN port with your router LAN port.
Now you can surf the internet for free.
Note: After set up successfully, you need to enter "192.168.1.2" (depends on the IP
you set earlier in step III) to enter the menu interface.
You can place AP outside （ weatherproof）and POE adapter indoor （ not waterproof） .
But you may need a long network cable to power up the AP.
B. The "repeater mode" setup steps is easy (simple but has some network speed
loss). In "repeater mode", you need only one network cable.
I. Install AP product and power it by original POE adapter. Then select EW74 wifi and
