VETERAN V20L1CN10K1 User Manual

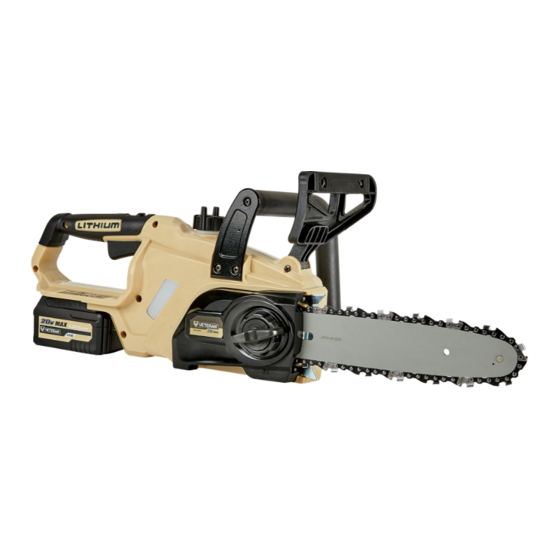

20v max cordless chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

V20L1CN10K1 20V MAX Cordless Chainsaw
Failure to follow all instructions may result in electric shock, fire and/or serious injury.
The term "power tool" below refers to your cordless power tool and the associated charger.
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in the presence of flammable liquids, gases, or dust.
Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool and charger plugs must match the outlet. Never modify the plug in any way. Unmodified
plugs and matching outlets will reduce risk of electric shock.
b) Avoid bodily contact with earthed or grounded surfaces such as pipes, radiators, ranges, and
refrigerators. There is an increased risk of electric shock if your body is grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
Warning: For your personal safety.
READ and UNDERSTAND before use!
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
GENERAL SAFETY INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V20L1CN10K1 and is the answer not in the manual?

Questions and answers

Summary of Contents for VETERAN V20L1CN10K1

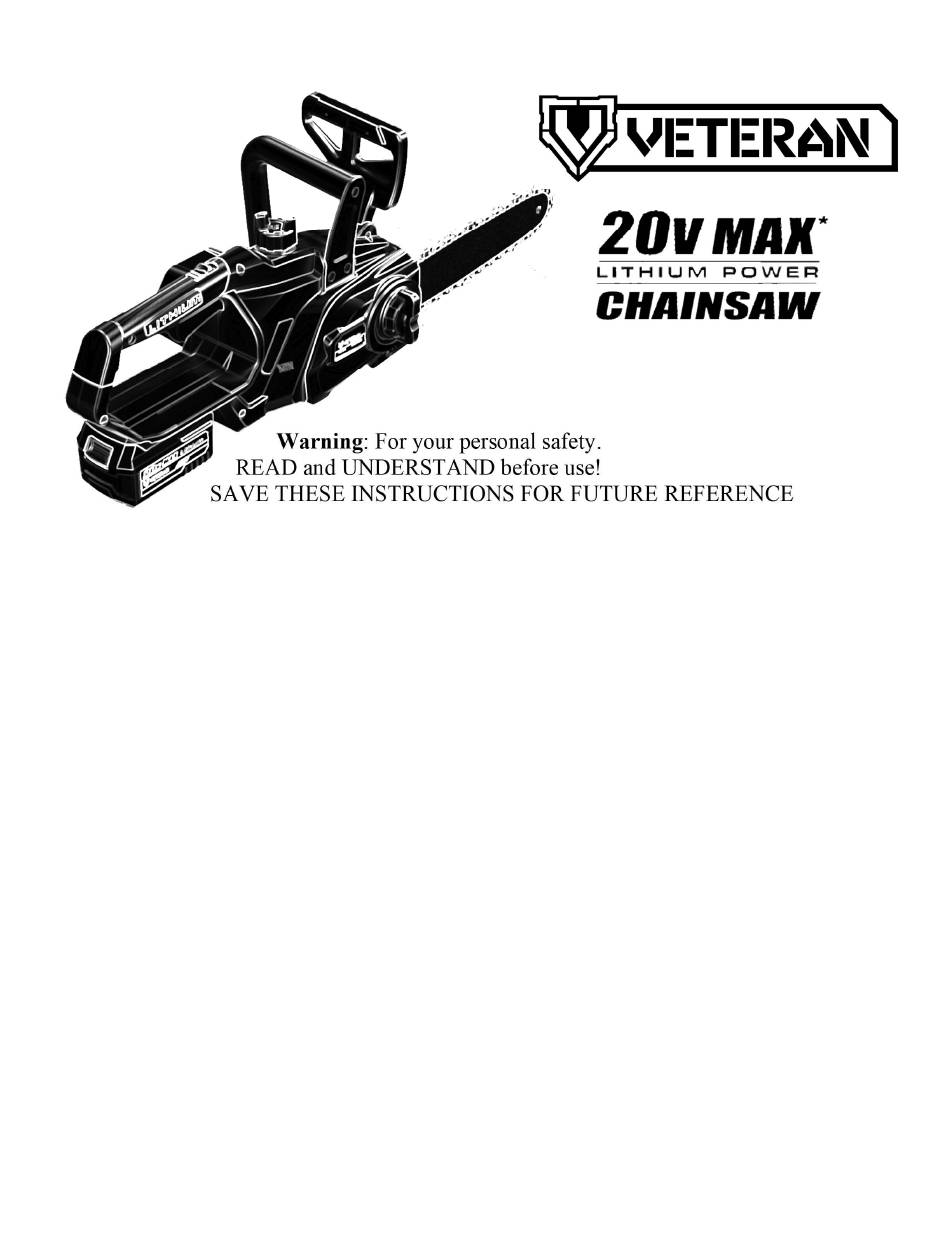

  • Page 1 V20L1CN10K1 20V MAX Cordless Chainsaw Warning: For your personal safety. READ and UNDERSTAND before use! SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE Failure to follow all instructions may result in electric shock, fire and/or serious injury. The term “power tool” below refers to your cordless power tool and the associated charger.
  • Page 2 3) Personal safety a) Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention operating power tools may result in serious personal injury. b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection will reduce personal injuries.
  • Page 3 SAFETY INSTRUCTION FOR BATTERY AND CHARGER WARNING! During the use of tools supplied with batteries, basic safety measures must be followed to reduce fire hazards, electrolyte leakage, electrical shock and personal injury. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injuries.

  • Page 4: Intended Use

    INTENDED USE: This device is specifically intended for sawing wood and felling trees in private areas, unsuitable for sawing plastic, masonry or construction materials that are not made of wood, intended for use in accordance with the descriptions and safety instructions in this operating manual. The equipment is to be used only for its prescribed purpose.

  • Page 5: Additional Safety Instructions For Chainsaws

    ADDITIONAL SAFETY INSTRUCTIONS FOR CHAINSAWS a) Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saw may cause entanglement of your clothing or body with the chain saw.

  • Page 6: Troubleshooting Guide

    Saw teeth point in the Refit the chain with the teeth wrona direction facina in the correct direction TECHNICAL SPECIFICATIONS Product name 20V MAX Cordless Chain Saw V20L1CN10K1 Model Rated voltage 20 MAX VDC Rated no load speed of motor 3000/RPM Chain speed 19.6 fps...

  • Page 7: Parts Diagram

    PARTS DIAGRAM...
  • Page 8 Before using the equipment Charging the battery This battery pack is shipped partially charged – fully charge before using it the first time. a) Plug the charger adapter into power source. The green light on the charger stand will illuminate, indicating the charger is powered. b) Slide the battery all the way into the charger stand until it locks in place with a click.
  • Page 9 Unpacking After unpacking, check the contents for completeness and potential transport damage. If a part is missing or damaged, please contact the seller. a) Open the packaging and remove the device carefully. b) Remove the packaging material as well as the packaging and transport bracing (if available).
  • Page 10 c) Place the saw chain around the guide bar, starting at the top section of the bar. Insert the saw chain in the circumferential groove. When inserting the chain, observe the correct running direction of the chain d) Place the guide bar with the elongated hole on the stud bolt and guide bolt on the chainsaw.
  • Page 11 f) Fit the chain cover. Turn the handwheel clockwise to tighten.(Fig.2) Fig.2 g) Use the adjustment knob to adjust the chain tension.(Fig. 3) The saw chain must not sag, but it should be possible to pull it 1-2 millimeters away from the guide bar in the center of the guide bar.
  • Page 12 WARNING! Always check that the chain brake is working properly before use. If not, do not use the chainsaw and have it repaired by a qualified specialist or a specialist workshop. The chain saw is equipped with protective equipment activated by a chain brake, which brings the chain to a standstill within a fraction of a second in the event of kickback.
  • Page 13 9. Maintain Chain lubrication - CAUTION! The device must only be operated with sufficient chain lubricating oil. Insufficient lubrication reduces the service life of the device. Regularly check the oil level by examining the oil level indicator. Refill the chain oil tank as needed, using specifically designated chainsaw bar oil. Do not add used oil.
  • Page 14 12. Switching on the device WARNING! Make sure the saw chain is not yet applied to the cut and that no other objects are touched. Risk of injury! a) Hold the chainsaw firmly with both hands and make sure that no persons (in particular children) or animals are in the immediate vicinity.

  • Page 15: After Use

    14. OPERATION -- Do not operate the chainsaw with a defective or badly worn cutting chain. Familiarize yourself with chainsaw sawing technique in detail before use Never allow children to operate the chainsaw. Do not allow persons to use the chainsaw, if they have not read the operating manual or received appropriate instructions for the safe and correct use of the chainsaw.

  • Page 16: Maintenance

    MAINTENANCE WARNING! Always remove the battery from the device before all work on the device. There is significant danger of injury due to the sharp cutting teeth! Wear safety gloves. In the interest of your safety! Only perform the maintenance work described here yourself. All other work - in particular motor maintenance and repairs-must be performed by a qualified specialist.
  • Page 17 Cleaning the guide bar oil guide groove • Dismantle the guide bar. • Clean the oil guide groove of dirt with a suitable tool. • Use a plastic spatula, do not use steel tools! • Refit the guard bar. Sharpening the saw chain Special tools are required to sharpen the saw chain;...
