Summary of Contents for Initial DTV-232

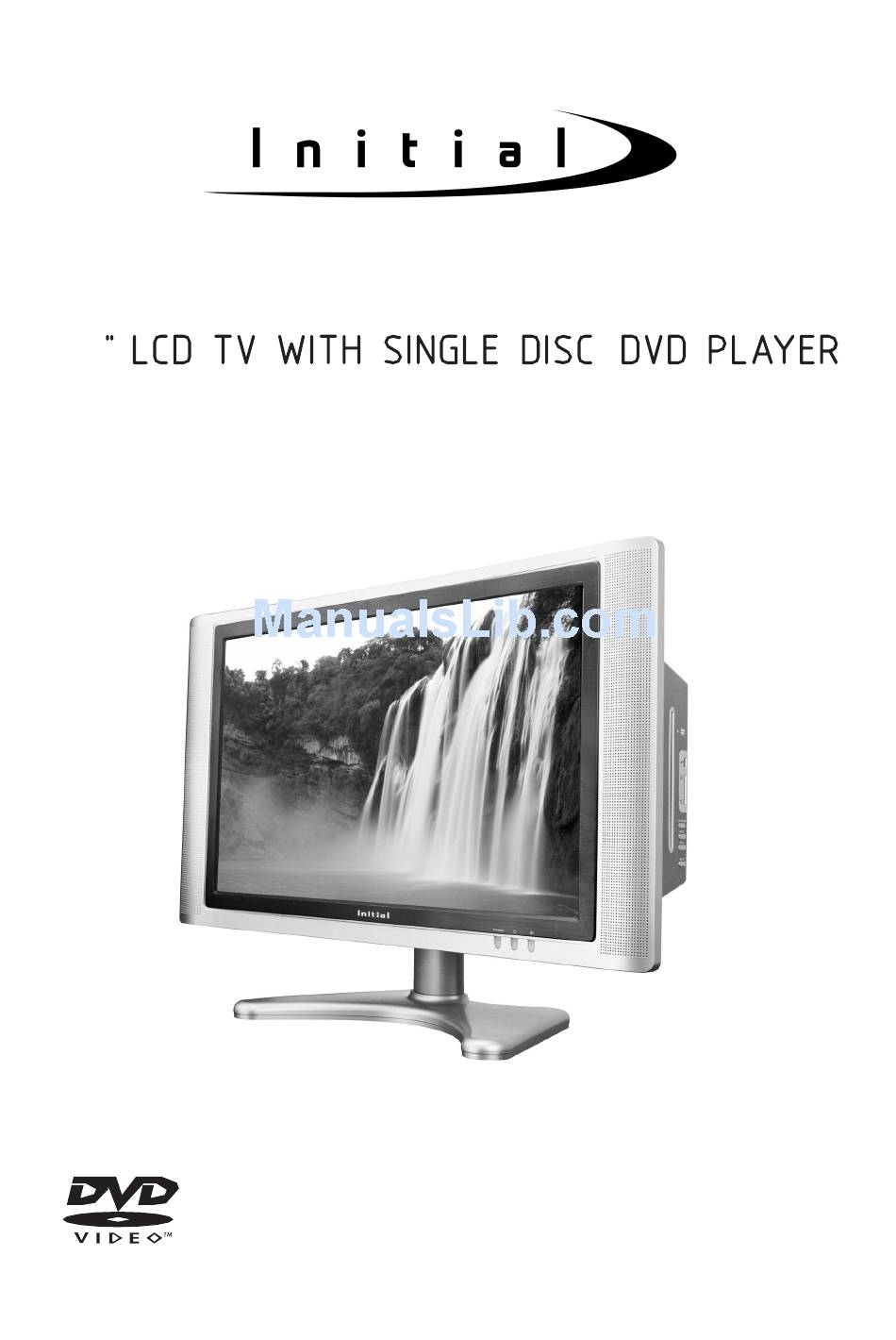

  • Page 1 DTV-232 http://www.initialdvd.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS (FOR TV TUNER) IMPORTANT INFORMATION IMPORTANT SAFETY PRECAUTIONS SUPPLIED ACCESSORIES PREPARATION INSERTING BATTERIES INTO THE REMOTE CONTROL ● USING THE REMOTE CONTROL UNIT ● CAUTIONS REGARDING REMOTE CONTROL UNIT ● FUNCTIONAL OVERVIEW FRONT VIEW ● REAR VIEW ●...
  • Page 3 TABLE OF CONTENTS (FOR DVD PLAYER) BASIC OPERATIONS PLAY DISCS ● PAUSE ● ● VOLUME CONTROL ● DVD MENU PLAY ● SELECT WITH NUMBER BUTTONS ● PLAY DISCS IN VARIOUS WAYS AUDIO MODE ● MUTE ● FAST PLAY ● SLOW PLAY ●...

  • Page 4: Important Information

    ● Correct the equipment into an outlet on a circuit different from that to which the receiver ● is connected. Consult the dealer or an experienced radio, TV technical for help. ● Only shielded interface cable should be used. ●...

  • Page 5: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS The present set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. The safeguards incorporated in the present unit will protect you if you observe the following procedures in installing, using and servicing. The present unit is fully transistorized and does not contain any element that can be repaired by the user.
  • Page 6 17. Water and moisture - Do not use this product near water such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement. TV set shall not be exposed to dripping or slashing and no objects filled with liquid, such as vases, shall be placed on the TV set.

  • Page 7: Supplied Accessories

    SUPPLIED ACCESSORIES Make sure the following accessories are provided with the product. Power adapter POWER OPEN AUTO/USB/CARD 10/0 CAPTION MUTE LAST TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY PAUSE STOP SKIP SEARCH ZOOM SLOW SETUP RETURN P. MODE...

  • Page 8: Preparation

    TV. Objects between the remote control and the sensor may disrupt operation. Effective range is 20 feet but is dependant on what your ● viewing angle is. Range can also be affected by direct sunlight on the TV's ● sensor. page5...

  • Page 9: Functional Overview

    1) REMOTE SENSOR 2) POWER ON INDICATOR 3) STANDBY INDICATOR 4) TV/DVD/AUX/PC: Use to select the AV signal source between: TV, DVD,AUX-Video, AUX-S- Video, AUX-Component,PC. 5) MUTE: Mute the sound. 6) PREV/NEXT (CH+/-): To skip to the previous/next chapter (previous/next channel).

  • Page 10: Rear View

    FUNCTIONAL OVERVIEW REAR VIEW OPTICAL 24V 6A DVD OUTPUT DC INPUT 1) AV OUT (Composite Video and Audio Out) 2) AV1 IN (S-Video and Audio In) 3) AV2 IN ( Composite Video and Audio In) 4) AV3 IN (Component Video and Audio In) 5) PHONES 6) VGA (PC Input) 7) AUDIO (PC Input)

  • Page 11: Remote Control

    4) VOLUME+/-: Use to adjust the volume. 5) LAST: Press to return to the previous channel in normal viewing mode. 6) TV/DVD/AUX/PC: Use to bring up the AV signal source selection screen and use the buttons to select between: TV, DVD/USB/CARD, AUX-Video, AUX-S-Video, AUX- Component,PC, and press the OK button to confirm.

  • Page 12: Functional Overview

    26) STOP: Use to stop the DVD playback. 27) DVD MENU: Use to bring up the DVD root menu. 28) TV MENU: Use to bring up TV menu; and exits TV menu by pressing again. 29) CH+/-:Use to skip to the previous/next channel.

  • Page 13: Connections

    CONNECTIONS page10...
  • Page 14 AV OUT jacks on DTV-232 (Composite Video and Audio output jacks); now you can use the TV Monitor as an external monitor. Signals from the Antenna, AV1, AV2 and Internal DVD player will be available at this point.

  • Page 15: Basic Operations

    TV/DVD/AUX/PC TURNING ON THE POWER 1. Press POWER button on the front panel to turn on the TV set. The POWER indicator lights up green. 2. If the STANDBY indicator still lights up red, press POWER on the remote control to turn the TV set on.

  • Page 16: Watching Tv

    1. Press POWER on the remote control, the image on the screen disappears and the STANDBY indicator lights up red. NOTE: Even though the TV is turned off a small amount of power is used to maintain various functions. SIMPLE BUTTON OPERATIONS FOR CHANGING CHANNELS You can change channels in several ways.

  • Page 17: Using Last On The Remote Unit

    WATCHING TV Using number buttons on the remote unit NUMBER BUTTONS Select the channels directly by pressing the number buttons. EXAMPLE: To select a 1-digit channel (e.g. channel 2): Press 2 . ● To select a 2-digit channel (e.g. channel 12): Press 1 ,followed by 2 .

  • Page 18: Simple Button Operation For Changing Volume/Sound

    WATCHING TV SIMPLE BUTTON OPERATION FOR CHANGING VOLUME/SOUND Changing the volume You can change the volume on the front panel or on the remote control unit. VOLUME+/- 1. Press VOL+ to increase the volume. 2. Press VOL- to decrease the volume.

  • Page 19: Menu Adjustment

    "Settings" and press NOTE: Only when in TV status, there is "TV Tuner"option below "Settings". Make sure press TV MENU to exit TV menu screen before other operatings. Cable 1. Press TV MENU to bring up the TV menu screen.
  • Page 20 5. Press to enter "Fine Tune" screen. 6. Press to tune for a better picture and sound; press OK to return; press TV MENU to exit. Channel skip 1. Press TV MENU to bring up the TV menu screen. 2. Press to select "Settings"...

  • Page 21: Content Blocking

    MENU ADJUSTMENT CONTENT BLOCKING Password 1. Press TV MENU to bring up the TV menu screen. 2. Press to select "Settings" and press 3. Press to enter "Content Blocking (Password)" menu. 4. Press to select "Enter" and press 5. Press to select digit and press 6.

  • Page 22: Picture Adjustment

    ''Picture''. 3. Press to move to ''Brightness''. 4. Press to adjust the picture brightness; press OK to return; press TV MENU to exit. Contrast 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Picture''.

  • Page 23: Audio Adjustment

    ''Audio''. 3. Press to move to ''Bass''. 4. Press to adjust the bass weaker or stronger; press OK to return; press TV MENU to exit. Treble To stress high frequency sound 1. Press TV MENU to bring up the TV menu screen.
  • Page 24 ''MPX''. 4. Press to select a MPX mode; press OK to return; press TV MENU to exit. NOTE: 1. You can also use the MPX button on the remote control to select a MPX mode. 2. Only when in TV status, there is “MPX” option.

  • Page 25: Window Adjustment

    MENU ADJUSTMENT WINDOW ADJUSTMENT PC mode input format SVGA In case of inputting the PC signal other than above signals, ''OUT OF RANGE'' will display. Setup your PC software… … Even if your actual display-setting screen looks different from the windows below, basic setup methods will be applied in most of the case.
  • Page 26 MENU ADJUSTMENT WINDOW ADJUSTMENT (CONTINUED) 2. When the control panel screen appears, click on ''Display'' and a display dialog box displays. 3. Navigate to the ''Setting'' tab on the display dialog box. The correct setting of size (resolution) is ''1024 x 768 pixels''. Check the vertical frequency of your PC.

  • Page 27: Window Adjustment

    ''Window''. 3. Press to move to ''Display Mode''. 4. Press to select a Display mode; press OK to return; press TV MENU to exit. H-Position 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Window''.

  • Page 28: Options Adjustment

    Press TV MENU to bring up the TV menu screen. Press to select ''Options'' and press OSD Background 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Options''. 3. Press to move to ''OSD Background''.
  • Page 29 4. If you want to cancel the " Sleep Time " , you can set the " Sleep Time " on " OFF" . 5. Press TV MENU to exit. Picture Settings Reset 1. Press TV MENU to bring up the TV menu screen. 2. Press to select ''Options''.

  • Page 30: Troubleshooting

    Reception. If so, change the mode to Mono. - Check if the batteries in the Remote control die. Remote control does - Check if any object between IR sensor of the TV and the Remote not work. control does not obstruct.

  • Page 31: Specifications

    PANEL RESOLUTION ACTIVE AREA (mm) VIEWING ANGLE (°,U/D/L/R) CONTRAST RATIO BRIGHTNESS (cd/m2) WITH STAND (mm) DIMENSION WITHOUT STAND (mm) WEIGHT (WITHOUT ACCESSORIES) TV STANDARD TUNING SYSTEM TV-FUNCTION FREQUENCY RANGE STEREO CATV INPUT POWER SOUND OUTPUT POWER CONSUMPTION AV IN COMPONENT...

  • Page 32: Basic Operations

    4. The unit begins to read the disc. 5. Press (PLAY) to play the disc. AFTER STEP 4 IS FINISHED: If playing a DVD, the TV screen shows DVD menu or ● title menu. If playing a CD, press (PLAY), and the unit plays ●...
  • Page 33 BASIC OPERATIONS (FOR DVD PLAYER) Remember, you can only access the Display when you're playing a disc. Also, the Display features are only available if the disc was created with that particular feature (i.e., if you select the Subtitle icon, you won't be able to change the subtitle language unless the author of the disc created the disc with subtitles).
  • Page 34 BASIC OPERATIONS (FOR DVD PLAYER) 1. When the disc is playing, press OSD on the remote to bring up the Display. 2. Press the buttons to highlight the Subtitle icon. 3. Press the buttons to scroll through the subtitle languages that are available on the disc until the subtitle language you want to use appears in the text box.

  • Page 35: Volume Control

    Repeat options until the Repeat option you want is displayed in the text box. 4. The selected repeat option will loop repeatedly until you turn Repeat off. Volume Control Press VOLUME on the TV or amplifier to adjust the ● volume. Press VOLUME on the remote control. ●...

  • Page 36: Select With Number Buttons

    The screen will show the following in order: Different discs may differ in languages available. To select audio channel option, press A.MODE , ● the screen shows the following in order: page33 、 TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY PAUSE STOP SKIP...

  • Page 37: Play Discs In Various Ways

    PLAY DISCS IN VARIOUS WAYS To select audio channel option when for CD playback, press A.MODE . The screen will show the following in order: A.MODE MONO LEFT A.MODE MONO RIGHT A.MODE MIXED MONO A.MODE STEREO You may select one mode. Notes: Different discs differ in languages available.

  • Page 38: Slow Play

    2. Press (PLAY) to resume play at normal speed. Repeat Play This function can be used to repeatedly play a title, chapter, track, or a whole disc. LAST TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY PAUSE STOP SKIP...

  • Page 39: Zoom Play

    ALL". STOP RETURN WIDE ANGLE 1/3 , and page36 Select Subtitles This operation works only with discs with multiple subtitle languages recorded. LAST TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY PAUSE STOP SKIP SEARCH ZOOM SLOW SETUP RETURN P.

  • Page 40: Angles Select

    For example, when you watch a running train, you may watch it from the front, the left window or the right window without stopping it. LAST TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY...

  • Page 41: Shuffle (Random) Play

    PLAY DISCS IN VARIOUS WAYS 1. Press P.MODE until the screen shows: PROGRAM: TRACK (01-20) 01 _ _ 06 _ _ 02 _ _ 07 _ _ 03 _ _ 08 _ _ 04 _ _ 09 _ _ 05 _ _ 10 _ _ EXIT NEXT...

  • Page 42: Menu Setting

    MENU SETTING According to the recorded information and external equipment, set the following functions for the player to obtain the best playing status. LAST TV/DVD TV MENU /AUX/PC DVD TITLE DVD MENU PLAY PAUSE STOP SKIP SEARCH ZOOM SLOW SETUP RETURN P.

  • Page 43: General Setup

    Wide-screen images are shown on the screen, but with some parts cut automatically. 2. NORMAL/LB This is selected when the unit is connected to a normal TV. Wide-screen images are shown on the screen with black bars on the top and bottom of the screen. 3. WIDE This is selected when the unit is connected to a wide-screen TV.

  • Page 44: Audio Setup

    SCREEN SAVER The screen saver image appears when the unit stops or the image is frozen for a few minutes. The screen saver prevents damage to the TV screen. ON: Start the screen saver. ● OFF: Remove the screen saver.

  • Page 45: Video Setup

    MENU SETTING ■ 3D PROCESSING The setting structure is: - - 3D Processing Page - - V SURR Reverb Mode Concert Living Room Hall Bathroom Cave Arena Church Audio Setup V SURR ● Use to turn the above function off. REVERB MODE ●...

  • Page 46: Preferences

    Example: If "PG" is selected, you cannot play DVD video discs rated higher than the PG grade. ■ DEFAULT >> RESET Each function setting returns to the initial status in the factory if you select this option. Note: "PREFERENCES" can only be selected when password ●...

  • Page 47: Kodak Picture Cd Playback

    You can select any of the nine displayed thumbnails by using the Arrow Keys and pressing the "PLAY" key. The thumbnail will be enlarged to fit the TV screen and the slide show will statr. If you desire to display an image indefinitely, press the PAUSE key.

  • Page 48: Usb And Digital Card Play Operation

    2. Insert USB to the " USB" Socket on the side of this unit ; insert MMC/SD/Memory Stick card to the DIGITAL CARD Socket . 3. Press TV/DVD/AUX/PC to select " DVD " mode . 4. Press "DVD/CARD/USB" button on the side of the unit or " AUTO/USB/CARD" button on the remote control to switch : DVD /USB/CARD.

  • Page 49: Troubleshooting

    If you experience the following problems while using the unit, this troubleshooting guide can help you. No sound Check if the unit is connected securely. ● Make sure the TV or amplifier is working properly. ● Make sure the amplifier is set to receive DVD signal ●...

  • Page 50: Technical Specifications

    TECHNICAL SPECIFICATIONS Laser Video system Frequency response Signal/noise ratio Audio distortion + noise Channel separation Dynamic range Audio out (analog audio) Output Video out Power supply Power Consumption This manual is only for your reference, any change to the design and specifications will not be advised. Wavelength 650nm NTSC 20Hz ~ 20KHz±2.5dB...

  • Page 51: Lcd Viewing Angle Adjustment

    LCD VIEWING ANGLE ADJUSTMENT Horizontal Adjustment Vertical Adjustment page48...
