Hot Yoga Heating HYH-32-P User Manual

Hide thumbs Also See for HYH-32-P:
Table of Contents

Advertisement

Quick Links

Download this manual
1-844-yoga hot
(964-2468)
USER MANUAL
HYH-32-P
UNIVERSAL THERMOSTAT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYH-32-P and is the answer not in the manual?

Questions and answers

Related Manuals for Hot Yoga Heating HYH-32-P

Summary of Contents for Hot Yoga Heating HYH-32-P

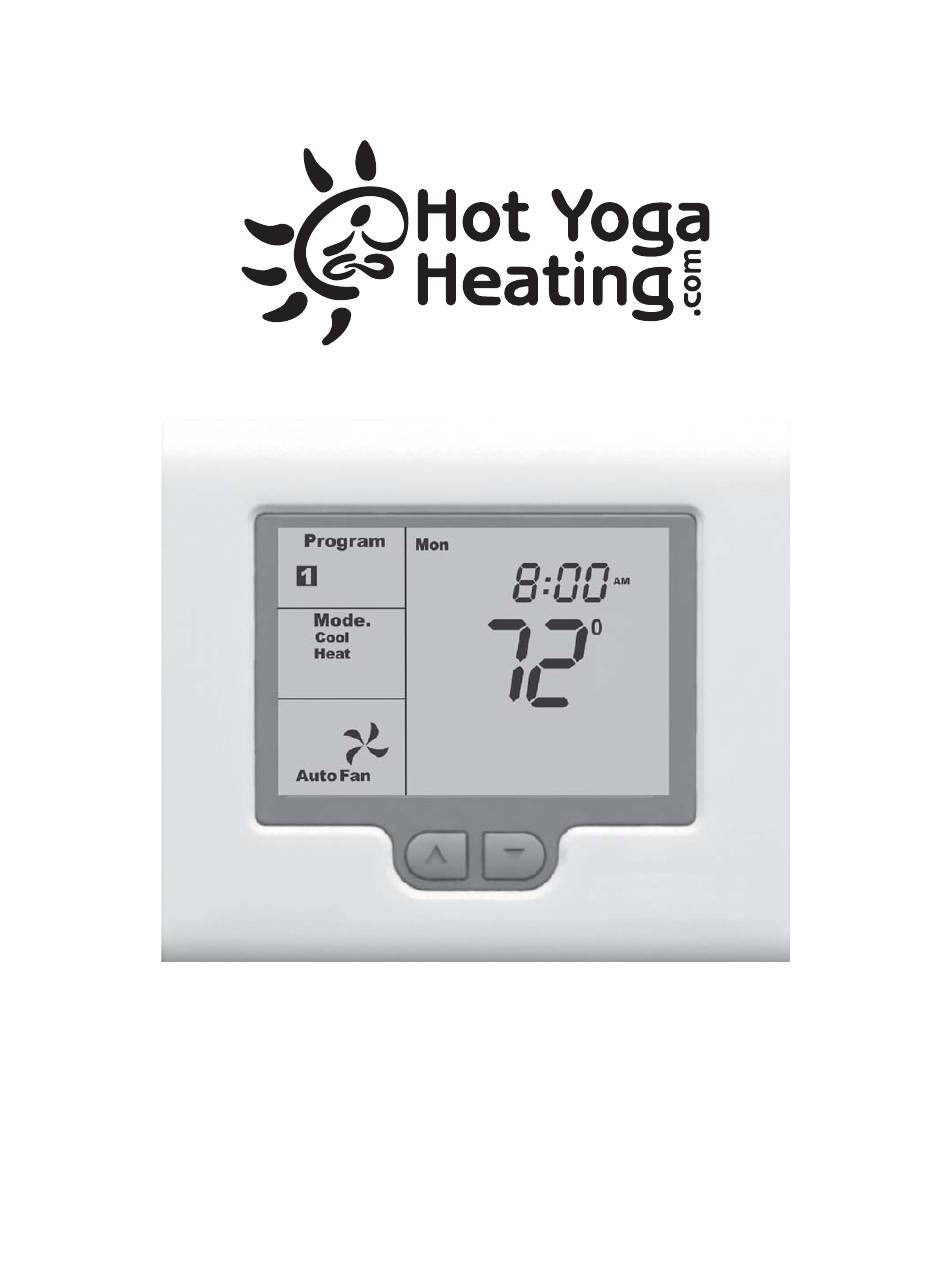

  • Page 1 1-844-yoga hot (964-2468) USER MANUAL HYH-32-P UNIVERSAL THERMOSTAT...
  • Page 3 Great care has been taken in the preparation of this manual. Hot Yoga Heating takes no responsibility for errors or omissions contained in this document. It is the responsibility of the user to ensure that this thermostat, or equipment connected to it is operating to their respective specifications and in a safe manner.

  • Page 4: Residential Programmable Mode

    Residential Programmable Mode MODE Selection Press the MODE key to cycle through the modes of operation and the LCD will display the following: Heat Heat Mode Cool Heat Cool Cool Mode Auto Changeover (Installer must Cool activate this mode) Heat E.
  • Page 5 Programming 4 daily events The thermostat can be programmed to provide 4 individual time-of-day temperature settings for each day of the week. Each event is noted on the LCD by numerals At the start of each event, the programmed heating and cooling temperature will be maintained until the next event starts.
  • Page 6 Press the PROG key again and the same day selected will be shown along with the number which represents the second program event. The hour will flash indicating that this value can now be programmed. Use the up or down arrow key to advance the hour to the second event start time. Make sure that the AM / PM is correct.

  • Page 7: Commercial Programmable Mode

    The LCD will now flash the current program number to remind you that an override is in progress. The override temperature settings will remain in effect until the override time expires or until the next scheduled event (whichever comes first). You can return to the programmed schedule at any time by pressing the O/RIDE key and then pressing it again.
  • Page 8 Setting the clock The thermostat has a real-time clock that is used for programming functions. It is important that the time Start and day of week be set properly so that programmed events run correctly. Cool Heat To set the clock, press the PROG key until the hour flashes on the LCD.
  • Page 9 Press the PROG key again and the LCD will display the word and the temperature setting for the current mode ( Heat Cool ). Press the up or down key to change the setpoint. If Auto mode is selected (shown by both Heat Cool on the display), wait 3 seconds after adjusting the first mode...

  • Page 10: Non-Programmable Mode

    Reviewing Set Temperatures Your can review the set temperatures at any time by simply pressing the up or down arrow key. Advanced Fan Operation In many commercial applications, code requires constant ventilation during occupied periods. The HVAC installer can configure the thermostat to allow the fan to run continuously during the START schedule.

  • Page 11: Common Functions

    Setting the clock The thermostat has a real-time clock. To set the clock, press the PROG key until the hour flashes on the LCD. Use the up or down arrow key to Cool set the current hour along with the AM and PM Heat symbol.
  • Page 12 O/RIDE Key (Override) Residential Programmable Mode O/RIDE key is used to override the programmed schedule and to hold the current set temperature indefinitely or until the O/RIDE button is pressed again. The word HOLD will be displayed on the LCD to confirm this function is active. O/RIDE Key (Override) Commercial Programmable Mode...

  • Page 13: Troubleshooting

    LCD Symbols Program hold active Current running Clock program System Set or room mode temperature TIMER status Outside air temperature Override timer Modbus Keyboard activated communications or control active limit is locked Commissioning mode The thermostat is capable of many advanced control options. Not all LCD symbols may appear on your specific thermostat configuration.
  • Page 14 1-844-yoga hot (964-2468) 06-1301-050718...
