SYNTECHTRON 052D4290 Operation Manual

Operating the Digital Vibration Meter

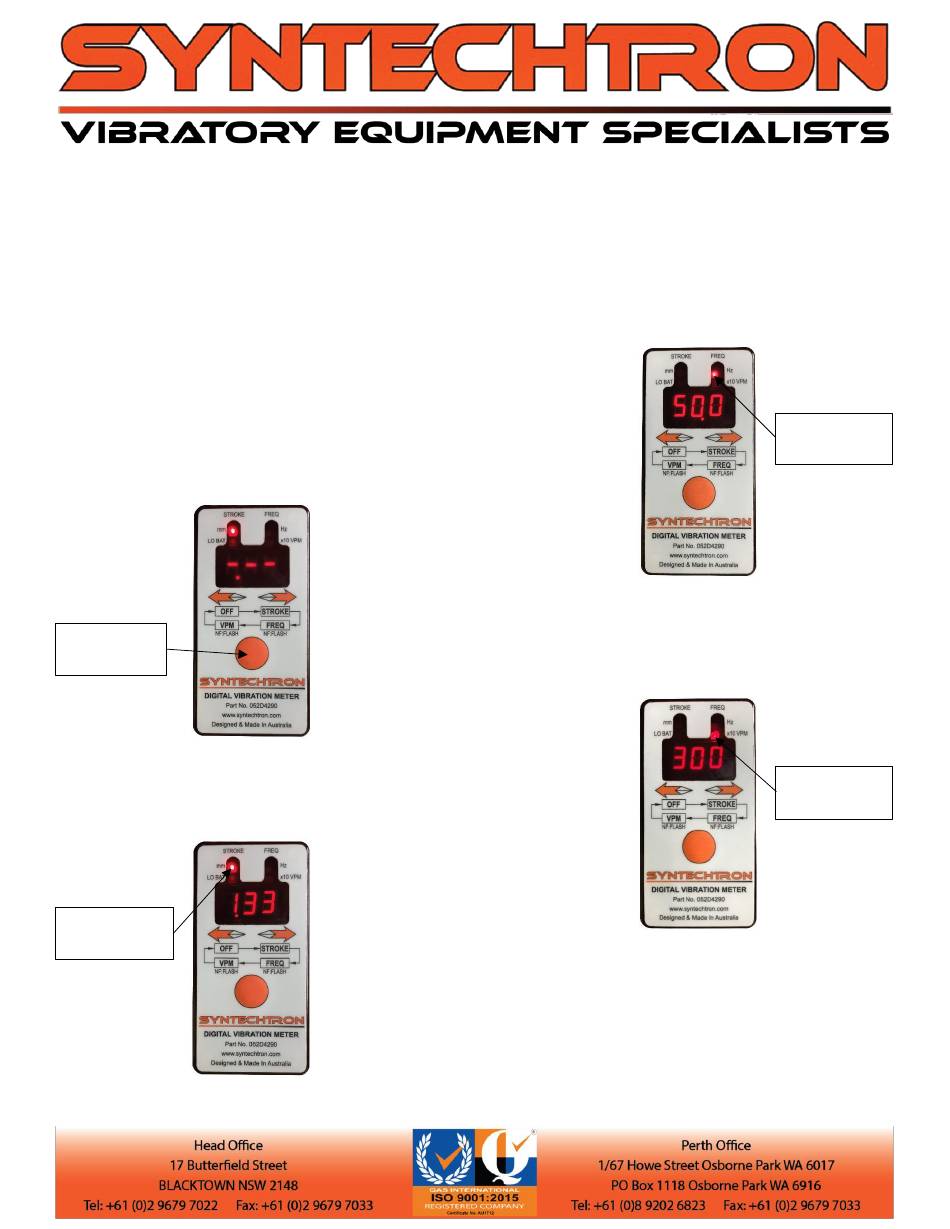

1. Press the button to turn on the DVM. One press of
the button sets the meter to read stroke out in mm
indicated by the LED at the top left of the DVM
display.
2. Place the DVM on to the equipment in the correct
orientation as shown on page 2 (turnover). If the
equipment is not operating DVM will go to standby
as shown below.
Menu Select
Button
3. Once the equipment is in operational the DVM will
change to read stroke amplitude as shown below.
"mm" Mode
LED Indicator

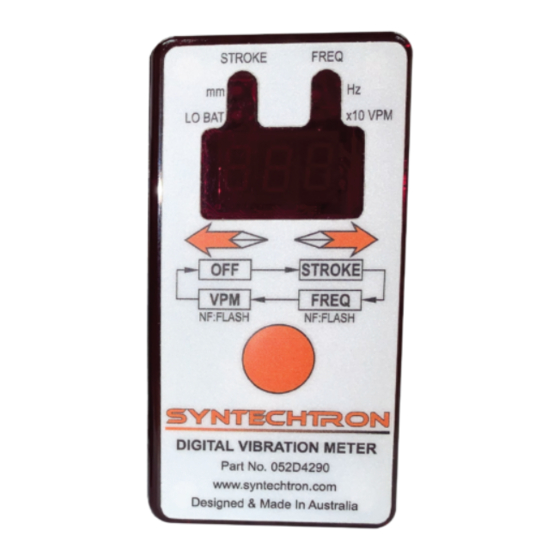

Digital Vibration Meter (DVM)
Operation Manual
4. Press the button again to switch DVM to display the
frequency in which the equipment is operating in
Hertz as shown below.
5. Press the button again to switch DVM to display the
frequency in which the equipment is operating in
Vibrations Per Minute (VPM) as shown below.
Multiply displayed number by 10.
E.g. "300" displayed = 3000vpm.
6. For the natural frequency of a tuned two mass
vibratory equipment simply select which mode you
wish the DVM to measure the natural frequency,
that is in either Hz or VPM. Then switch of the
equipment while the DVM is attached without the
use of braking (if applicable) while the DVM is
attached.
7. Press the button once more to turn off the Digital
Vibration Meter.
"Hz" Mode
LED Indicator
"VPM" Mode
LED Indicator
