Summary of Contents for MC Clean+ S800

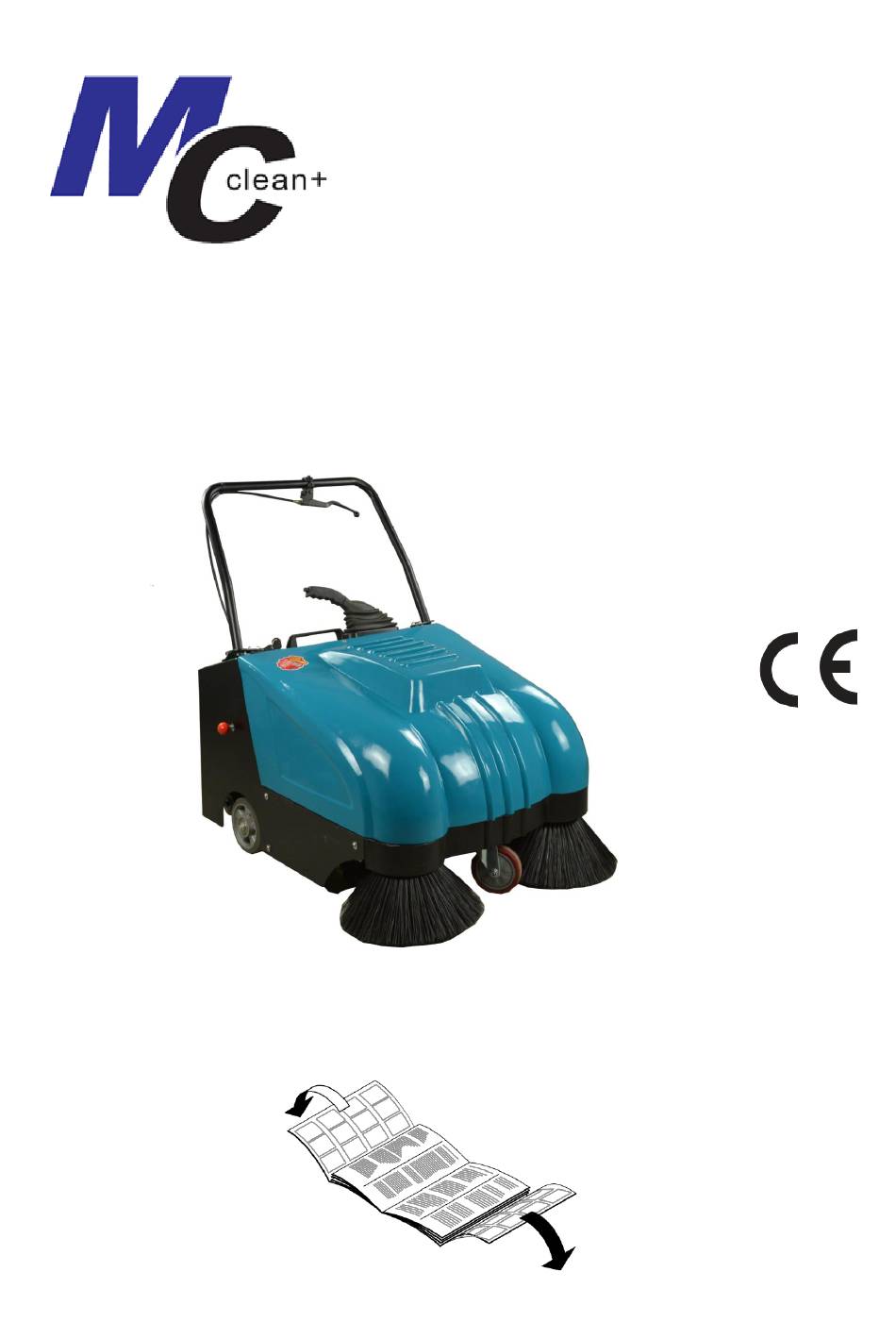

- Page 1 S800 Walk-behind Sweeper Manual USER MANUAL ☆ Safety Notice ☆ This machine walk-behind sweeper, special for cleaning the big area floor, can not be used as other...
- Page 2 The possible accident and estate damage aroused by disobeying the manual. Thanks to select MC S800 sweeper，please read this manual completely before your operation. MC preserves rights to improve the technology without prior notice. So, the machine may not match this manual, figures completely.
- Page 3 Machine description ・・・・・・・・・・・・・・・・・・・・・・・・・・ Main brush height check and adjustment ・・・・・・・・・・・・・・・・・・ How to replace the main brush ・・・・・・・・・・・・・・・・・・・・・・ How to replace the side brush ・・・・・・・・・・・・・・・・・・・・・・・・ Filter ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ How to brake ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Trouble shooting ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Pay attention to 〇 Personnel protection equipment Before your operation, please wear the personnel protection equipment ahead - 3 -...
-
Page 4: Technical Data
Safety cap safety gloves protect glasses face mask safety shoes 〇 In order to make sure long using time Notice During your operation, avoid the things, such as cable, button, iron wire. During your operation, take care of the steps, protect the rubber blades from damage. Add lubrication oil on the gear and oil seal frequently. -
Page 5: Machine Description
(4) Cleaning width: Roller brush + double side brushes 850mm Roller brush 500mm (5) Cleaning area: 4000m (6) Volume of waste container: 15.8Gal (7) Continuous running time: 4(normal temperature) (8) Obstacle-crossing height available: 5cm (9) Filtering area: 2.25m MACHINE DESCRIPTION OPERATION CAPABILITIES This sweeper has been designed and built to clean (by sweeping and vacuuming) smooth and solid floors, in civil and industrial environments and to collect dust and light debris under safe... - Page 6 1,control level 2,side brush lift level 3,handle 4,power switch 5,filter vibration rod 6,big wheel 7,operation handle 8,shell 9,side brush 10,front wheel MAIN BRUSH HEIGHT CHECK AND ADJUSTMENT 1, Check that the main brush is at the correct height from the ground, according to the following procedure: Drive the machine on a level ground.
- Page 7 Turn the wheel to right, low down the height of the main brush; turn the wheel to left, lift up the height of the main brush. When the brush is too worn and can no longer be adjusted, replace it according to the instructions in the following paragraph.
- Page 8 Open the side cover in the left of machine, loose the tight belt and the bolt, pull out the brush, and replace a new brush. How to replace the side brushes 1, Tilt back the machine, let the side brushes be lifted up. 2, Loose the screw, pull down the old brushes, and put on the new brushes, screw them tight.
-
Page 9: How To Brake
Release the two locks Loose the bolt on the press plate Pull out the filter, clean or replace How to brake When you want to stop the machine, step down the brake on the front wheel; When you want to move the machine and start your work, release the brake. TROUBLESHOOTING Trouble Cause... - Page 10 twined by wires Sweeper lefts out dust on Air-filter is blocked Clean the air-filter ground or there is dust coming Dust board is damaged Check the dust board and from side dust board replace it if damaged Sweeping incompletely, The front dust board lifting Repair the dust board, press mechanism doesn’t work lefts out papers, leaves or other...
- Page 11 3. If take apart or modification the machine not under our permission; 4. Damaged because of natural conditions or force majeure reasons; 5. Consumptive accessory (such as Main brush/side brush /belt/belt pulley/filter gauze…etc) 6. 1 year warranty period exceeded or put to use more than 1500 hours. - 11 -...
