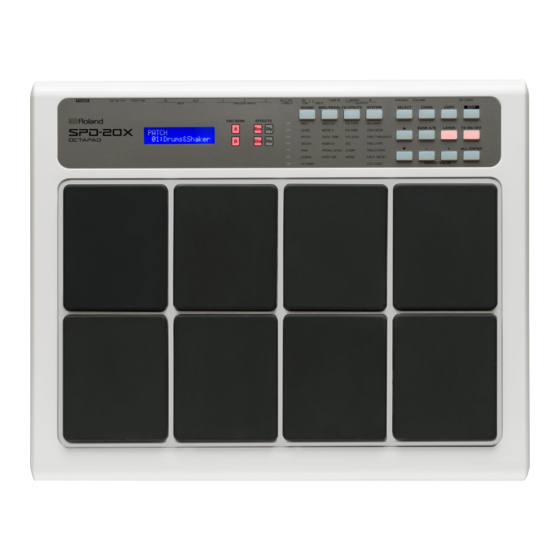

SPD-20X/SPD-20X-BK
SERVICE MANUAL
2017. 11. 24
p. 2 Added parts for SPD-20X-BK.
17057035E0

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPD-20X and is the answer not in the manual?

Questions and answers

Summary of Contents for OCTAPAD SPD-20X

  • Page 1 SPD-20X/SPD-20X-BK SERVICE MANUAL 2017. 11. 24 p. 2 Added parts for SPD-20X-BK. 17057035E0...
  • Page 2 EXPLODED VIEW FOR PAD Part Code Part Name Q’ty 0333661017 TOP CASE (for SPD-20X) 17042121 TOP CASE (for SPD-20X-BK) 0333661018 BOTTOM CASE (for SPD-20X) 17042122 BOTTOM CASE (for SPD-20X-BK) ******* POWER BUTTON ******* CABLE CLAMP ******* KNOB ******* PAD METAL BOARD...
  • Page 3 PACKAGING EXPOLED VIEW SPD-20X UNIT WITH PLASTIC BAG Part Code Description Q’ty Left Protector ******* GIFT BOX ******* PROTECTION SIDE (LEFT) ******* PROTECTION SIDE (RIGHT) Right Protector 0462222619 AC ADPTOR + POWER CORD (220V EU) Adaptor 0462222621 AC ADPTOR + POWER CORD (220V IN)
  • Page 4 SPD-20X SERVICE MANUAL CONNECTION PN:0305000506e SOUND MIDI/PEDAL FX/UTILITY SYSTEM SELECT CHAIN COPY EDIT JP10 PCB CONNECTION CABLE BOM LED99 LED2 SW11 LED11 LED8 LED5 SW10 SW17 LED26 SW14 LED23 LED12 EFFECTS PAD BANK BANK A/B LAYER FX ON/OFF LED15 LED10...
  • Page 5: Test Mode

    (VER 011) Press [▲] to check LCD and LED. To Enter TEST MODE, hold both [SELECT] and [CHAIN] button, and then boot SPD-20X. Display LCD will be full-on and later comes numbers & letters. After that all button/indicator To check Firmware Version: LED blink several times.
  • Page 6 (VER 010) To check SD card: To Enter TEST MODE, hold both [SELECT] and [CHAIN] button, and then boot SPD-20X. After Button check, Press to [SELECT] and [COPY] to check SD card. Display will be updated when SD card is inserted or ejected.
  • Page 7 TEST INSTRUCTION ROLAND SPD-20X 2015/8/11, Anders REAR CONNECTION CHECK FS-5U Tools and Materials · Monitor Speakers · FD-8 or DP-2 Headphone MIDI Device · Monitor (as HH CTRL) Mono 1/4” Cable *2 Audio · Speakers PD-8 Stereo 1/4” Cable Headphone...
  • Page 8: Update Mode

    How to update Patches: To check FOOT SW: Save the patch file on SD card, name it as SPD20ASP.BIN. Insert SD card. Boot SPD-20X while Connect FS-5U as instructed via PCS-31L cable. Press down switch pedal to change holding both [-] and [+] buttons. Use [▲] or [▼] to swap menu.
  • Page 9: Main Board(Top)

    SPD-20X SERVICE MANUAL MAIN BOARD(TOP) PC069-MB-V1.7...
  • Page 10: Main Board ( Bottom)

    SPD-20X SERVICE MANUAL MAIN BOARD ( BOTTOM) PC069-MB-V1.7...
  • Page 11 SPD-20X SERVICE MANUAL PANEL CONTROL BOARD(TOP) PC069-KZB-V1.4A...
  • Page 12 SPD-20X SERVICE MANUAL PANEL CONTROL BOARD(BOTTOM) PC069-KZB-V1.4A...
  • Page 13 SPD-20X SERVICE MANUAL SD CARD BOARD PC069-SD-V2.0...

This manual is also suitable for:

Spd-20x-bk
