Summary of Contents for Hopewind HOPWINN HS100-1900B

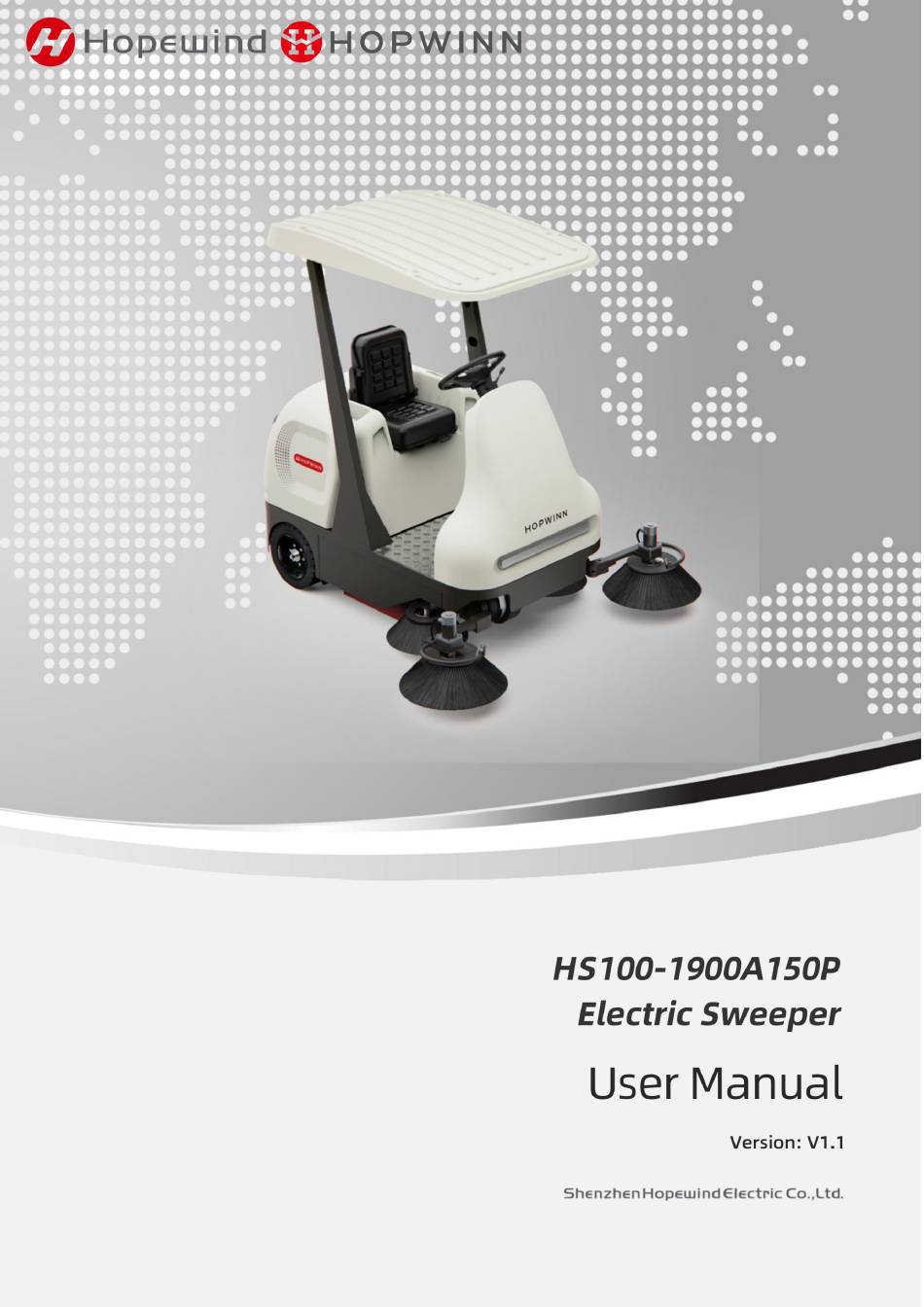

Page 3 User Manual Version: V1.1 Thank you for using electric sweeper of Shenzhen Hopewind Electric Co,. Ltd & Hopwinn Innovation Technology. Before using the product, you are advised to read this manual carefully. This manual is compiled according to the "current" product and has been audited. Due to the continuous optimization of the manual, the relevant illustrations in the manual may be different from physical objects, please take physical objects as standard.
Page 5: Table Of Contents
Contents 1 Notices For User...........................2 2 Product Description........................3 2.1 What Is In The Package........................3 2.2 Main Components..........................3 2.3 Technical Parameters........................6 3 Operation Guide........................... 8 3.1 Check Before Operation........................8 3.2 Operation Method..........................9 4 Charging Guide...........................11 4.1 Safety Precautions...........................11 4.2 Charging Method..........................11 5 Maintenance guide........................
Page 6: Notices For User
Electric Sweeper User Manual Notices For User Thank you very much for choosing our products. Before you start using this product, please read the contents of this chapter carefully and strictly abide by it, in order to achieve the best cleaning effect and prevent damage to personnel and machinery.
Page 7: Product Description
HS100-1900B150P Product Description 2.1 What Is In The Package When you receive this product, you should first check whether the product has obvious signs of damage, and keep the corresponding documents and outer packaging, so that you can make a declaration of damage to the shipping company.
Page 8 User Manual - HS-1900B Electric Sweeper 1. Ceiling Mainly used for shading, avoid direct sunlight to the operator. 2. Steering wheel and control panel Name Description Steering wheel Control the driving direction of the sweeper. Combination Switch Control lights, turn signals and horn. Emergency stop Emergency stop of the sweeper.
Page 9 HS100-1900B150P 3. Pedal Name Description Accelerator pedal Control the driving speed of the sweeper, and the function is the same as the accelerator of a car. Brake pedal Brake the sweeper. Main brush front baffle If you encounter larger size garbage (3mm＜height＜60mm), you pedal can step on this pedal to lift the front baffle of the main brush, so that the garbage can enter the cleaning area of the main brush.
Page 10: Technical Parameters
User Manual - HS-1900B Electric Sweeper It is used to store the cleaned garbage. After each operation or when the garbage hopper is full, the garbage hopper needs to be cleaned up in time. 2.3 Technical Parameters Type Parameter Value Whole vehicle Dimensions 2050*1900*1900...
Page 11 HS100-1900B150P Battery capacity 86Ah (optional 150Ah) Maximum working 3~5h hours Charging method Charging via portable charger AC input voltage 220V Charging time 3.5~5h Environment Working temperature -10~40℃ Working humidity 30~90% Storage temperature -10~40℃ Storage humidity 30~90%...
Page 12: Operation Guide
User Manual - HS-1900B Electric Sweeper Operation Guide 3.1 Check Before Operation Before starting the operation, please conduct a regular inspection of the sweeper to ensure that the sweeper can operate normally. Before starting the sweeper, please fill up the water in the water tank. The water inlet is located ...
Page 13: Operation Method
HS100-1900B150P Caution: (1) If any part is opened/disassembled during inspection, it must be restored to its original condition after inspection to ensure accuracy and reliability. (2) It is forbidden to directly wash the interior of the sweeper with water, especially the electrical system.
Page 14 User Manual - HS-1900B Electric Sweeper (2) Gently press down on the handle of the garbage hopper to lift the front end of the garbage hopper out of the chassis, and then pull the garbage hopper back out of the sweeper. (3) After the garbage hopper is emptied to the garbage dump, the garbage hopper is loaded back to the sweeper in the reverse order of the above steps.
Page 15: Charging Guide
HS100-1900A150P Charging Guide 4.1 Safety Precautions This product uses a portable charger to charge the sweeper. Before charging, please read the safety instructions carefully and strictly follow them. Do not store the charger in a harsh environment (the storage environment should be kept dry, ...
Page 16: Maintenance Guide
User Manual - HS-1900B Electric Sweeper Maintenance guide 5.1 Main malfunctions and solutions Note: Be sure to turn off the power of the sweeper and remove the key before performing maintenance. Failure performance Possibility Solutions Replace the fuse The power meter does not （to be confirmed）fuse is blown display when the key Charge;...
Page 17 HS100-1900A150P Poor cleaning effect The brush height is unreasonable or the Reduce brush limit bolt height; replace the brush wear leads to insufficient contact brush if it is too badly worn between the brush and the ground Twisting or deformation of brush remove winding;...
Page 18: Main Malfunctions And Solutions
User Manual - HS-1900B Electric Sweeper 5.2 Main malfunctions and solutions 5.2.1 Adjusting the brush height Both the main brush and the sub brush adjust the working height through the limit bolts. The position of the limit bolts of each brush is as follows (the test plate has been removed): ①...
Page 19: Replacing The Main Brush
HS100-1900A150P Position of fixing nut 5.2.3 Replacing the main brush 1. Unscrew the two fixing nuts of the left fender of the vehicle, and remove the left fender. Position of fixing Unscrew the six fixing nuts shown in the figure, and remove the three plates ①②③. Unscrew the thumbscrew shown in the figure, and remove the entire drive plate.
Page 20: Cleaning And Replacing The Filter
User Manual - HS-1900B Electric Sweeper Position of fixing Unscrew the six fixing screws as shown in the figure, and remove the semicircular baffle. Position of fixing 5. Pull out the main brush for replacement. 5.2.4 Cleaning and replacing the filter 1.
Page 21 HS100-1900A150P 2. Open the lock catch （under the seat） that fixes the car shell and the bottom plate, and lift the whole car shell backward. 3. Remove the four fixing screws as shown in the figure, and remove the top cover of the filter element.
Page 22: Replacing The Fuse
User Manual - HS-1900B Electric Sweeper 5. Take out the filter for cleaning/replacement. 5.2.5 Replacing the fuse The fuse box is under the cover plate of the sit, on the filter plate.
Page 23 HS100-1900A150P Open the fuse cap, you will see the diagrammatic sketch on the back of the fuse box. Follow the diagrammatic sketch and change the damaged fuse. Device name Fuse capacity Main brush motor Fan motor Left-back side brush Right-back side brush Left-front side brush Right-front side brush Key switch...
Page 24: Regular Maintenance
User Manual - HS-1900B Electric Sweeper 5.3 Regular maintenance Please check the entanglement on the main brush and side brush after sweeping. Please check the break system before sweeping. To avoid the shortage of electrical components by excessive dust, please clean the inner part of sweeper weekly.
Page 25: Appendix: Warranty Assurance
If you need to repair or modify this product, please contact our company in advance. Contact information  Shenzhen Hopewind Technology Co., Ltd. Hopwinn Innovation Technology Shenzhen Hopwin Innovation Technology Co., Ltd Add: Building 5, Xili Guanlong Second Industrial Zone, Nanshan District, Shenzhen...
