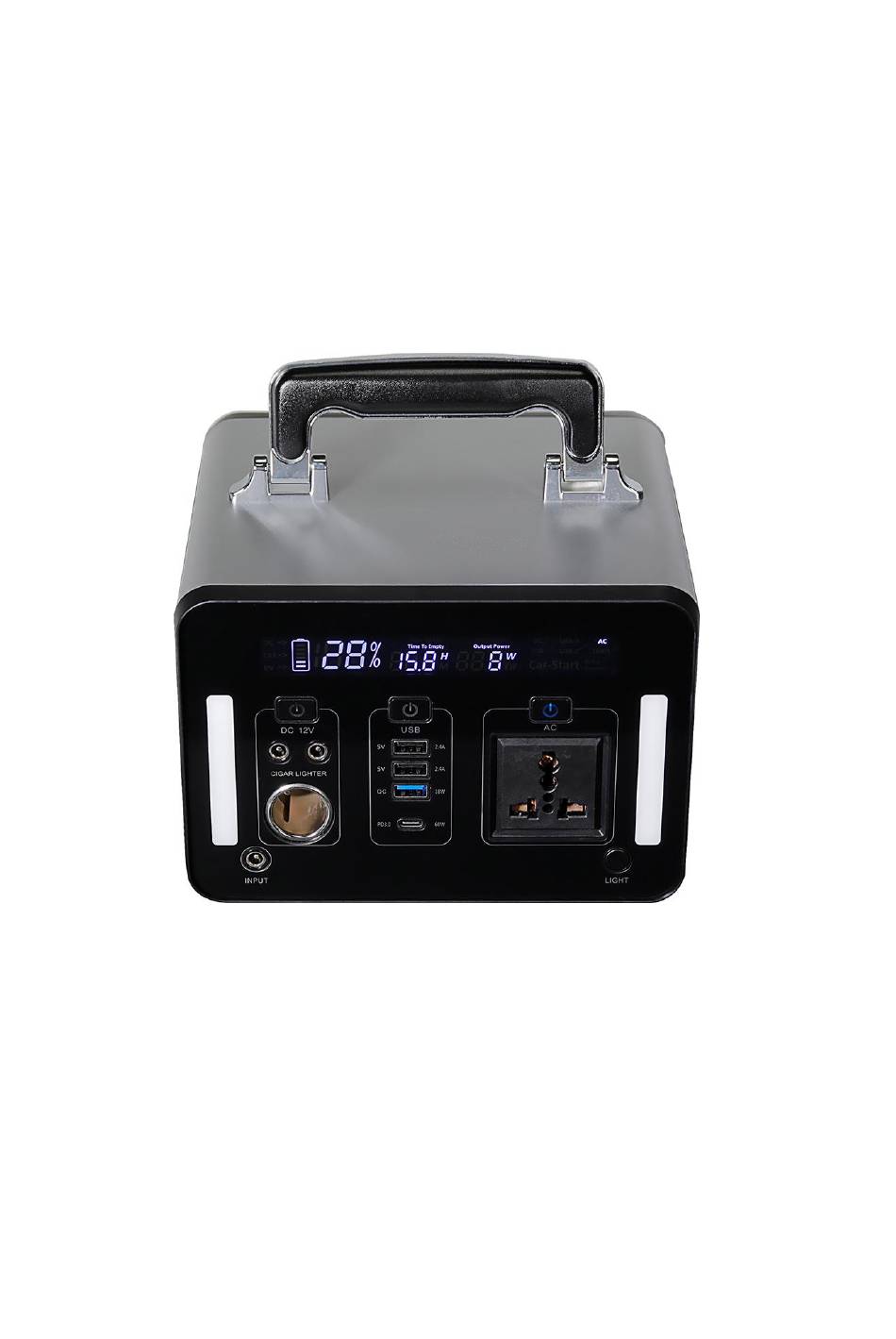

PORTABLE POWER STATION
Where you are, where power is
PRODUCT MANUAL
（SA300 & SA500 & SA1000）
※ It is a portable energy storage power supply, not a toy for children to play.
※ Please read the product instructions carefully before using.
※ If it is stored for a long time (more than a month), please charge the product to
about 70% of the electricity.
※ Do not charge, use or place the product near the source of fire or overheating.
※ Products and accessories are subject to change without notice.
Advertisement
Table of Contents
Related Manuals for AUGHTDOM SA300
Summary of Contents for AUGHTDOM SA300
- Page 1 PORTABLE POWER STATION Where you are, where power is PRODUCT MANUAL （SA300 & SA500 & SA1000） ※ It is a portable energy storage power supply, not a toy for children to play. ※ Please read the product instructions carefully before using.
-
Page 2: Table Of Contents
CATALOG (1) Spare parts list-------------------------------------------------------------------------------------- 2 (2) Product introduction---------------------------------------------------------------------------- 2~3 (3) Product diagram--------------------------------------------------------------------------------- 4~5 (4) Product parameters---------------------------------------------------------------------------- 5~6 (5) Product protection function--------------------------------------------------------------------- 7 (6) Operating instruction for the products--------------------------------------------------- 7~10 (7) Precaution------------------------------------------------------------------------------------- 11~12 (8) Solution for the common problems------------------------------------------------------ 12~13 (9) Trouble shooting----------------------------------------------------------------------------- 13~14 (10) After-sales service------------------------------------------------------------------------- 14~15... -
Page 3: Spare Parts List
Spare parts list Name Accessories description SA300, SA500 or SA1000. There are mainframe differences in appearance, as shown in the figure is SA1000. Adapter Charging products with municipal electricity Power cord Adapter to connect to city power Car charger cable... - Page 4 Car charging 12V10A cigarette lighter output 12V5A DC5.5 output port*4 USB-C PD 45W/5~15V output USB-A QC3.0 18W/5~12V output *2 USB-A 2.4A Intelligent recognition output port*2 Charging the Start Battery of a Vehicle，Auxiliary Start-up Vehicle ...
-
Page 5: Product Diagram
Product diagram 3.1 Product function description 3.2 Display screen description. -
Page 6: Product Parameters
Product parameters Project parameter SA300 SA500 SA1000 Battery class Lithium-ion battery Lithium-ion battery Lithium-ion battery Battery power 300Wh 500Wh 1000Wh Total capacity 83200mAh 135200mAh 270000mAh Battery voltage 14.8V cycle life 800cycle Over pressure, under pressure, high and low temperature, level 3... - Page 7 port 5V2.4A 5V2.4A output QC3.0,5-12V,18W(MAX) PD3.0 50-20V,60W(MAX) Low bright 5W(MAX)（On/SOS/flash light/OFFF） light High bright 10W(MAX)（On/SOS/flash light/OFFF） DC（No.1） 18-24V/5A Max120W 18-24V/5A Max120W 18-24V/5A Max120W USB-C(No.2) PD 60W Max PD 60W Max PD 60W Max Input DC（No.6） 12-24V/5A Max120W 12-24V/5A Max120W 12-24V/5A Max120W /charge Quick charge port 200W Max...
-
Page 8: Product Protection Function
Product function description Products for multi-functional output power, in order to reduce the waste of "multifunctional" redundant circuit, we will have some functions for combined design, so more energy saving and environmental protection, and the combined design will also bring the other side is some functions used at the same time, the system will take the initiative to reduce power, reasonable operation normal conditions will not affect the use.Your understanding is to support our company's "environmental action."... - Page 9 6.1.1 Solar power charging Insert the plug of the unfolded solar panel into the “DC input” interface, after charging mode is activated, the last grid of the battery indicator ring will flash. The solar panel power is greatly affected by the light, and the generated power will change, so it can result in the remaining time dynamically changes, which is normal.
- Page 10 6.1.4 Charge warning The tank icon will light up and flash when the remaining power is 10%, reminding the userto charge in time. 6.2 Product output (electricity consumption) The product has high low voltage, high low temperature, multiple over-current, short circuit and other protection circuits.
- Page 11 6.2.3 DC area output cigarette lighter Press and hold the DC button for about 1 second to turn on the DC5521 and output. The interface discharging icon will display the DC icons on the display. In this case, cigarette lighter long press on the DC button for about 1 second, the DC5521 and output will be turned off.
-
Page 12: Precaution
Precaution Please read the precautions that indicate “Danger”, “Warning” and “Caution” levels. “Danger” indicates it will cause the personal injury. “Warning” indicates it will happen the dangerous things. “Caution” indicates it will cause the damage to the product or shorten the service life. The product outputs high-voltage AC. -
Page 13: Solution For The Common Problems
charging immediately and place it in an open place for long-distance observation. After confirming the safety, contact the manufacturer or dealer. This product is a power supply. Please select the corresponding model according to the power equipment. It is not allowed to use this product with over power or over load. Do not output the short circuit. -
Page 14: Trouble Shooting
A：This product supports discharging while charging, and it can be used at the same time. When the output power is greater than the input power, the battery power is slowly reduced, and when it is reduced to the low battery state, the output is turned off. Q：Does the product have temperature protection？... -
Page 15: After-Sales Service
restart the device after removing the device. (5) Check if the device is used normally on other power sources, if it is used abnormally, which is caused by incompatibility of certain devices. 9.3 Accidentally shutdown during using product. Solution： This product has a built-in real-time monitoring system, which may cause a shutdown due to starting internal protection system. - Page 16 The user did not follow the instructions. Failure or damage caused by accidents, man-made, environmental and other factors (improper operation, collision, unreasonable voltages, dampness.). The outer packing and accessories of product are not covered by the warranty. After-sales Service Guarantee Card Product model Date of purchase...
