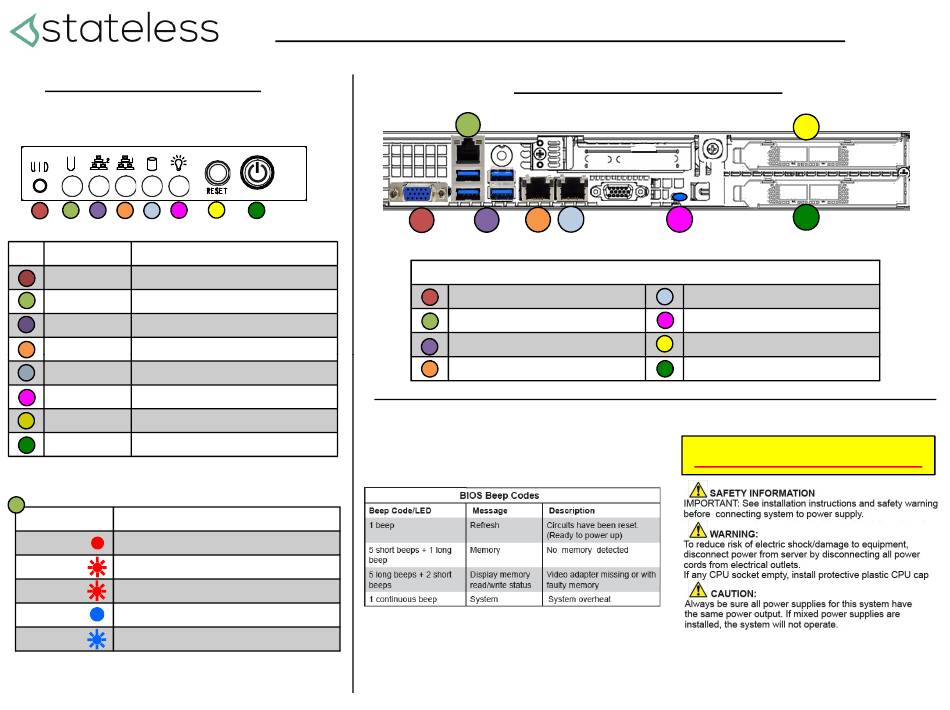

stateless LUXON LX-SM4x100G-4228 Quick Reference Manual

INDICATORS & ALERTS

CHASSIS FRONT PANEL LEDs

2
1 3 4 5 6
Feature Description
1
UID Button Illuminates a front & back LED to ID unit
2
Info LED SEE TABLE BELOW
3
NIC 2 LED Network activity on NIC 2 when flashing
4 4
NIC 1 LED Network activity on NIC 1 when flashing
5
HDD LED Hard drive activity when flashing
6
Power LED Power is supplied when illuminated
7
Reset Button Press to reboot the server
8
Power Button Apply or remove power to the server
Information LED
2
Status Description
SOLID System overheat
FLASH (1Hz) Fan failure
FLASH (.25Hz) Power supply failure
SOLID Local unit identification (UID) activated
FLASH Remote unit identification (UID) activated
Stateless PN: LX-SM4x100G-4228-QRG rev 1.2
LX-SM4x100G-4228 LUXON Server Quick Reference Guide
7 8

POWER-ON SELF-TEST BEEP CODES

BACK PANEL CONNECTIONS

2
3 4
1 5
Back Panel I/O Ports
1
VGA Port
2
Dedicated IPMI LAN
3
USB3.0 Ports (0, 1, 2, 3)
4
Management Port 1
7
8
6
5
Management Port 2
6
Unit Identification (UID) switch
7
Network Interface Card 1
8
Network Interface Card 2
CAUTION & WARNINGS
