HOLECTRON ULA L IP67 Installation Manual

ULA L IP67 CONTINUOUS LINE
Installation guide

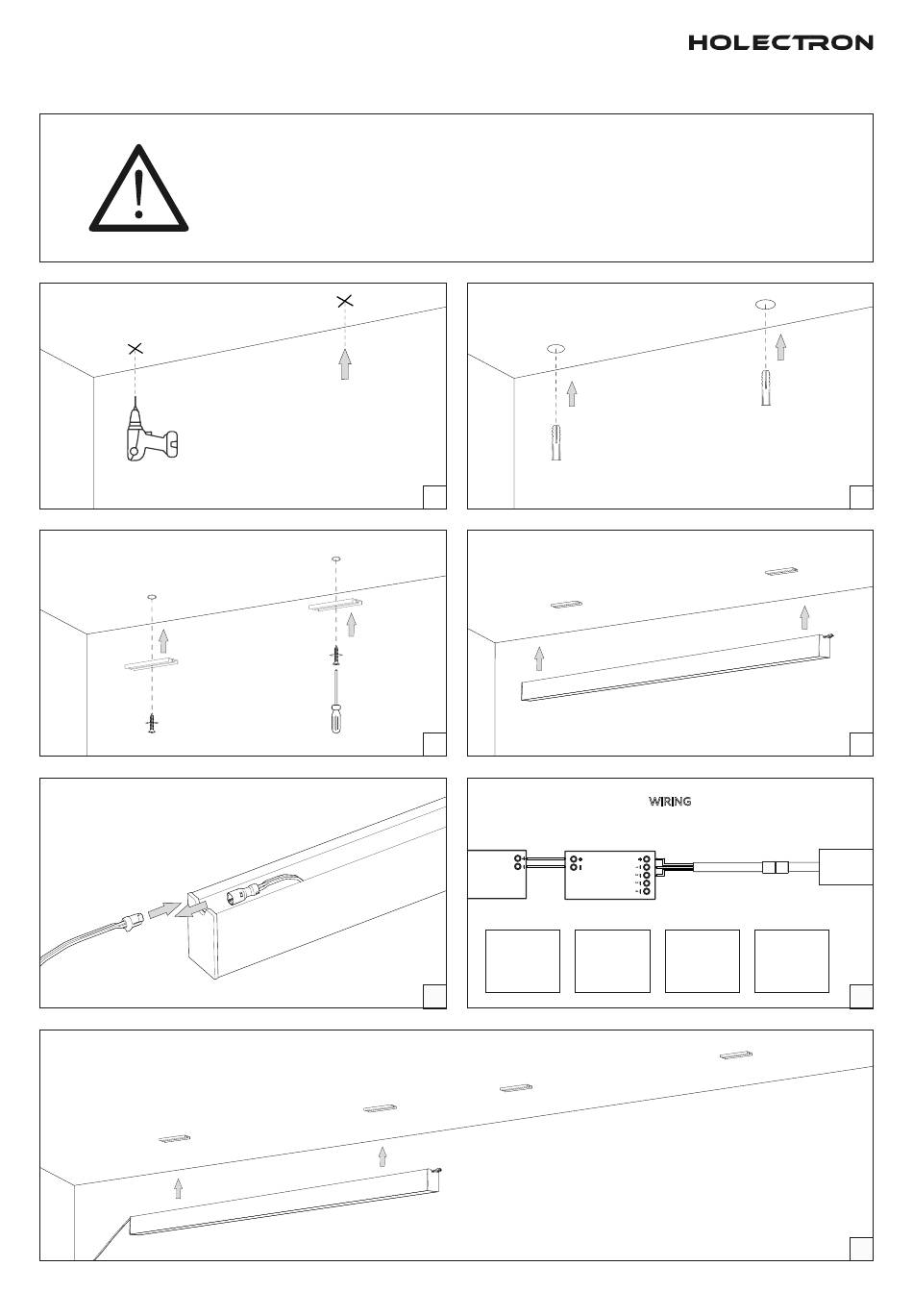

CONNECT LEAD CABLE
CLICK
HOLECTRON | Salininku st. 84, LT-02223 Vilnius, Lithuania | Email: info@holectron.com | www.holectron.com
• Product installation must be carried out by a qualified professional.
• Before installing make sure, that electrical power is turned OFF.
• Before installing make sure, that the fixing area can bear the total weight of the luminaire.
• Pay attention to polarity when connecting (installing) the product.
• Do not operate if the luminaire has been damaged.
• To protect the surface from dirt and fingerprints, we recommend the use of protective gloves during installation.
• Product warranty does not cover any damage caused by faulty installation and/or misuse.
• For further information, please contact the manufacturer.
CLICK
1
3
Power supply Controller
White Tunable white
+: Common (+) +: Common (+)
1: Common (-) 1: Warm (-)
2: Not in use (-)
2: Cool (-)
3: Not in use (-) 3: Not in use (-)
4: Not in use (-) 4: Not in use (-)
5
WIRING
Lead cable Luminaire
RGB RGB + white
+: Common (+) +: Common (+)
1: Red (-) 1: White (-)
2: Green (-)
2: Red (-)
3: Blue (-)
3: Green (-)
4: Not in use (-) 4: Blue (-)
2
4
6
7
1/2
