Summary of Contents for Nowatt Lighting MIKA

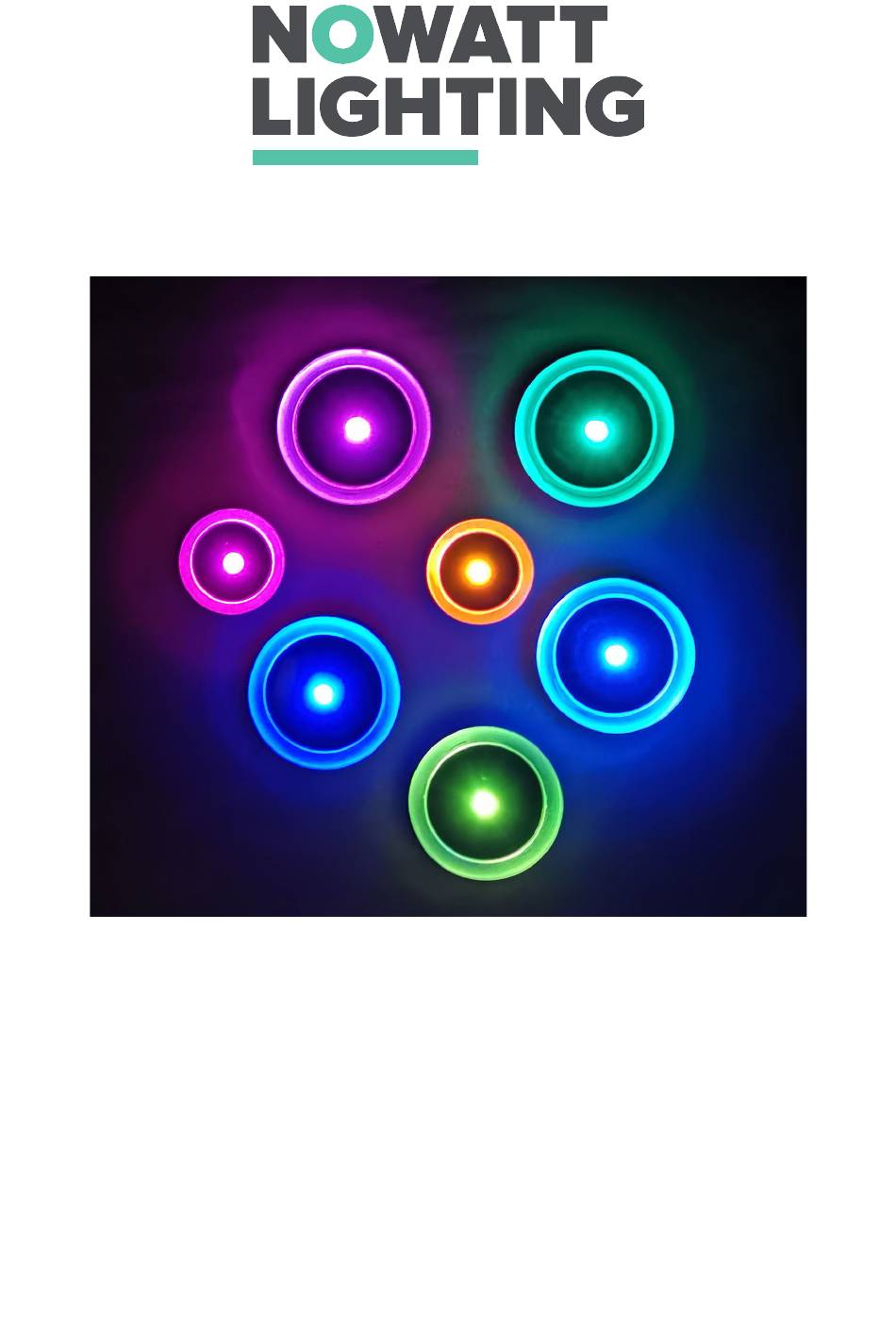

Page 1 MIKA User guide...
Page 2: Table Of Contents
Table of contents Introduction ……………………………………………………………………………….. Overview ………………………………………………………………………………………………….. Unpacking ………………………………………………………………………………………………… Operation …………………………………………………………………………………… Fixture positioning tips …………………………….………………………………………………. Control with the Nowatt Lighting application …………………………………………. Grouping function ..…………………………………………………………………………………… Installation …………………………………………………………………………………. Front installation……………………………………………………………………………………. Wall-mounted ..………………………………………………………......Maintenance and care .……………………………………………………………….. Cleaning ……………………………………………………………………………………………………. Risk of material damage …………….…………………………………………………………….
Page 3: Introduction
Usage: Solar luminous dot connected with Led for outdoor facades, with no cabling. The Mika stud is standalone thanks to a solar panel and a battery. LEDs’ color: Colors RGB + White 4000 K. Structure: Tempered glass frame thickness 10 mm + machined aluminum frame.
Page 4: Unpacking
Unpacking Check all parts for damage. Do not put the product into service in case of damaged solar panel or LED. The identification number of your Mika stud is indicated on a label under the product.
Page 5: Operation
Operation Fixture positioning tips Choose a suitable location where sunlight can directly reach the solar panel. Avoid obscuration by eaves or trees. In the northern hemisphere, favor installation to the south of obstacles (on facades or on the ground), or to the east or west. Do not install due north. In the southern hemisphere, favor installation to the north of obstacles, to the east or to the west.
Page 6: Control With The Nowatt Lighting Application
Control with the Nowatt Lighting application Download the Nowatt Lighting app The Nowatt Lighting application is free to download from the Play Store and the Apple Store. You can download it on a Smartphone or a tablet. Activate your Bluetooth connection Start the Nowatt Lighting application on your Smartphone The app asks you for permission to access Bluetooth.
Page 7 Battery charge status Demo Your module may display a 0% state of charge on startup. Wait Identification of the model of MIKA STUD PM110 - RGBW a few seconds for the actual your product percentage to display. Settings All scenarios...
Page 8 Utilisation Select a light animation Tap "Scenario". Select a light effect from the 8 choices available.
Page 9 Tap "Apply Scenario" to save it. It will light up every night with this scenario. Check your programming If the home page indicates OFF or Demo, your scenario is not saved, you must repeat the previous steps. Activated Demo MIKA STUD PM110 - RGBW MIKA STUD PM110 - RGBW...
Page 10: Grouping Function
Operation Grouping function The grouping function allows you to create groups to send the same scenario to several devices simultaneously (within the range of Bluetooth). However, this operation does not allow synchronized operation of the devices. They receive the same scenario, at the same time, but they do not communicate with each other.
Page 11: Installation
The Mika stud can be installed protruding from facades using the D20 fixing piece (M8x30). Screw the D20 fixing to the back of the Mika stud using the M4 screws provided and an Allen key. Place an M8x30 insert complementary to the D20 fixing and adapted to your façade, at the location where you wish to place the Mika stud.
Page 12: Maintenance And Care
Waste management Please observe the legal obligations relating to waste management. Return old devices to your dealers or directly to Nowatt Lighting. Do not dispose of old devices with unsorted household waste. Do not throw old devices into fire or water.
Page 13: Warranty
Maintenance and care Warranty Nowatt Lighting products are manufactured with the utmost care. The function and safety of this product have been tested according to the currently valid directives, with a final inspection. Nowatt Lighting guarantees faultless condition and operation.
