Summary of Contents for AULARI ALR400-KZ

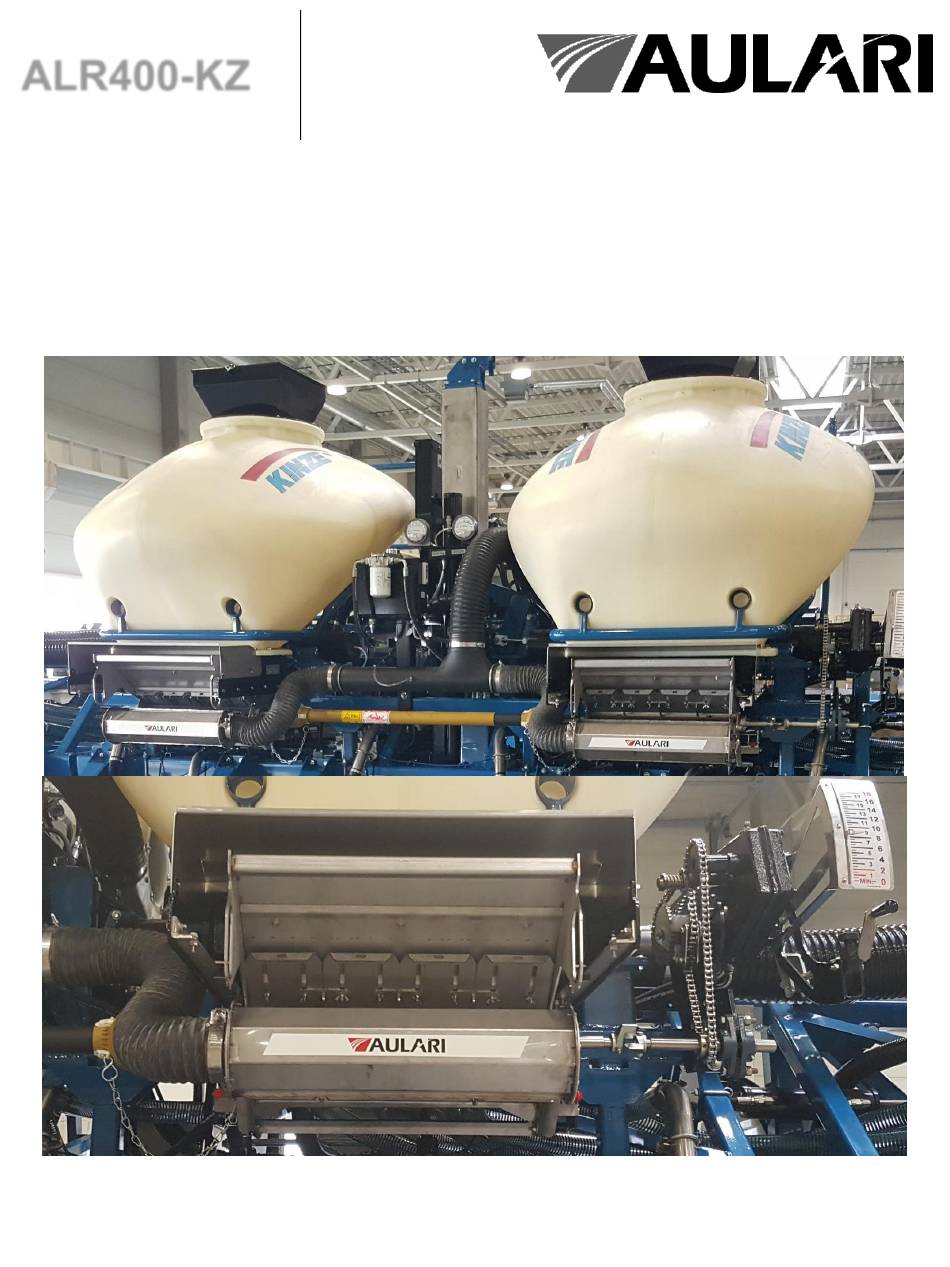

- Page 1 Industrie Aulari Inc. 620 St-Roch, St-Barnabe Sud (Quebec) Canada J0H 1G0 ALR400-KZ Phone : 450-792-2126 Toll free : 1-877-892-2126 Fax : 450-792-2127 Email : info@aulari.com www.aulari.com OPERATORS MANUAL Safety, use and maintenance ALR400-V2-EN-2020-04 PF-LIVRET-ALR400-KZ...
-
Page 3: Warranty
WARRANTY Terms and conditions In this document, “the Company” refers to Industrie Aulari Inc. 1) New applicators manufactured by the Company, free of manufacturing defects (labor and parts) are warranted for one (1) season of use from the date of delivery. -
Page 5: Product Identification
Dealer information (if applicable) Name Address City/ Province/ Country Phone Email Manufacturer information Industrie AULARI Inc. 620 St-Roch, St-Barnabe Sud (Quebec) Canada J0H 1G0 Phone : 450 792-2126 Toll free : 1-877-892-2126 (only North America) Fax : 450 792-2127 info@aulari.com... -
Page 7: Table Of Contents
WARRANTY PRODUCT IDENTIFICATION INTRODUCTION SAFETY SAFETY SYMBOLS ON THE APPLICATOR TRANSPORTING ACCIDENT PREVENTION TECHNICAL DATA – ALR400-KZ START-UP PROCEDURE IN FIELD START-UP OF THE APPLICATOR CALIBRATION PROCEDURE SERVICE ON THE APPLICATOR Practice safe maintenance Cleaning of the applicator Service/Prior to operation every season... -
Page 8: Introduction
The period of warranty coverage begins upon delivery of the distributor. A representative of the Company or the dealer will provide the adjustment instructions, maintenance and security for the first using of the applicator. Industrie Aulari inc. reserves the right to modify technical data and illustrations in this document in order to improve the product. -
Page 9: Safety
The safety decals on the applicator should never be hidden or damaged. For replacement stickers, contact Industry Aulari. SAFETY SYMBOL ON THE APPLICATOR A signal word - DANGER identifies the most... - Page 10 Keep your hand off the chain drives when in operation. Never use belt drive without the security guard in place. Before adjusting or repairing the applicator, disengage the PTO and stop the tractor. Never use the PTO without the security guard in place. Before adjusting or repairing the applicator, disengage the PTO and stop the tractor.
-
Page 11: Transporting
ground. Stop engine. Remove the key. TRANSPORTING Allow machine to cool. Securely support any machine elements Transport safety that must be raised for service work. To avoid the risk of falling, never climb on When it is necessary to travel on rotatable parts (discs, gauge wheels, etc.). -
Page 12: Technical Data - Alr400-Kz
TECHNICAL DATA – ALR400-KZ Working width * 12 rows at 70 cm / 8.4 m / 27.5 ft 16 rows at 70 cm / 11.2 m / 36 ft Dimensions Total empty weight 525 Kg / 1157 lbs... -
Page 13: Start-Up Procedure In Field
START-UP PROCEDURE (IN FIELD) Carefully take the time to follow all instructions listed in this section in order to benefit from optimal performance from your applicator. 1. Adjust the speed of transmission of the distribution system. Use crank [Figure 1, A] for adjusting the indicator rule to the desired position. -
Page 14: Start-Up Of The Applicator
START-UP OF THE APPLICATOR Once all of the adjustments in the field were made, the applicator is ready for use. 1. Start-up the tractor. 2. Activate the fan corresponding hydraulic outlets. If the fan doesn’t start, refer to “ATTACHING PROCEDURE” this manual. -
Page 15: Calibration Procedure
Calibration Procedure Europe Kinze 3600 Contact wheel diameter: (Tire 4.00-8) A.) Open all shut off gates underneath one (1) hopper and remove the panel. B.) Install the funnel and a pan under the meetering shaft. C.) Then close all the sections shut off gates on the other hopper. Turn the fertilizer contact wheel constantly for full rotation Or use the hand crank and turn for... -
Page 16: Service On The Applicator
SERVICE ON THE APPLICATOR Perform high pressure cleaning work regularly, Always follow the warning sign either after the spring and/or subsequent use. Do maintenance instruction not leave deposits of fertilizers accumulate at the applicable to the applicator. bottom of the distribution system and/or the frame of the applicator. -
Page 17: Service/Prior To Operation Every Season
Pay special attention to the fan bearings. A failure thereof may cause a major breakdown of the components of the fan. Attention: An excess of grease in the bearing can cause damage to the seal. Variable transmission oil Change the oil in the variable transmission at the beginning of each planting season or application. -
Page 18: Oil Reservoir
Oil reservoir (Distribution) Pay special attention to the fan Change the oil and filter from the small tank [Figure bearings. A failure thereof may 5A] of the distribution system at the beginning of cause a major breakdown of the each planting season application. -
Page 19: Table Of Lubrication (Grease)
TABLE OF LUBRICATION (GREASE) Zone Lubrication zone Number of grease Interval fitting Distribution system drive 5 (10 total) 100 hours Use EP2 universal grease Attention: An excess of grease in the bearings can cause damage to the seal. ZONE 1 Mechanical transmission side PTO link side... -
Page 20: Table Of Lubrication (Oil)
TABLE OF LUBRICATION (OIL) Lubrication parts Lubricant type Quantity Interval Variable transmission Clear trans-hydraulic oil. 1.75 liters Once per season [figure 23] Check level daily Oil reservoir (Distribution Dextron III oil 8 liters Once per season system) [figure 23A] Check level daily OTHER MAINTENANCE Other maintenance or verification Interval...
