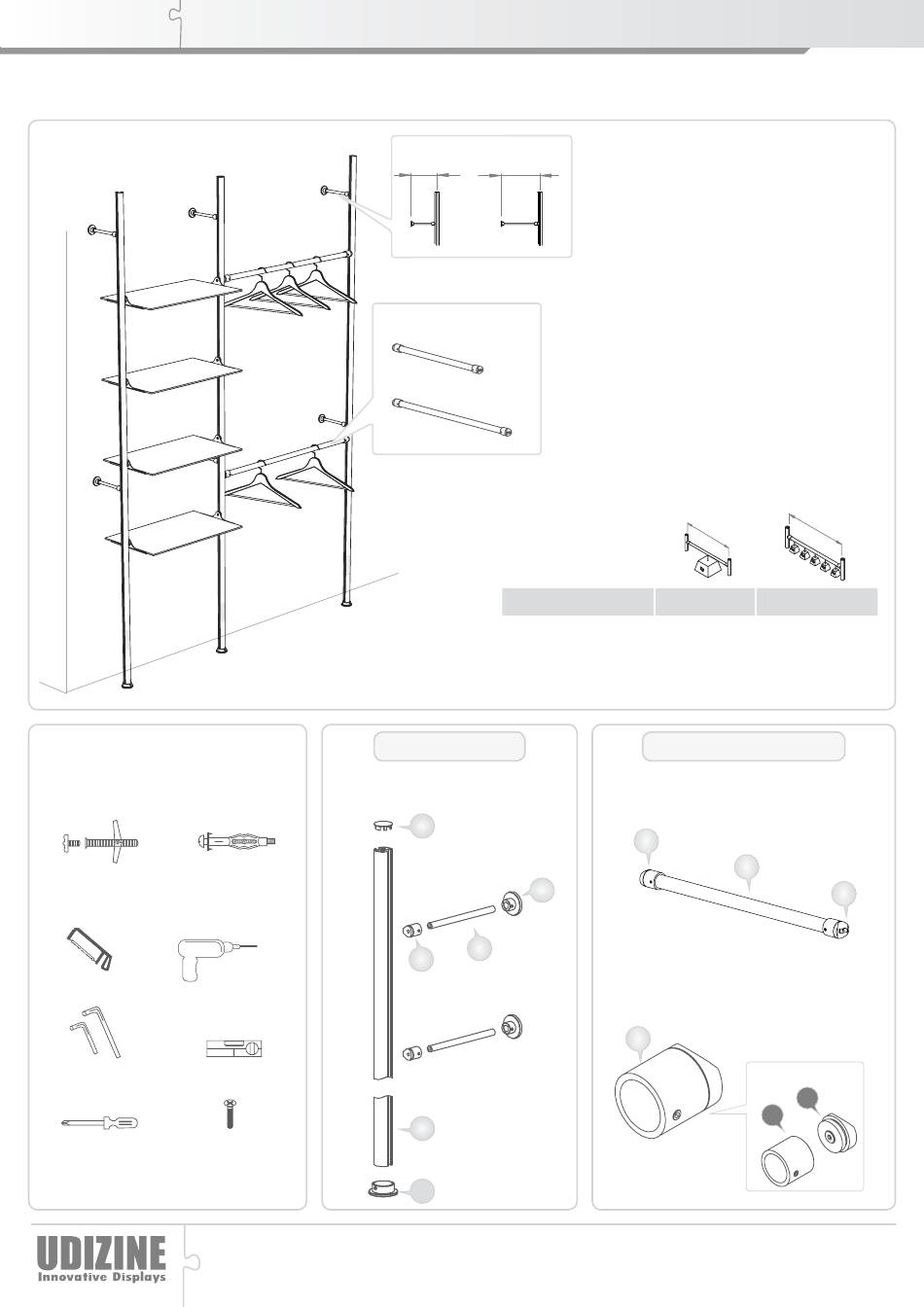

UDIZINE Palo System IPSK002 Installation Instructions

Palo System
Installation Instructions
Please Note:
For mounting on sheet rock/drywall,
we recommend using 4.8mm (3/16")
Molly bolts or Toggle bolts.
Toggle Bolts
Recommended Tools:
Hand Saw
Metric 2.5 & 3
# #
Phillips Screw Driver
FYI: Tools and mounting hardware
are not provided

Wall to Floor - Hang Rail

Molly Bolts
Level
4.8mm (3/16")
General Note:
It is the responsibility of the purchaser and/or installer to verify that the mounting surface is solid and capable of supporting the intended
weight of display. It is recommended to consult with a professional and determine the appropriate fastener/anchor needed for the mounting surface. UDIZINE
is solely responsible for the quality of its products and not accountable for faulty installation and ill use of its products beyond recommended limitations.
PSK-F02
PSK-F01
20cm (8") 30cm (12")
PSK-S01 - 61cm (24")
PSK-S02 -76cm (36")
PSK-S01 - 60cm (24")
PSK-S02 - 90cm (36")
Wall Kit Fixtures
PSK-F01 - 20cm (8")
PSK-F02 - 30cm (12")
A
PS15AN
B
PS13AN
C
D
AS12AN - 20cm (8")
PS14AN
AS13AN - 30cm (12")
E
PS11AN
F
PS12AN
Max Height:
244cm (96")
Can be cut to size
Max Weight Load:
Per Setting : 240kg (530lbs)
Per Bar:
Dispersed Load Concentrated Load
37kg (81lbs) 45kg (99lbs)
25kg (55lbs) 30kg (66lbs)
Hang Rail Kit -
Ø 2.5 cm (1")
PSK-S01 - 60cm (24")
PSK-S02 - 90cm (36")
H
G
PS110AN - 60cm (24")
PS111AN - 90cm (36")
H
H1
H2
PS19AN
IPSK002
Page 1 of 3
