AV Pro Edge AC-MX44-AUHD-HDBT-AVDM Quick Start Manual

4x4 & 8x8 18gbps 4k60 4:4:4 hdmi/hdbaset matrix switchers with dolby & dts downmixing

Hide thumbs

AC-MX44/88-AUHD-HDBT-AVDM

4 & 8

8 18G

4K60 4:4:4 HDMI/HDB

bps

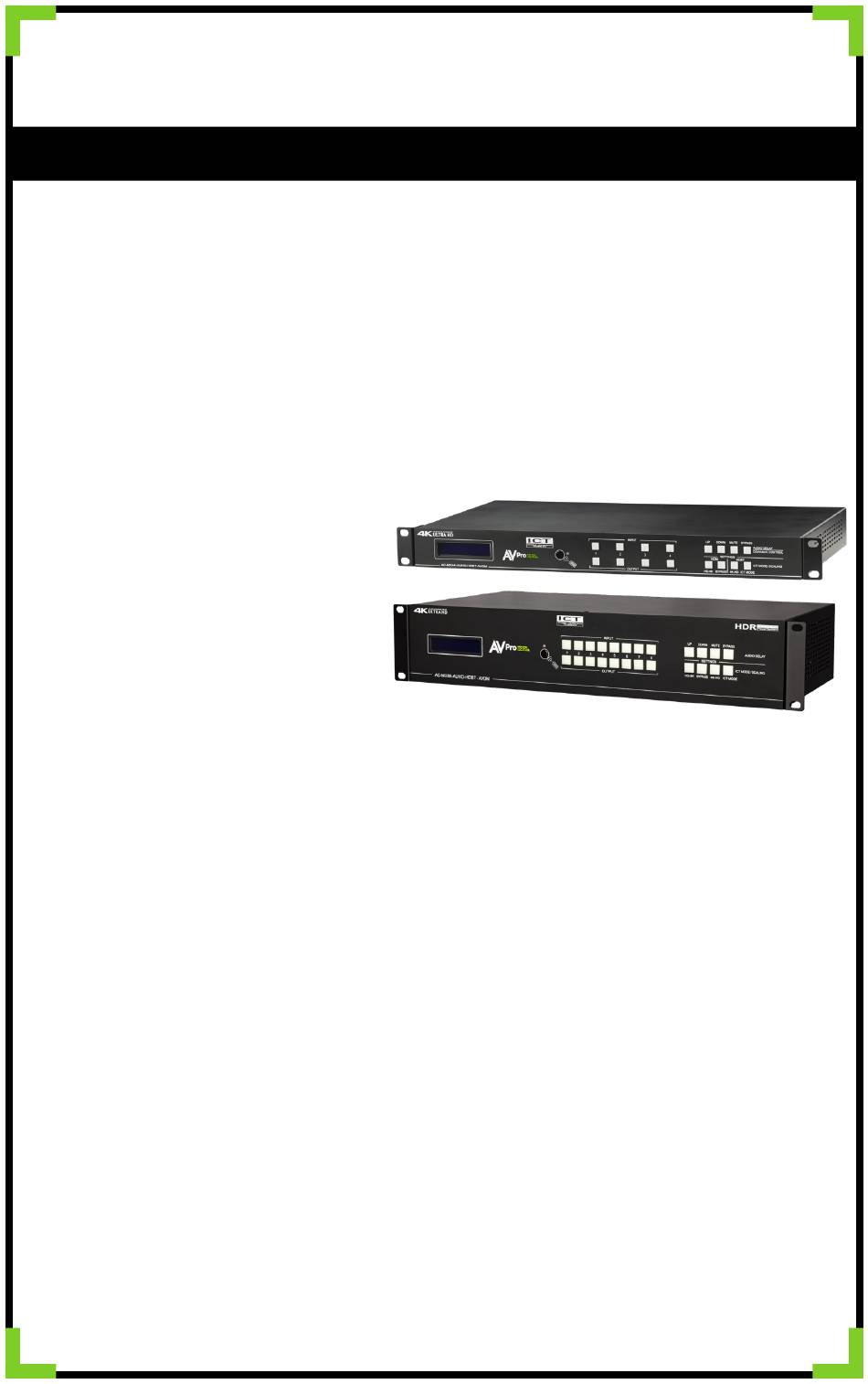

The AC-MX88-AUHD-HDBT-AVDM and AC-MX44-AUHD-HDBT-AVDM are both

full HDMI 2.0 18Gbps HDMI/HDBaseT Matrix switchers capable of full HDMI 4k60

4:4:4 resolution with HDCP 2.2 support. They are equipped with 8/4 downmixing

HDMI inputs capable of downmixing bit rate audio to 2 Channel PCM for the

extracted audio and 8/4 mirrored HDMI/HDBaseT outputs capable of transmitting

full bandwidth audio, video, and control up to 70 meters (100M @ 1080p).

This Quick Start Guide will be going through:

• Initial setup

• Front panel controls

• EDID management

• Accessing Web GUI

• Troubleshooting

Quick setup

1. Connect HDMI Input Sources

2. Connect HDMI/HDBT devices

3. Power Sources

4. Connect the power supply to the AC-MX44/88-AUHD-HDBT-AVDM

5. Turn on output devices/displays

6. Control the unit using front buttons, remote, or Web GUI

front panel control

Switching

The AC-MX44/88-AUHD-HDBT-AVDM can be switched from the front panel by

selecting the OUTPUT button first and then selecting the INPUT button:

1. Press the button (1 through 4 or 8 ) on the bottom row that corresponds with

the OUTPUT (Display or Sink Device) you would like to send to a source.

2. Once pressed, the switch will illuminate the OUTPUT button that you have

selected, along with the INPUT row, indicating that it is ready for you to select

the INPUT.

3. Select the desired INPUT

Quick Start Guide

T MATRIX SWITCHERS

ase

DOLBY & DTS DOWNMIXING

with

Table of Contents

Need help?

Do you have a question about the AC-MX44-AUHD-HDBT-AVDM and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Pro Edge AC-MX44-AUHD-HDBT-AVDM

Page 1 DOLBY & DTS DOWNMIXING with Quick Start Guide The AC-MX88-AUHD-HDBT-AVDM and AC-MX44-AUHD-HDBT-AVDM are both full HDMI 2.0 18Gbps HDMI/HDBaseT Matrix switchers capable of full HDMI 4k60 4:4:4 resolution with HDCP 2.2 support. They are equipped with 8/4 downmixing HDMI inputs capable of downmixing bit rate audio to 2 Channel PCM for the extracted audio and 8/4 mirrored HDMI/HDBaseT outputs capable of transmitting full bandwidth audio, video, and control up to 70 meters (100M @ 1080p).
Page 2 - Scaler Control The AC-MX44/88-AUHD-HDBT has scalers built into every output. The HDBaseT Port can be DOWNSCALED and the HDMI Port can be UPSCALED. The scalers are set on the OUTPUT side of the switch and each can have separate settings. Control the scaler: •...
Page 3 1080P_2CH 13. 4K60HZ_3D_2CH 25. 4K60HzY420_3D_2CH_HDR 2. 1080P_6CH 14. 4K60HZ_3D_6CH 26. 4K60HzY420_3D_6CH_HDR 3. 1080P_8CH 15. 4K60HZ_3D_8Ch 27. 4K60HzY420_3D_8CH_HDR 4. 1080P_3D_2CH 16. 1080P_2CH_HDR 28. 4K60HZ_3D_2CH_HDR 5. 1080P_3D_6CH 17. 1080P_6CH_HDR 29. 4K60HZ_3D_6CH_HDR 6. 1080P_3D_8CH 18. 1080P_8CH_HDR 30. 4K60HZ_3D_8CH_HDR 7. 4K30HZ_3D_2CH 19. 1080P_3D_2CH_HDR 31. User EDID 1 8.
