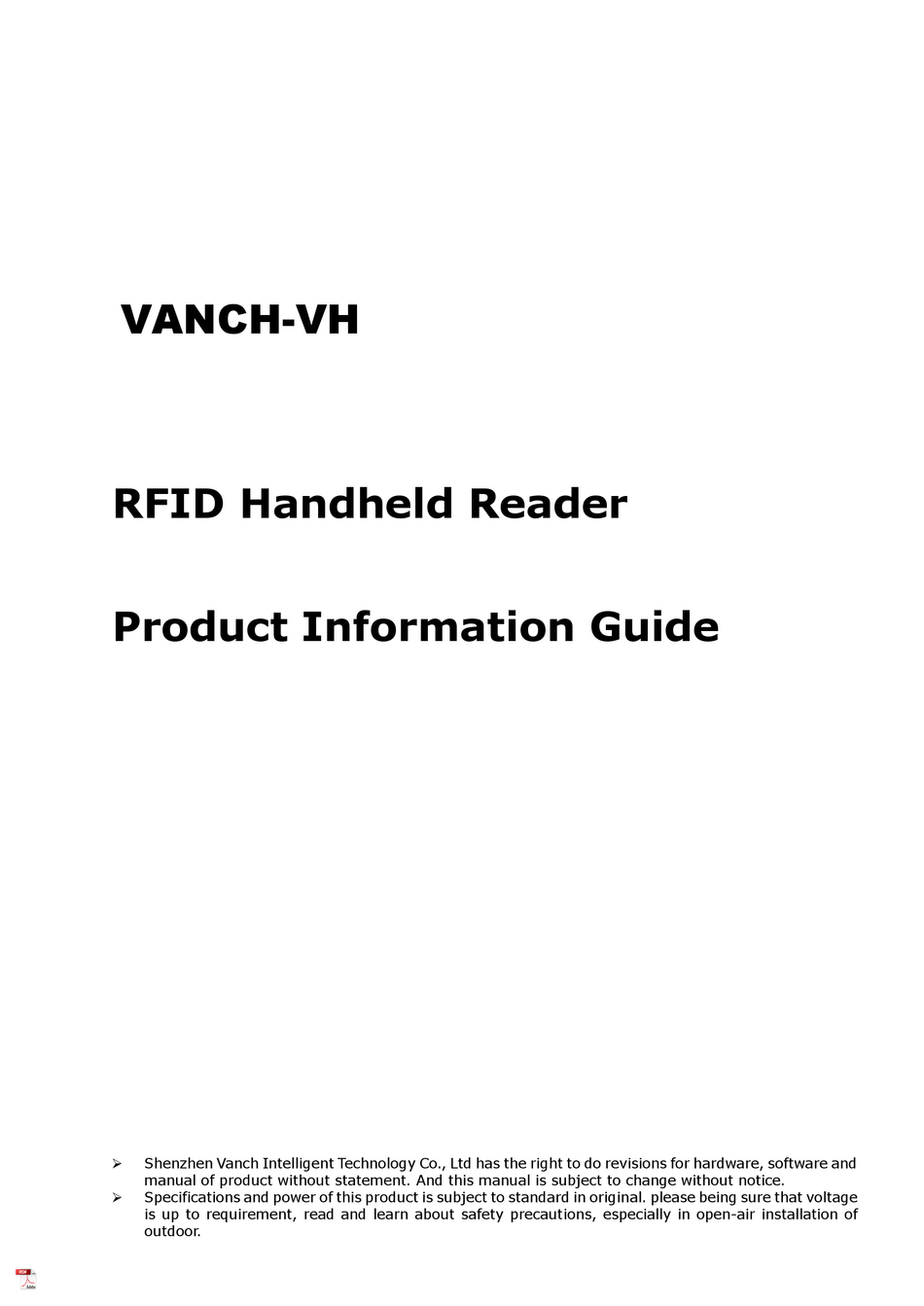

VANCH-VH

RFID Handheld Reader

Product Information Guide



Shenzhen Vanch Intelligent Technology Co., Ltd has the right to do revisions for hardware, software and

manual of product without statement. And this manual is subject to change without notice.



Specifications and power of this product is subject to standard in original. please being sure that voltage

is up to requirement, read and learn about safety precautions, especially in open-air installation of

outdoor.

Table of Contents

Need help?

Do you have a question about the VANCH-VH and is the answer not in the manual?

Questions and answers

Summary of Contents for VANCH VANCH-VH

Page 1 RFID Handheld Reader Product Information Guide  Shenzhen Vanch Intelligent Technology Co., Ltd has the right to do revisions for hardware, software and manual of product without statement. And this manual is subject to change without notice.  Specifications and power of this product is subject to standard in original. please being sure that voltage is up to requirement, read and learn about safety precautions, especially in open-air installation of outdoor.
Page 2: Table Of Contents
Content| VANCH-VH Product Information Content C O N T E N T ............2 1 P R O D U C T S U M M A R I Z E .
Page 3: R O D U C T S U M M A R I Z E
S h a p e a n d I n t e r f a c e The appearance of the VANCH-VH handheld is shown below. It is made of ABS housing and can be used indoors or outdoors in a well-ventilated environment with good dust and rain resistance.
Page 4 Product Summarize | VANCH-VH production information VANCH-VH Keys introduction as below: 1、 Indicator light: Working indicator (LED2): yellow, it will keep bright when power on, and keep twinkling when scan. Scan indicator (LED5): light green, it will keep twinkling when scan.
Page 5: P R O D U C T F E A T U R E S
P r o d u c t F e a t u r e s  Strong function with simple use VANCH-VH meet the easily use based on Ergonomics. It can detect ISO18000-6C tag, Flash storage, Bluetooth communication etc. Function. ...
Page 6: P A C K A G E C O N F I R M A T I O N
 High storage capacity VANCH-VH is built in 128M storage capacity, the data could be saved under out of power condition. 1 . 3 P a c k a g e c o n f i r m a t i o n Please check if the package is including components as below before using.
Page 7: 1.4 Performance
Product Summarize | VANCH-VH production information 1.4 Performance （1） Read/write tag type: Comply with ISO18000-6C protocol （2） RF ID Frequency: 902.5MHz ~ 927.5MHz BLE Frequency: 2402MHz ~ 2480MHz （3） Read range : >7m (tag performance independent) （4） Support real-time and offline data transmit （5）...
Page 8: S E R I N S T R U C T I O N S
Product Summarize | VANCH-VH production information 2 User instructions VANCH-VH button design completely follows the operating principle of the mobile phone keys, and the user can quickly get started with the device with a short time. Common operations are as follows:...
Page 9 Product Summarize | VANCH-VH production information Function Operations Move to “ volume adjust” menu, click” ok”enter to sub-menu, press” up” and” Volume adjust down” to set volume adjust, then press” OK” to confirm. Move to “ Read mode” menu, click” ok”...
Page 10 Product Summarize | VANCH-VH production information Function Operations RFID reader module type, RFID reader module version. Under detect type, move to” output type” menu, it’s ok to select the data output type. “data transmit” type, it need send detected tag data to PC by USB cable.
Page 11: B L U E T O O T H F A U L T
, USB flash mode then will enter into the USB flash mode. The PC will spot the VANCH-VH as USB flash device, user could download the file from” inventory” of VANCH-VH. This function used to upgrade the firmware DFU upgrade of VANCH-VH, please refer the”...
Page 12: O T H E R D E F A U L T
Product Summarize | VANCH-VH production information Fault Solutions please return the device to manufacture for repairing, this case will not happen normally. When connect the Bluetooth with Connect the Bluetooth fail password, the default password is 0000. When it dropped suddenly after...
Page 13 Product Summarize | VANCH-VH production information Reasons may cause the Fault Solutions fault reading range the reader Replace the reader Antenna broken antenna Parameter RF Power is Set the RF power too low Replace other tags for Tag broken testing...
Page 14: Support And Service
售后服务 | VH-88 产品信息指南 4 AFTER SERVICE Support and service Website: Please visit http://www.vanch.net to get the product VANCH-VH specification, optional accessories and necessary information Customer support: if you have questions about the specifications or the website information can’t answer all your questions, you can contact with our service staff.
Page 15: Warranty
Shenzhen VANCH Intelligent Technology or use the item which is not design for this product. Page 15 of 16...
Page 16: Service Line
The metaphor of sales of any goods or apply to special-purpose subject to this written warranty with one year period Shenzhen VANCH Intelligent Technology Co., Ltd will not be responsible for direct, indirect, special, accidental, or ensuing damage (including profits loss) in any cases.
Page 17 FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
