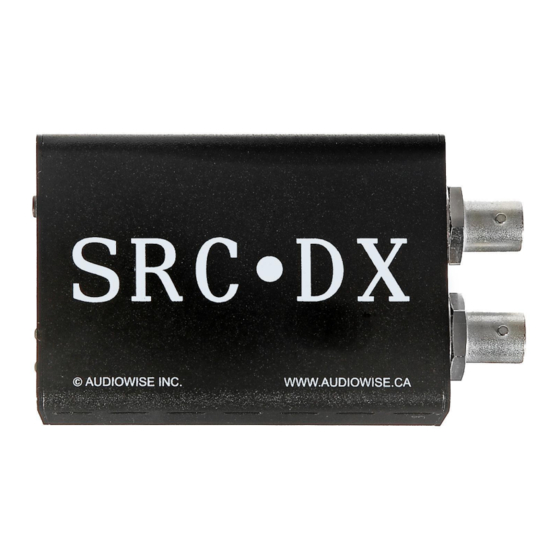

SRC•DX
USER'S GUIDE
© 2021 AudioWise Inc. All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the SRC-DX and is the answer not in the manual?

Questions and answers

Summary of Contents for AudioWise SRC-DX

  • Page 1 SRC•DX USER’S GUIDE © 2021 AudioWise Inc. All Rights Reserved...
  • Page 3 AudioWise assumes no responsibility for any inaccuracies that may be contained in this document. AudioWise also makes no commitment to update or keep current the information contained in this document. AudioWise reserves the right to make improvements to this document and/or product at any time and without notice.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the USB power supply. Please keep the following in mind as you unpack and install this equipment: ● Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. APPLICATION 3. PACKAGE CONTENTS 4. SYSTEM REQUIREMENTS 5. FEATURES 6. CONTROLS AND FUNCTIONS 7. CONNECTION DIAGRAM 8. SPECIFICATIONS...
  • Page 6: Introduction

    USB output of the source computer to the dual-coax input required by the compatible DAC. The benefit of using SRC-DX is the avoidance of internal RF noise generated from the DACs own USB receiver chip. SRC-DX’s dual-coax SPDIF interface is low noise, self-clocking and is arguably the best way to transfer high resolution audio.
  • Page 7: System Requirements

    ● Audio source component such as a PC/Laptop with an available USB port. ● S/PDIF Coax Input (single or dual) compatible DAC ○ See www.AudioWise.ca for a complete list ● Windows ○ Version 7, 8, 10, 11 ○ 32-bit & 64-bit for single-coax playback ○...
  • Page 8: Features

    5. FEATURES ● Converts USB 2.0 audio to dual-coax SPDIF ● Supports PCM 2-channels (stereo) up to 768kHz @ 24-bits ● Does not support DSD or DOP (DSD over PCM) ● Adjustable S/PDIF signal level ● Plug and play operation (Windows, macOS, Linux) ●...
  • Page 9: Controls And Functions

    6. CONTROLS AND FUNCTIONS SPDIF LEVEL: Push-button switch to select STD LEVEL or ① HIGH LEVEL SPDIF output. For Chord Electronics DACs this should be set to HIGH LEVEL, otherwise use STD LEVEL. USB IN: Connect to a compatible USB source ②...
  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM A. Connect the USB SOURCE (PC/Laptop, etc.) with a USB 2.0 certified cable. Connect the COMPATIBLE DAC via BNC terminated RG59 or RG179 coaxial cable. B. Connect using an intermediate USB Fibre Extender. C. Connect using a Fibre Networking-to-USB (OpticalRendu)
  • Page 11: Specifications

    8. SPECIFICATIONS Input Ports 1 x USB (Type B) Output Ports 2 x Coaxial (BNC) Human Body Model: ESD Protection ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions 72mm x 50mm x 23mm [Case Only] Weight 300g Chassis Material Aluminum Operating Temperature 0°C-40°C / 32°F-104°F Storage Temperature -20°C-60°C / -4°F-140°F...
