Summary of Contents for Cliq AS-1001D

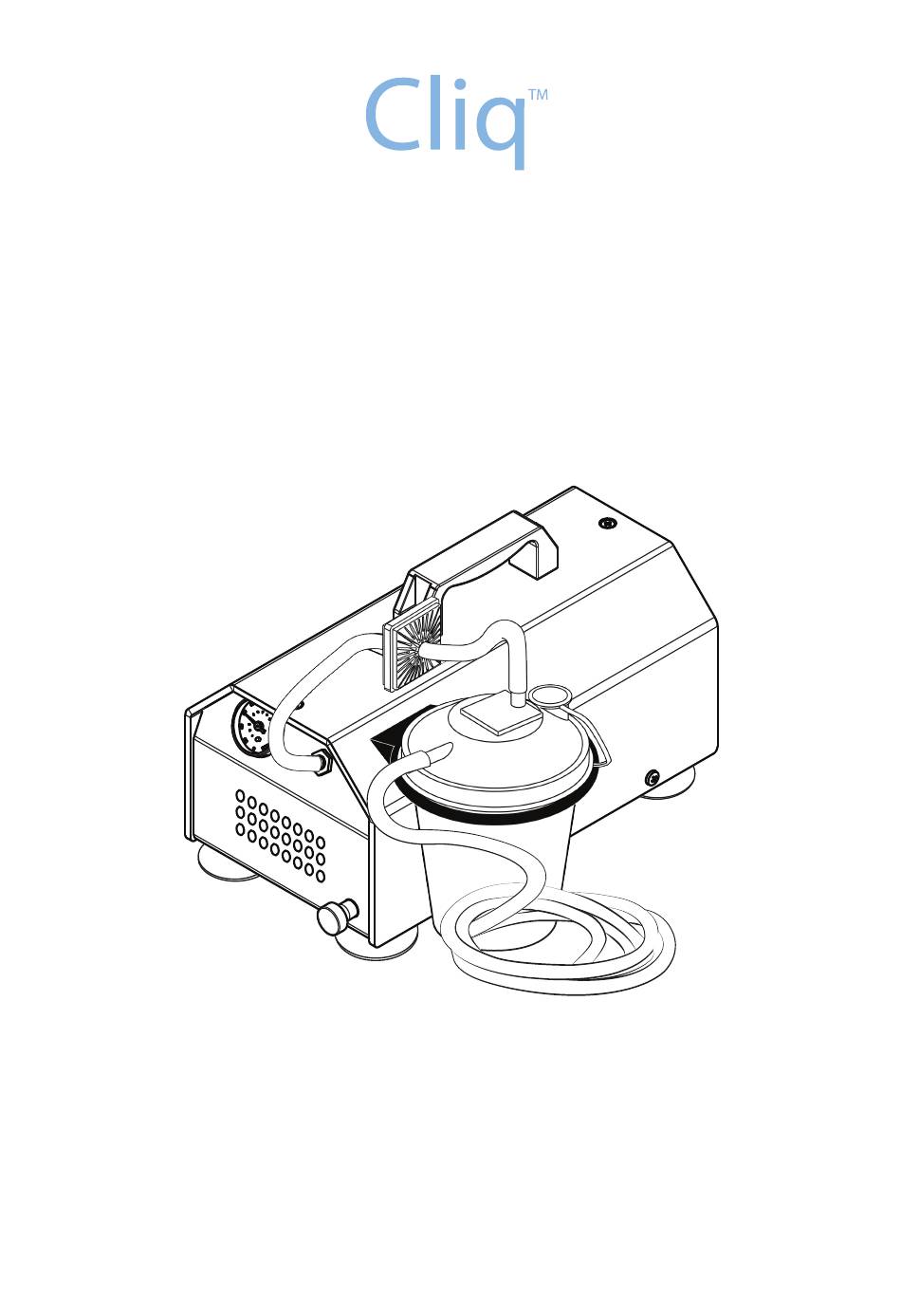

- Page 1 AS-1001D Suction Pump Instructions for Use Please read this manual carefully before using this device. Keep this manual for future reference. Cliq_AS-1001D Manual (230V50Hz_20171124.3) 3510406D...
-
Page 2: Table Of Contents
Table of Content Symbol Definitions ..................P. 3 Important Safety Information ..............P. 4 Product Introduction ..................P. 5 Part List ....................... P. 5 Accessories / Replacement Parts ............... P. 6 Operation ......................P. 7 Cleaning ......................P. 8 Maintenance & Repair ................... P. -
Page 3: Symbol Definitions
Symbol Definitions Manufacturer Disposal of Electrical & Electronic Equipment (WEEE): This device contains electrical and/or electronic equipment that must be recycled and should be handed over to a suitable collection point for proper disposal. Serial number. Class II equipment Protection against electrical shock; type of applied part, body floating. Solid particle protection >... -
Page 4: Important Safety Information
Use only after consulting with your doctor and receiving proper training from a trained healthcare professional. • Intended Use: The AS-1001D Suction Pump’s intended use is to remove bodily fluids from a patient’s airway or respiratory system. Using this device for any purpose other than the stated intended use may result in injury to the patient or operator. -
Page 5: Product Introduction
The device must only be used on the order of a physician. If practiced outside of the hospital setting, the care giver must be trained by a certified healthcare professional and the training must be recorded and documented. The AS-1001D suction pump consists of an on/off... -
Page 6: Accessories / Replacement Parts
Accessories / Replacement Parts The following items can be purchased as a replacement for your machine. Please contact our distributors or authorized service centers for inquiries. Item Part No. Specification Collection container 3304025C ø 150 x 185 (H) mm / 800ml Must be replaced if damaged. -
Page 7: Operation
"FLUID SIDE" pointed towards the collection container. Disposable suction catheter (not included with AS-1001D) Connect to suction catheter Connect one end of suction tubing to the “patient port” on the collection container lid. Check all connections and make sure they are secure and tight. A poor connection could result in an air leak that diminishes pump performance. -
Page 8: Cleaning
Warranty Length The AS-1001D suction pump is warranted to be free from defective workmanship and materials for one year from the date of purchase. Within the warranty period, any defective part(s) will be repaired or replaced at manufacturer’s option. Manufacturer is not liable, and warranty is voided, for any damage or consequential damage resulting from incorrect operation of the unit, inappropriate usage of the unit, disassembly of the unit, or use by unauthorized or untrained persons. -
Page 9: Troubleshooting
• General transportation of the unit should correspond to the conditions outlined in the 'Product Introduction' section of this manual. • In the event that the AS-1001D suction pump needs to be sent to an authorized service center for inspection and repair, do not package the collection container, suction tubing, inline filter, intermediate tubing, collection container coaster, or any single-use accessories (such as a... -
Page 10: Guidance And Manufacturer's Declaration
ME equipment The AS-1001D suction pump is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the AS-1001D suction pump can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the AS-1001D suction pump recommended below, according to the maximum output power of the communications equipment. - Page 11 Declaration – electromagnetic immunity The AS-1001D suction pump is intended for use in the electromagnetic environment specified below. The customer or the user of the AS-1001D suction pump should assure that it is used in such an environment. Immunity test...
- Page 12 Authorized Service Center Contact Infomation: ANEST IWATA SPARMAX Co., Ltd. Rm 4B-02/03, Taipei World Trade Center 4th Fl. No. 5 Hsinyi Rd. Sec. 5 Taipei, Taiwan 11011 www.cliqmedical.com info@cliqmedical.com Tel: +886.2.2345.1868 4B-03 Taipei World Trade Center 4F No.5 Sec.5 HsinYi Rd. Taipei Taiwan 11011 Copyright ©...
