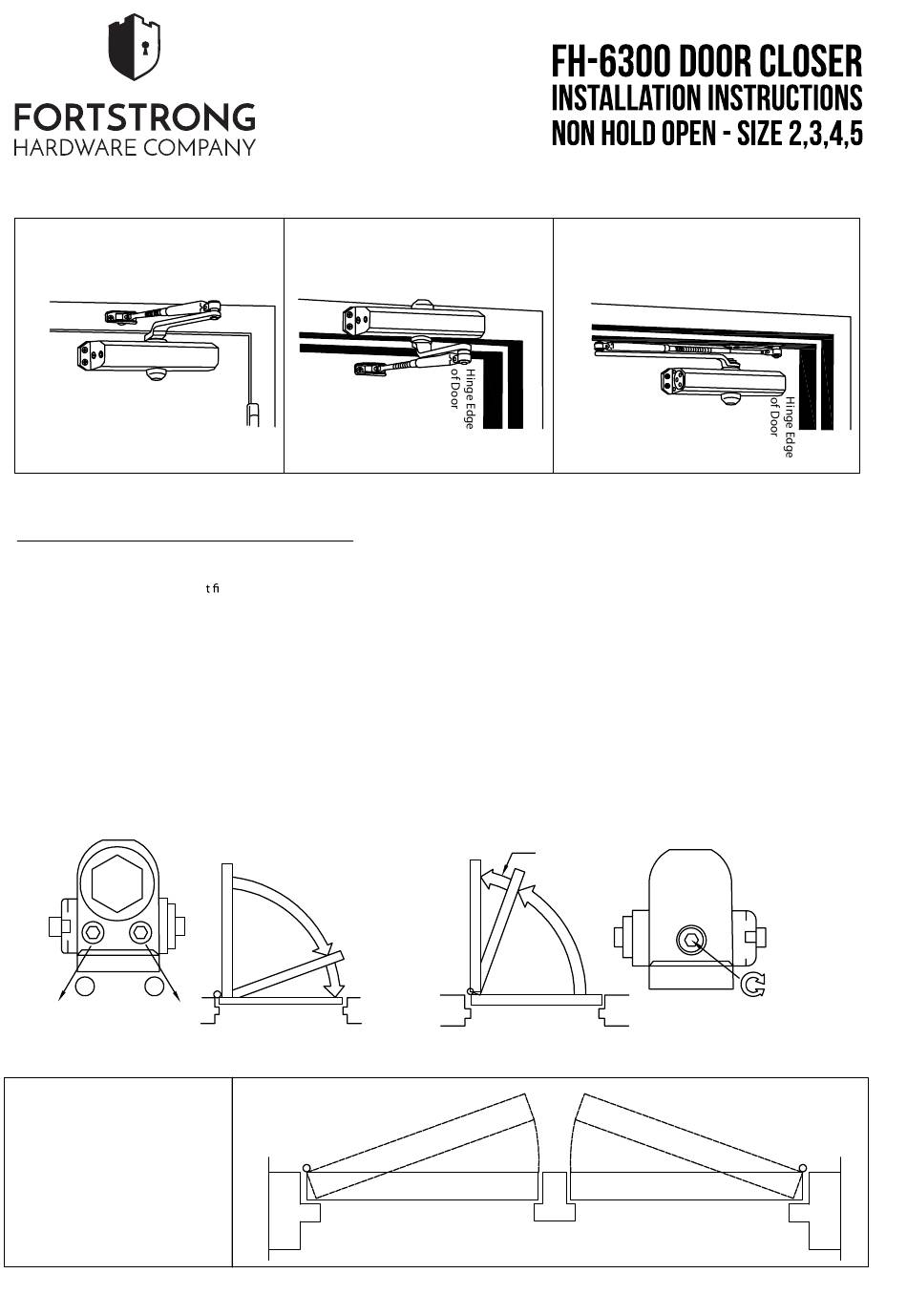

Regular Arm Installation
Closer installs on PULL/HINGE
side of door
illustrated
Non Hold Open Arm
Left Hand Door-LH
Right Hand Reverse -RHR
See Page 2
DOOR CLOSER ADJUSTMENTS
NOTE ： Closing arcs("CLOSE"and"LATCH") are controlled by two(2)separate speed adjusting valves.
Adjust the CLOSING speed a
1. "CLOSING"speed adjustment is accomplished by full rotations of the speed adjusting valve.
-Turn the speed adjusting valve CLOCKWISE for a SLOWER closing speed.
-Turn the speed adjusting valve COUNTER-CLOCKWISE for a FASTER closing speed.
2 "LATCH" speed adjustment is accomplished by full rotations of the speed adjusting valve.
-Turn the speed adjusting screw CLOCKWISE for a SLOWER closing speed.
-Turn the speed adjusting screw COUNTER-CLOCKWISE for a FASTER closing speed.
BACKCHECK ADJUSTMENT
NOTE: These instructions apply only to closers equipped with backcheck action.
To increase backcheck intensity, turn "BC" valve clockwise.
To decrease backcheck intensity , turn"BC" Valve counter-clockwise.
2
1
LATCH
CLOSING
VALVE
VALVE
CHART TO
DETERMINE HAND
OF DOOR
Top Jamb Installation
Closer Installs on Frame on
PUSH/STOP side of door.
illustrated
Non Hold Open Arm
Right Hand Door-RH
Left Hand Reverse -LHR
See Page 3
rst and then adjust the LATCHING speed.
CLOSING CYCLE
CLOSING SPEED
LATCHING
SPEED
P
l u
S l
d i
e
f o
D
o
r o
P
THIS IS A LEFT HAND DOOR
OPENING CYCLE
Backcheck
Range
s u
h
S
d i
e
f o
D
o
r o
Parallel Arm Installation
Closer installs on PUSH/STOP
side of door. * Optional
illustrated
Non Hold Open Arm
Right Hand Door-RH
Left Hand Reverse -LHR
See Page 4
BC
Never close This
valve completely
P
s u
h
S
d i
e
f o
D
o
THIS IS A RIGHT HAND DOOR
INCREASE
DECREASE
P
l u
S l
d i
e
f o
D
o
r o
r o
PAGE 1
Advertisement
Summary of Contents for FORSTRONG FH-6300
- Page 1 Regular Arm Installation Parallel Arm Installation Top Jamb Installation Closer installs on PULL/HINGE Closer installs on PUSH/STOP Closer Installs on Frame on side of door side of door. * Optional PUSH/STOP side of door. illustrated illustrated illustrated Non Hold Open Arm Non Hold Open Arm Non Hold Open Arm Left Hand Door-LH...
- Page 2 REGULAR ARM (PULL SIDE) Mounting 6-1/2 1-3/4(44.4mm) 1-3/4(44.4mm) (152mm) (165.1mm) 1(25.4mm) 1(25.4mm) 1-1/4 (32 mm) 1-1/4 (32 mm) 3/4(19mm) 3/4(19mm) 9-1/16(230mm) 8-3/16(208mm) Size 2 ,3 Size 4,5 Hinge Hinge Pivot Pivot Right hand door shown DIM.A DIM.A Left hand door opposite OPENING Size 2&3 Size 4&5...
- Page 3 TOP JAMB (PUSH SIDE) Mounting 9-1/16(230mm) 8-3/16(208mm) 3/4(19mm) 3/4(19mm) 1-3/4(44.4mm) 1-3/4(44.4mm) 1/2(12.7mm) 1/2(12.7mm) 1-3/4(44.4mm) 1-3/4(44.4mm) 6-1/14 (152 mm) (158.7mm) Size 2 ,3 Size 4,5 Hinge Hinge Pivot Pivot Left hand door shown DIM.A DIM.A Right hand door opposite OPENING Size 4&5 Size 2&3 Dimensions are in inches(mm) 6(152 mm)
- Page 4 PARALLEL ARM (PUSH SIDE) Mounting 2-3/4(69.8mm) 2-3/4(69.8mm) 2(50.8mm) 2(50.8mm) 3/8(9.5mm) 3/8(9.5mm) 3/8(9.5mm) 3/8(9.5mm) 5/16(8mm) 5/16(8mm) 7/16(11mm) 7/16(11mm) 3 (76mm) 3-3/8(85.7mm) 3/4(19mm) 3/4(19mm) 9-1/16(230mm) Size 4,5 8-3/16(208mm) Size 2,3 Hinge Pivot Left hand door shown Right hand door opposite DIM.A DIM.B DIM.A DIM.B OPENING...
