Team Plus S1 R1/R6 - assembly instructions
List of parts:
- 5 castors
- 1 base
- 1 gas lift
- 1 backrest
- 1 seat with S1 mechanism
- 2 armrests R1/R6 (left/right)
- 4 screws M6x25
- 2 screws M6x20
- 3 M8 washers for backrest assembly
- 4 M8 pads for R1 armrest version
- 3 screws M8x20
- Allen wrench for screws (shape "L")
TEAM PLUS CHAIR OPERATION
C
A
D
NOTES!
The chair has been granted the Certificate of Durability, Stability and Safety of Use issued by PUR "Remodex"
Furniture Industry Research and Implementation Facility.
GROSPOL Jędruch Sp.J.
Ostródzka 53
03-289 Warsaw
www.grospol.pl
A - Seat height adjustment - The upward
movement of the handle activates the
possibility of changing the height of the seat.
B - Adjustment of the backrest angle in
relation to the seat - if the lever is facing
upwards, the backrest follows the user's
movement in the chair. Pointing the lever
downwards will block the selected position of
the backrest tilt in relation to the seat.
C - Adjustment of armrests (R1/R6):
R6: while sitting in a chair after pressing the
button on the outside of the armrest, you can
change the height of the forearm support.
R1: armrests, in addition to height adjustment,
B
have a front-back adjustable overlay and a
possibility to change of position angle.
D - Backrest resistance force adjustment -
a knob for adjusting the backrest resistance
force during tilting. The force is adjusted to the
user's weight.

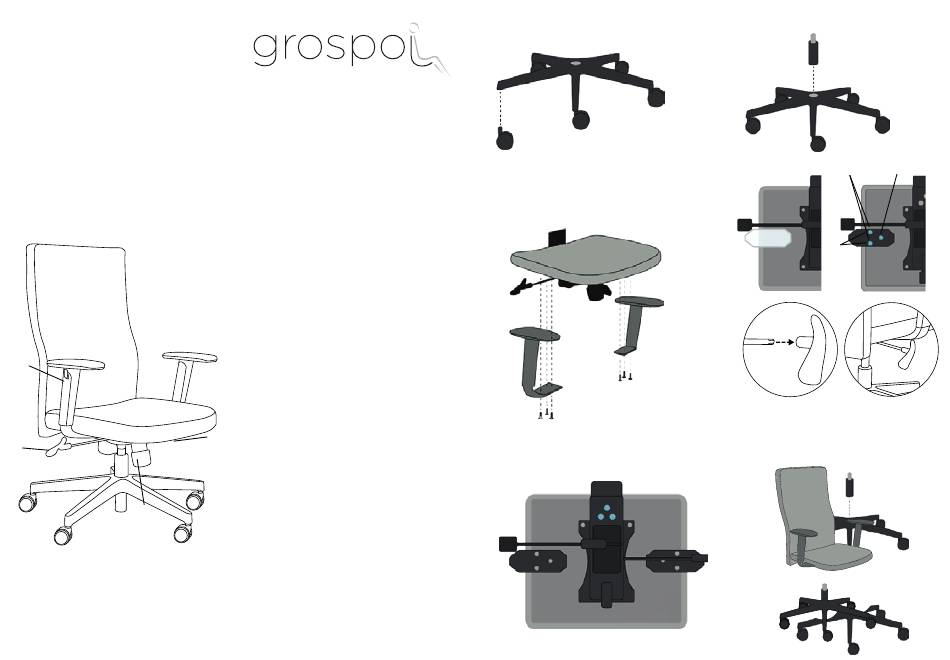

ASSEMBLY
1. Push the castors into the base of the chair.
3. Screw the armrests using two M6x25
screws and one M6x20 screw for each
armrest. For R1 armrests, we use round
washers in addition to the two external screws
of both armrests.
4. Screw the backrest to the mechanism already
in the seat using three M8x20 screws and three
M8 washers.
2. Insert the gas lift into the hole in the chair
base.
2x M6x25 1x M6x20
screws screws
M8 washers
for R1 version
5. The seat with the backrest and armrests
screwed on is placed on an actuator, which is
already in the base equipped with castors.
