Summary of Contents for Ferrules Direct FD120K

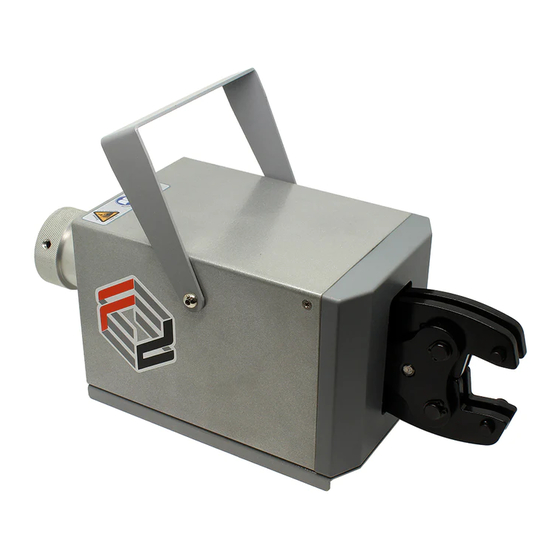

- Page 1 FD120K Pneumatic Crimping Press Operating Manual...
-
Page 2: Adjustment Knob

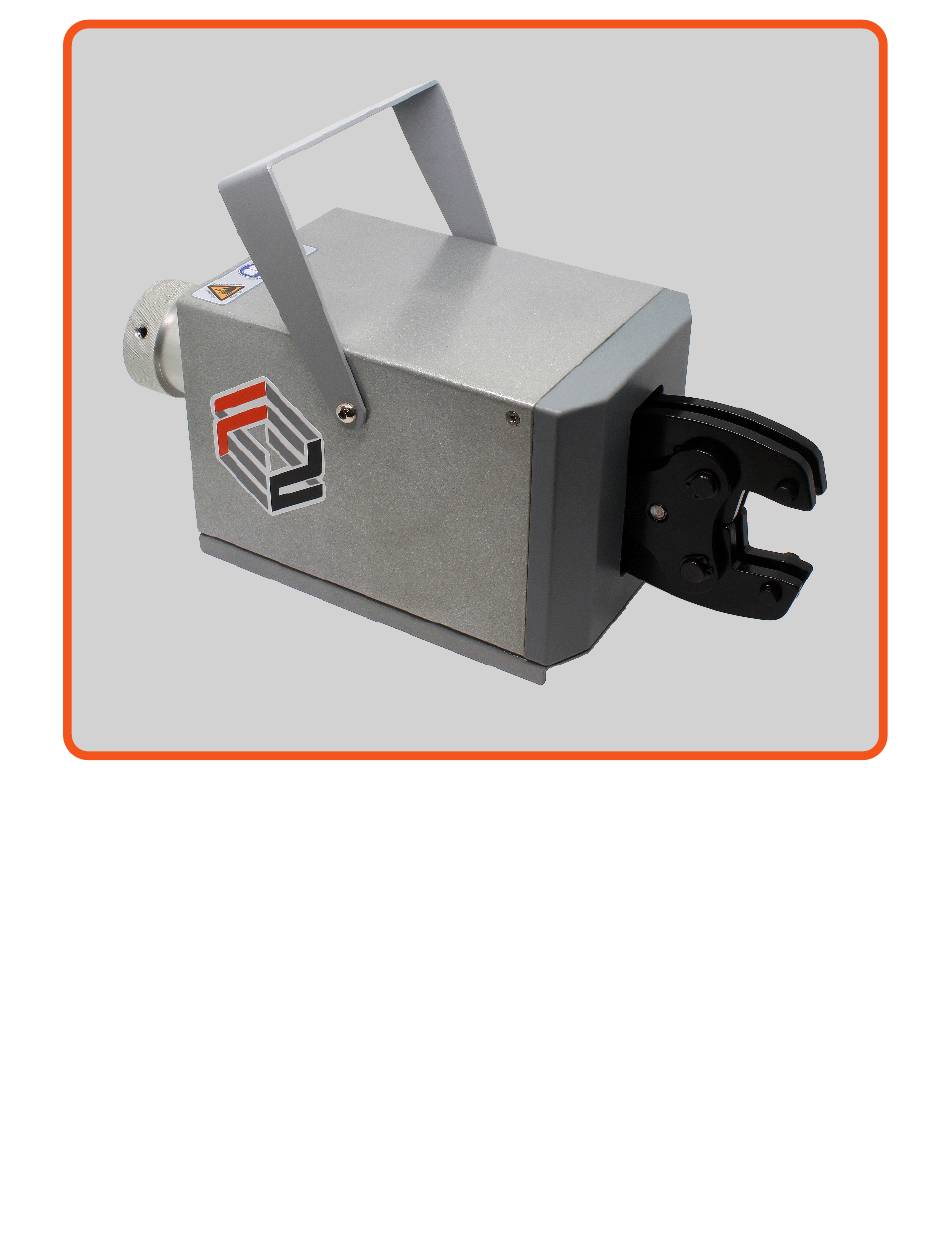

Adjustment knob Knob used to change the crimping pressure allowing for a larger ferrule range Port A (Air) 8mm port connecting the FD120K to the air source Port B (Foot Pedal) 8mm port connecting the FD120K to the foot pedal... - Page 3 • Heavy Duty: A Veritable work horse, the FD120K press is ideal for crimping large quantities of connectors • Light Weight: Weighing only 14.3 lbs (6.5kg), the FD120K crimping press can easily be transported from one location to another.
- Page 4 FD120K1F Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Frontal Range: .....24-4AWG (Single/Uninsulated) 2X22-2X8AWG (Twin) FD120K2F Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Frontal Range: ..........2AWG-1/0 (Single/Uninsulated) FD120K3F Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Frontal Range: ..........3/0-300MCM (Single/Uninsulated)
- Page 5 FD120K1L Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Lateral Range: .....24-4AWG (Single/Uninsulated) 2X22-2X8AWG (Twin) FD120K2L Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Lateral Range: ..........2AWG-1/0 (Single/Uninsulated) FD120K3L Suitable for: ........Wire Ferrules Crimping Profile: ........Square Crimping Orientation: ......Lateral Range: ..........3/0-300MCM (Single/Uninsulated)
- Page 6 Replace bolts securing the compatible die set Insert air tubing in Port A and B, connecting the air source and foot pedal The FD120K is now ready to use, while crimping keep your hands clear of the crimping head to prevent personal injury...
- Page 7 • NEVER attempt to crimp wires that turn off the air compressor. are plugged into an outlet and • Store the FD120K in a dry, cool place and cover it with a suitable blanket to electrically charged. avoid dust and possible rust spot.
