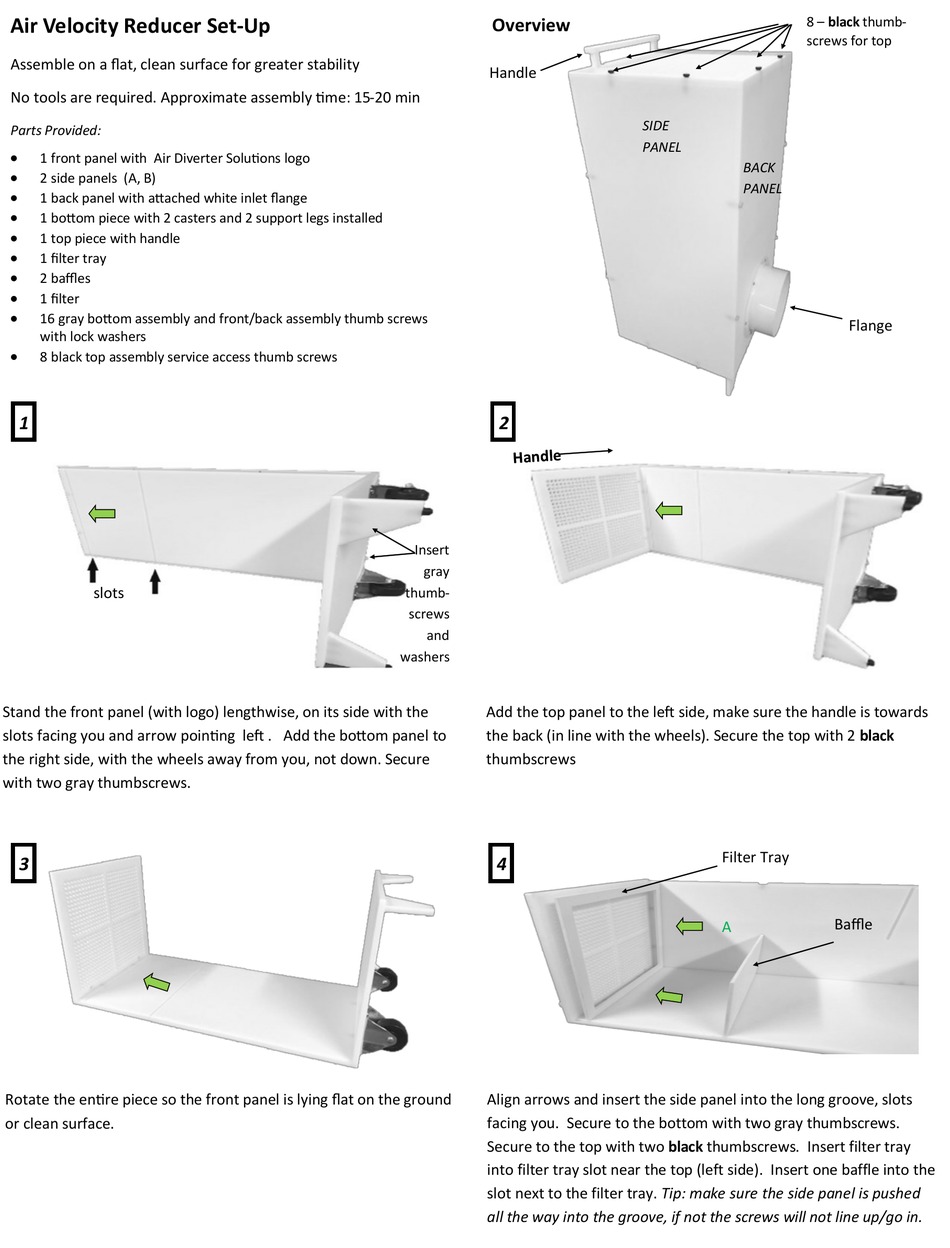

Air Velocity Reducer Set-Up
Assemble on a flat, clean surface for greater stability
No tools are required. Approximate assembly time: 15-20 min

Parts Provided:


1 front panel with Air Diverter Solutions logo

2 side panels (A, B)

1 back panel with attached white inlet flange

1 bottom piece with 2 casters and 2 support legs installed

1 top piece with handle

1 filter tray

2 baffles

1 filter

16 gray bottom assembly and front/back assembly thumb screws
with lock washers

8 black top assembly service access thumb screws
1
slots
Stand the front panel (with logo) lengthwise, on its side with the
slots facing you and arrow pointing left . Add the bottom panel to
the right side, with the wheels away from you, not down. Secure
with two gray thumbscrews.
3
Rotate the entire piece so the front panel is lying flat on the ground
or clean surface.

Overview

Handle
2
Insert
gray
thumb-
screws
and
washers
Add the top panel to the left side, make sure the handle is towards
the back (in line with the wheels). Secure the top with 2 black
thumbscrews
4
Align arrows and insert the side panel into the long groove, slots
facing you. Secure to the bottom with two gray thumbscrews.
Secure to the top with two black thumbscrews. Insert filter tray
into filter tray slot near the top (left side). Insert one baffle into the
slot next to the filter tray. Tip: make sure the side panel is pushed
all the way into the groove, if not the screws will not line up/go in.
8 – black thumb-
screws for top
SIDE
PANEL
BACK
PANEL
Filter Tray
A
Flange
Baffle
