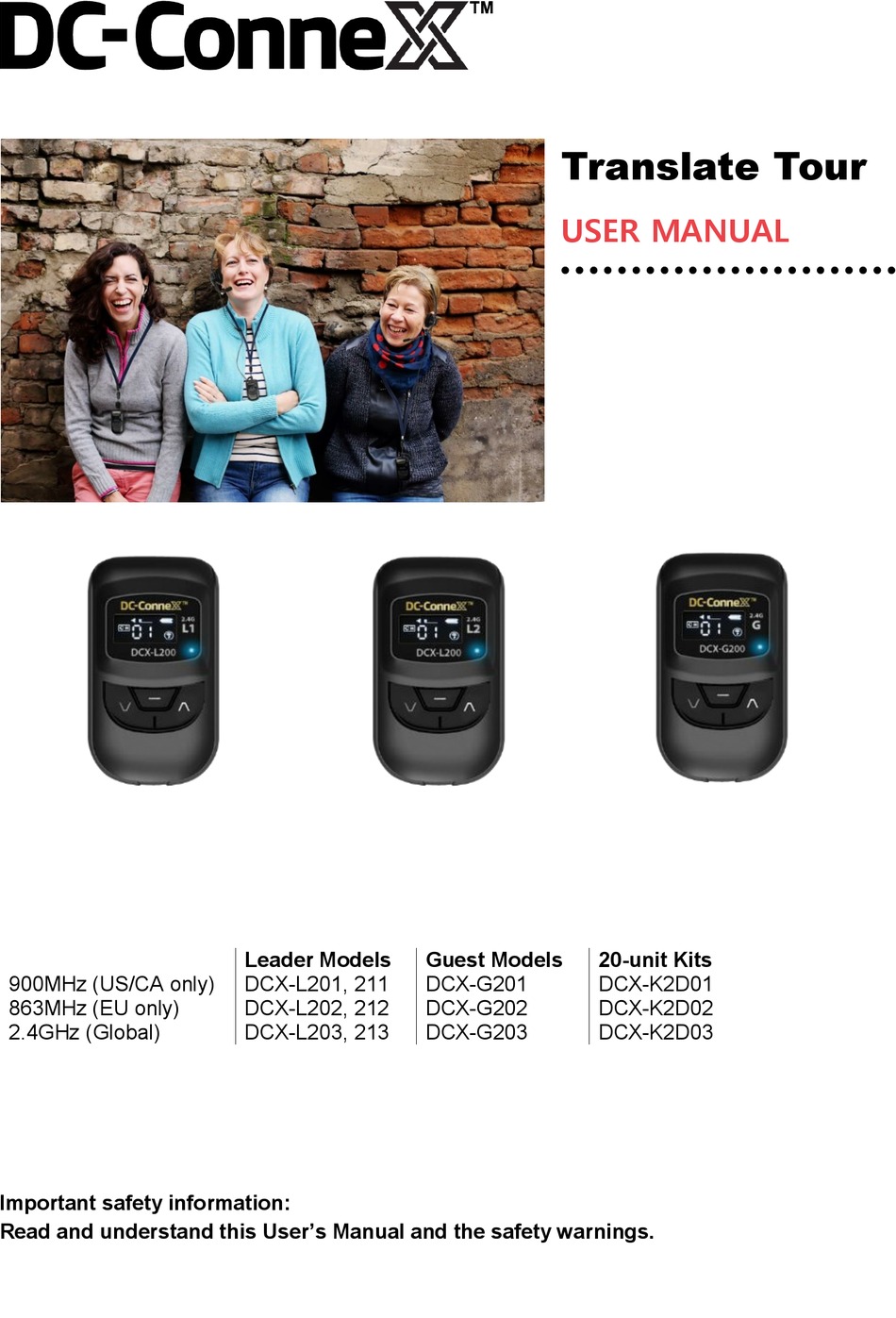

  • Page 1                         Leader Models Guest Models 20-unit Kits 900MHz (US/CA only) DCX-L201, 211 DCX-G201 DCX-K2D01 863MHz (EU only) DCX-L202, 212...

  • Page 2: Table Of Contents

    Contents Introduction ............................ 3 Key Features ....................3 In the Box ....................4 Optional Accessories: .................. 5 Unit controls ....................6 Operations ............................8 Unpack and prepare your device for setup ..........8 Set-up ......................10 Mode & Mute On/Off .................. 11 Audio Alerts ....................

  • Page 3: Introduction

    Introduction ™ DC-ConneX Translate Tour creates the most inclusive group experience across multiple languages and social distances. Connect 2 Leaders to a single group or 1 Leader and 2 Translators to 3 different groups. This solution is ideal for translators or multilingual tours (up to 3 languages).

  • Page 4: In The Box

                            Translate 20 Unit Kit with Tour Leader Guests Case Models DCX-L201,11 DCX-G201,11 DCX-K1D01 [US/CA] [US/CA] [US/CA] DCX-K1D02 [EU] DCX-L202,12 [EU] DCX-G202,12 [EU]...

  • Page 5: Optional Accessories

    Optional Accessories                         Microphone DCX-PM-01 Standalone Microphone Headphone / Earphone / Audio DCX-HSBM-01 Single Ear Headset with Boom Mic DCX-HS-01 Single Ear Headset (No Microphone) DCX-ERIM-01...

  • Page 6: Unit Controls

    Unit Controls                         DCX-L200 (Leader 1, L1) DCX-L210 (Leader 2, L2) DCX-G200 (Guest) P a g e...
  • Page 7 POWER BUTTON Long press the Power button to turn the unit On/Off. USB CONNECTION USB-C port for battery charging. Units will be usable when charging via USB port. CHARGING CONTACT Contact points for battery charging in the optional charging stand or case. Units will not be usable when charging in stand or case.

  • Page 8: Operations

    Operations The Translate Tour solution can support two channels of communication simultaneously. This feature can be used to support numerous multi-speaker and multi-group applications. The illustration below shows 3 typical use cases. Case 1 is the simplest where 1 or 2 leaders use L1 units to speak simultaneously to a single group.
  • Page 9 Remove the protective film over the LCD display as shown. Install the Included Lanyard (optional) First remove the battery cover. Then, follow the pictorial guide below to attach the lanyard. P a g e...

  • Page 10: Set-Up

    Set-up                         STEP 1: Plug the Headset or Earphone into the units DCX-L200 L1: Plug the microphone into the unit where the microphone icon appears.

  • Page 11: Mode & Mute On/Off

    Recommendations for use: Sidetone Fully charge each unit prior to use. Sidetone is typically a feature The earphones have an inline microphone and volume found in higher end audio control. Set the earphone volume at the highest level communication systems and (move slide forward to the + symbol).

  • Page 12: Audio Alerts

    Audio Alerts                         - Low battery: o Single high pitch tone followed quickly by 2 lower frequency tones which recurs every 2 minutes until the battery is recharged or has insufficient charge remaining.

  • Page 13: Settings And Functions

    Note: Two speakers may concurrently speak to a single group using L1 units (Case 1) on a single Channel . In this case each L1 unit must have a unique ID. The ID may be changed under Settings (L1 units only). Settings and Functions ...

  • Page 14: Channel & Id Selection

    Channel & ID Selection                         Channel and ID are set as shown in the case examples shown below. If two or more groups are operating with the same Channel number in the same geographical area there will be interference between the groups.

  • Page 15: Sidetone Level Selection (L1 & L2 Only)

     You may save changes and exit the setting mode with a Long press of the buttons together. Your changes will be saved.  L2: The first Channel is for the Master . This is the audio receive channel.  Quick press the buttons on the front of the device to set the desired number for Master...

  • Page 16: Microphone (Mic) Gain Level Selection (L1 & L2 Only)

    * DCX-L200, L210 (L1 and L2 Leaders)  You may save changes and exit the setting mode with a long press of the buttons together. Your changes will be saved. Microphone (Mic) Gain Level Selection (L1 & L2 only)                         Mic gain (loudness) level can be adjusted from 1 to 8 independent of the volume control.

  • Page 17: Line-In On Dcx-L200, L210

    Line-in on DCX-L200 (L1), L210 (L2)                         The Translate Tour provides the ability to provide background sound to the Tour Guide operation. This can be music or any audio file.

  • Page 18: Specifications

    Note: 1. Specifications subject to change without notice. 2. Audio devices have been tuned to provide the optimal user experience. Other commercial off the shelf earphones, headphones etc. may be used but are not guaranteed by DC-ConneX 18 | P a g e...

  • Page 19: Trouble Shooting Guide

    Trouble Shooting Guide Problem Cause Solution Power does not turn on. Empty or low battery. Charge or replace the battery. Turns off after turning on. Low battery. Display will show “Lb” Charge or replace the battery. when trying to power on, but then shutoff “OF”.

  • Page 20: Safety Warnings & Recycling Instructions

    Problem Cause Solution 863MHz units have a very narrow If using 863MHz units be sure the L2 frequency band in which to operate unit receive and transmit channels because of the EU/UK frequency are set at least 3 steps. allocations. In some situations the transmit and receive channels can interfere with each other.

  • Page 21: Cleaning

    Cleaning                         Only clean the product when it is powered OFF and not connected to a power supply system. Clean with a dry cloth or commercially available screen cleaners.

  • Page 22: Compliance Notices

    European Union and European Fair Trade Association (EFTA) Regulatory Compliance DC-ConneX™, a brand owned by David Clark Company, hereby declares that this product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU and all other applicable EU directive requirements.
  • Page 23 Warranty Periods This limited warranty shall survive for the following periods: (a) one year for powered units and (b) ninety days for accessories. The warranty periods begin on the date of your original purchase from the Sites. The warranty period for any repaired or replaced Products ends on the date your warranty from your original purchase ends.

  • Page 24: Addendum 1 - Accessory Details & Ordering Guide

    Addendum 1 - Accessory Details & Ordering Guide Accessory Ordering Number Description DCX-ERIM-01 50010G-01 Earphone w/ inline microphone DCX-ER-01 50011G-01 Earphone (no microphone) DCX-HSBM-01 50020G-01 Single ear headset with boom Mic DCX-HS-01 50022G-01 Single ear headset (no microphone) DCX-UC-1 50030P-01 USB Charging Cable DCX-LC-01 50031P-01...
